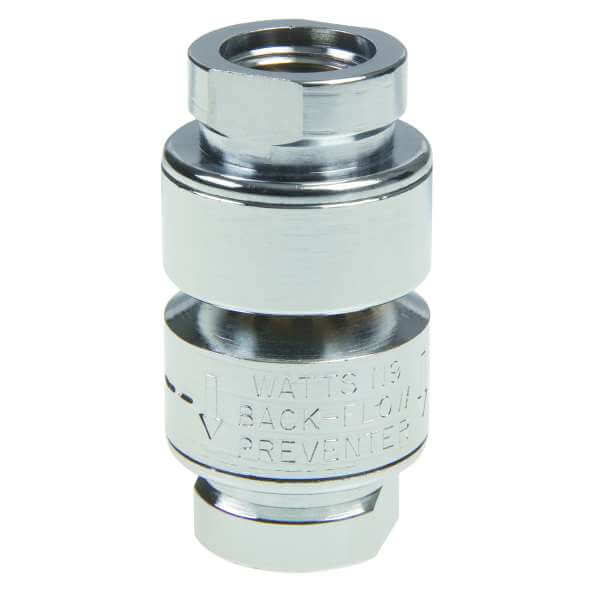

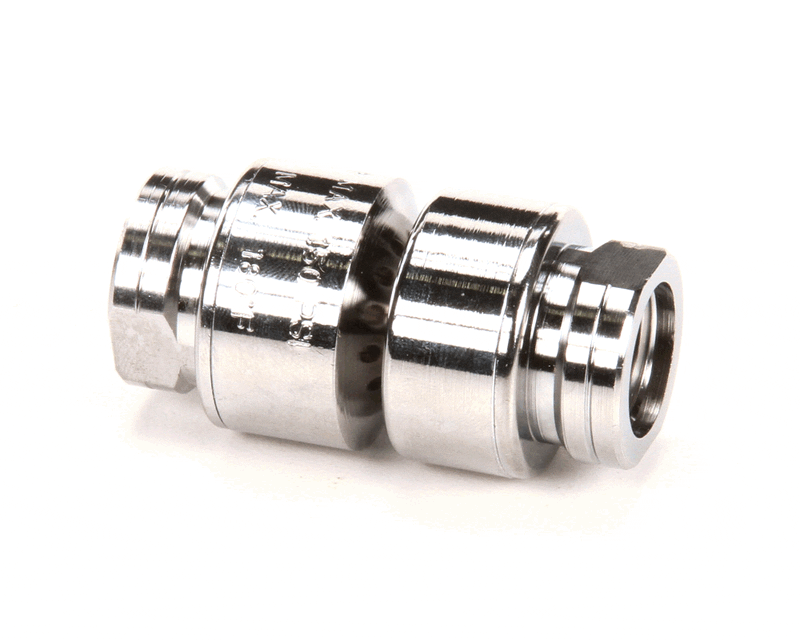

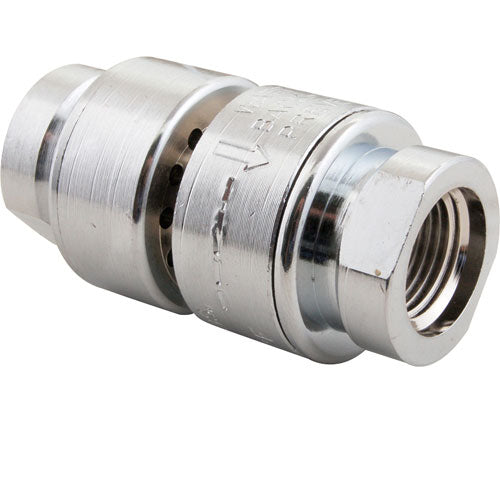

T&S Brass B-0970-FE Vacuum Breaker, 3/8NPT Inlet & Outlet, Dual-Check DuCV, Designed for Continuous Pressure

Product Description

The T&S Brass B-0970-FE is a vacuum breaker designed for applications with continuous pressure. It has a three-eighth inch NPT inlet and outlet ensuring a secure connection in plumbing systems. This model features a dual-check design with an intermediate vent, which effectively prevents back siphonage and back-flow, keeping your water supply safe.

• Lead-free construction for safe water supply.
• In-line design suitable for continuous pressure applications.
• Certified to ASME and CSA standards for reliability.

Product Highlights

This vacuum breaker is ideal for both commercial and residential plumbing systems where continuous pressure is a requirement. It is made from polished chrome plated brass, ensuring durability and resistance to corrosion.

Product Information

Standard Information

• Brand: T&S Brass
• MPN: B-0970-FE

Technical Specifications

• Weight: 0.455 lbs
• Length: 5.19 inches
• Width: 1 inch
• Height: 9.75 inches
• Connection Type: Female Pipe Thread
• Max Pressure: 125 psi
• Min Pressure: 20 psi
• Max Temperature: 140 F
• Min Temperature: 40 F
