Product Description

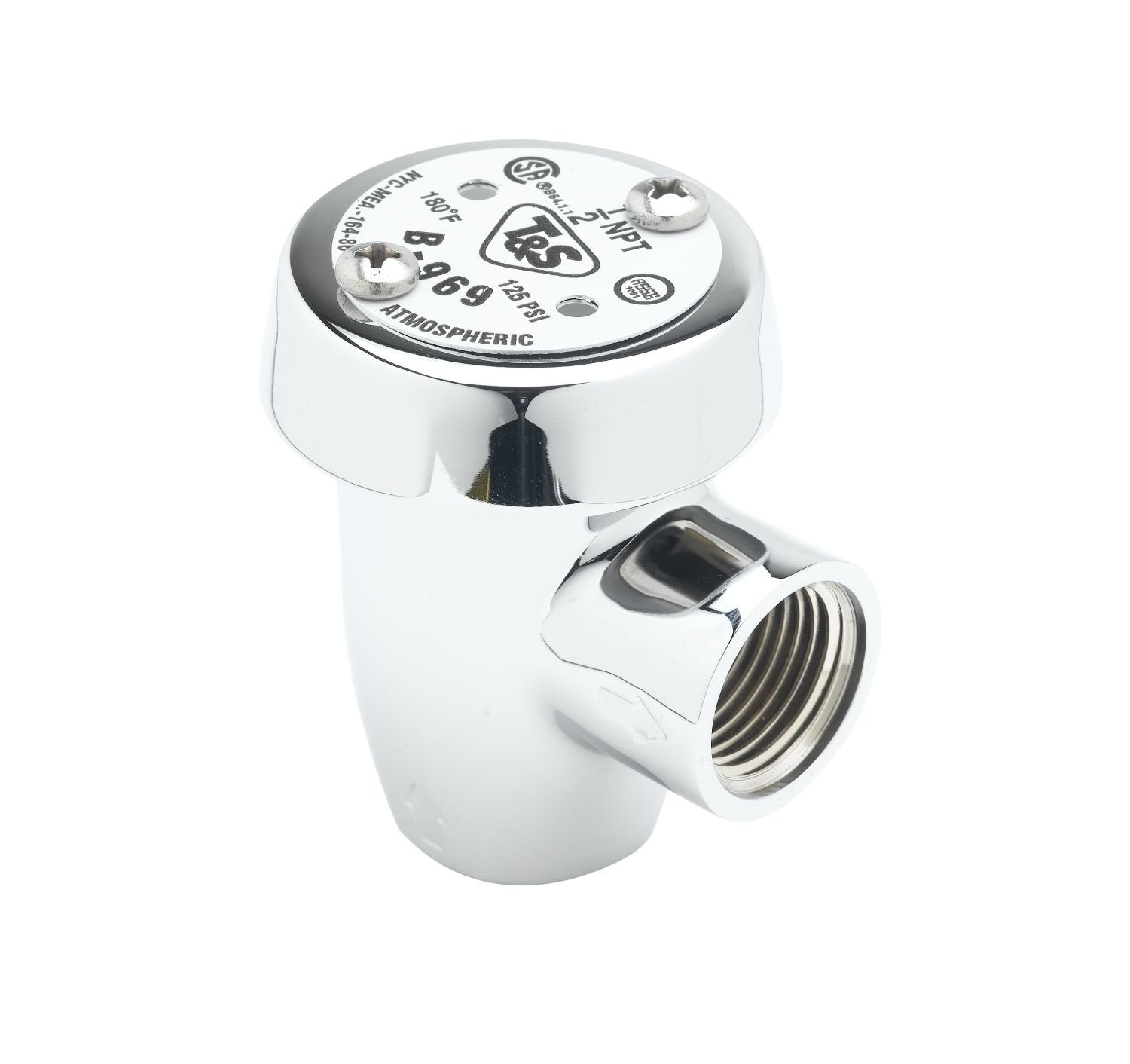

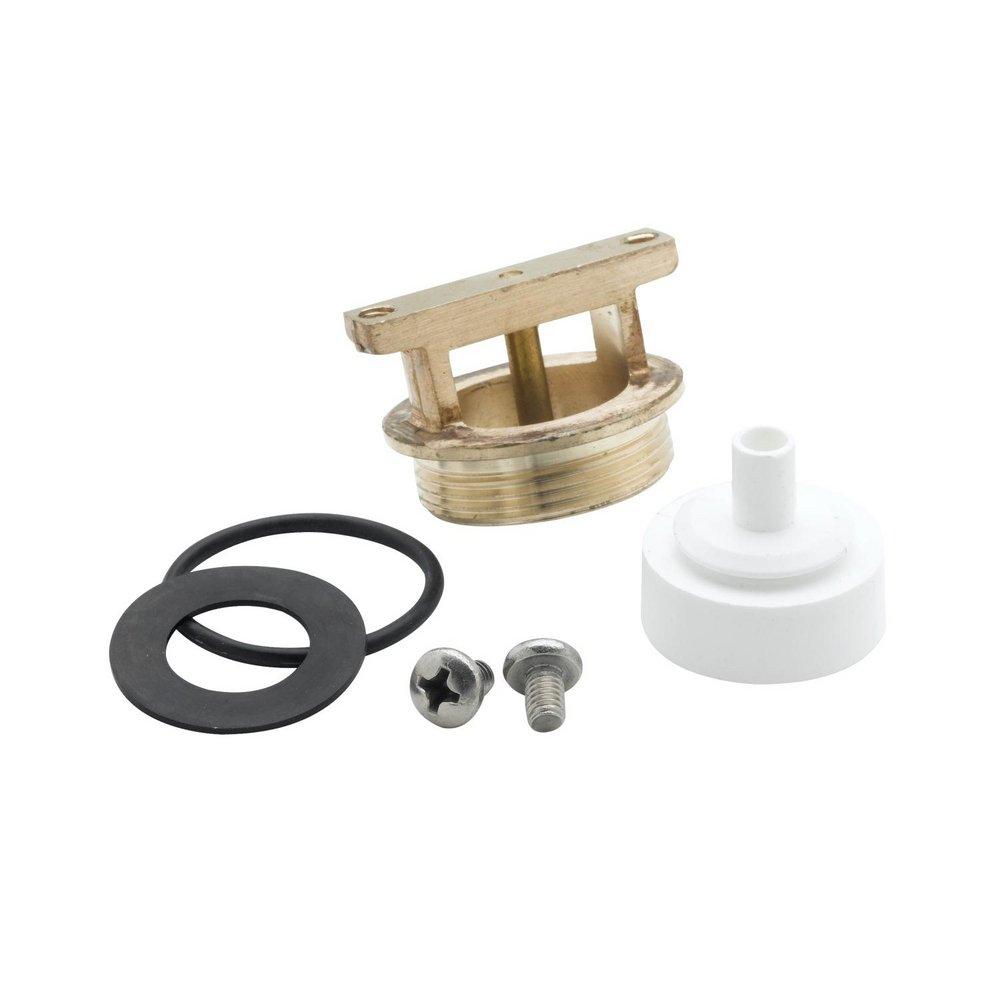

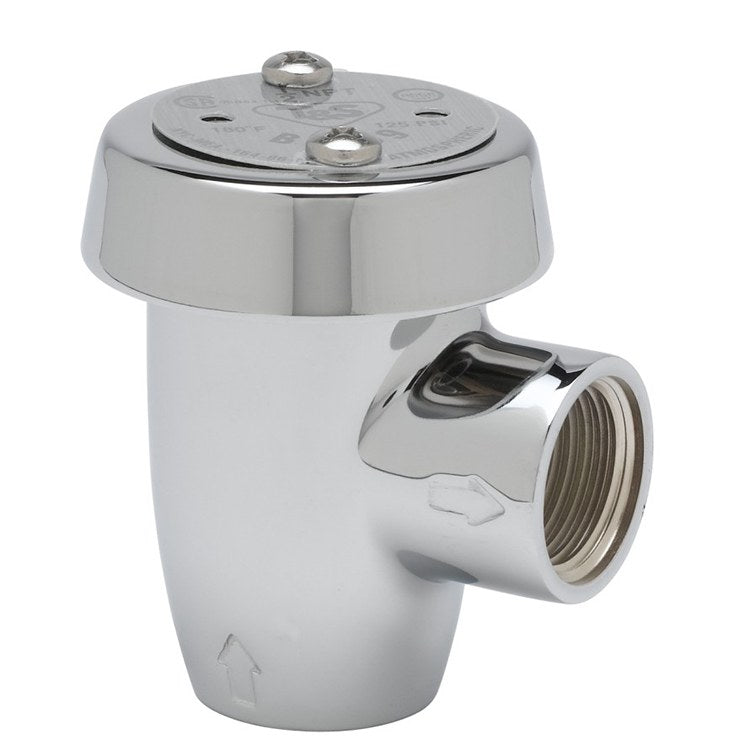

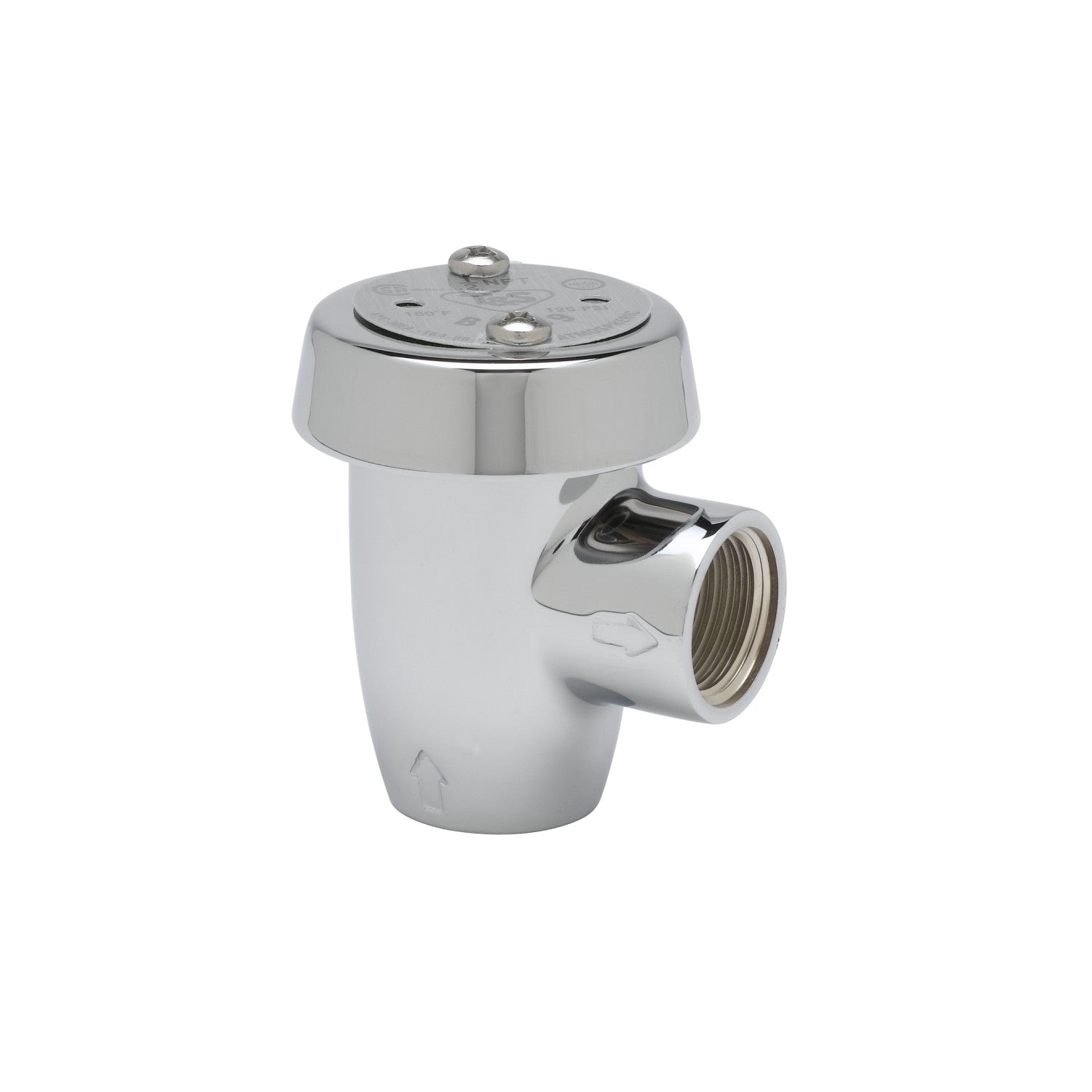

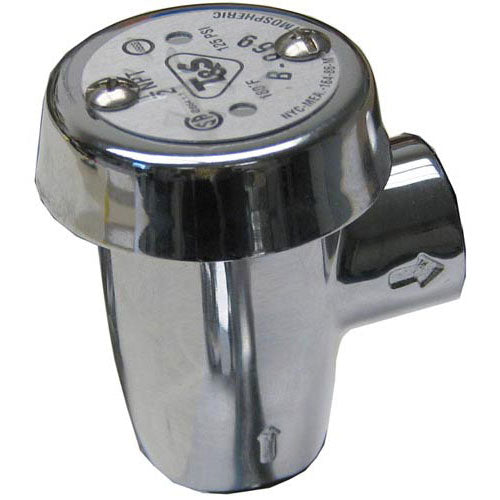

The T&S Brass B-0969 vacuum breaker features a cast body with a 1/2" NPT connection. It is rated for 125 PSI at 180 degrees and has a chrome metal cap. This vacuum breaker is used on 561235 and 561236 service faucets. A repair kit, 51-1573, is available for maintenance.
- Cast body construction
- Features a 1/2" NPT connection
- Rated for 125 PSI @ 180 degrees
Product Highlights
The T&S Brass B-0969 vacuum breaker is designed for use with service faucets, providing reliable backflow prevention.
Product Information
Standard Information
-
Brand: T&S BRASS
-
Manufacturer Part Number: B-0969
-
Country of Origin: China
Technical Specifications
-
OEM Part Number: B-0969
-
OEM: T&S Brass
-
AllPoints OEM Part Number: TSBB-0969
-
Working Pressure: 20 to 125 psi
-
Flow Rate: 13.7 gpm
-
Connection Size: 1/2 inch x 1/2 inch
-
Connection Type: NPT Female Inlet x NPT Female Outlet
-
Body Material: Polished chrome plated brass body
-
Inlet & Outlet: 1/2" NPT female inlet & outlet
-
Finish: Polish Chrome Plated
-
Function: Prevents Back Siphonage Of Water
-
Temperature Rating: 40 to 140 deg F
-
Standards: NSF/ANSI 61, ASME A112.18.1, CSA B-125.1, Low Lead Content (0.25% Max) - Commonwealth of Massachusetts, ASSE 1001, NSF/ANSI 372 (Lead Content)
-
Type: Atmospheric
-
Model#: B-0969
-
Manufacturer Name: T&S Brass
-
Material: Brass Construction
-
Max Temp (F): 180°F
-
Min Temp (F): 40°F
-
Product Type: Vacuum Breaker
-
Standards Met: NSF 61, ASME A112.18.1, CSA B125.1, NSF 372, ASSE 1001
-
Max Flow (GPM): 29.26
-
Max Pressure (PSI): 125
-
Min Pressure (PSI): 20
-
Pressure Max: 125 psi (8.62 bar)
-
Pressure Min: 20 psi (1.38 bar)
-
Temperature Max: 180 F (82.22℃)
-
Temperature Min: 40 F (4.44℃)
