Product Description

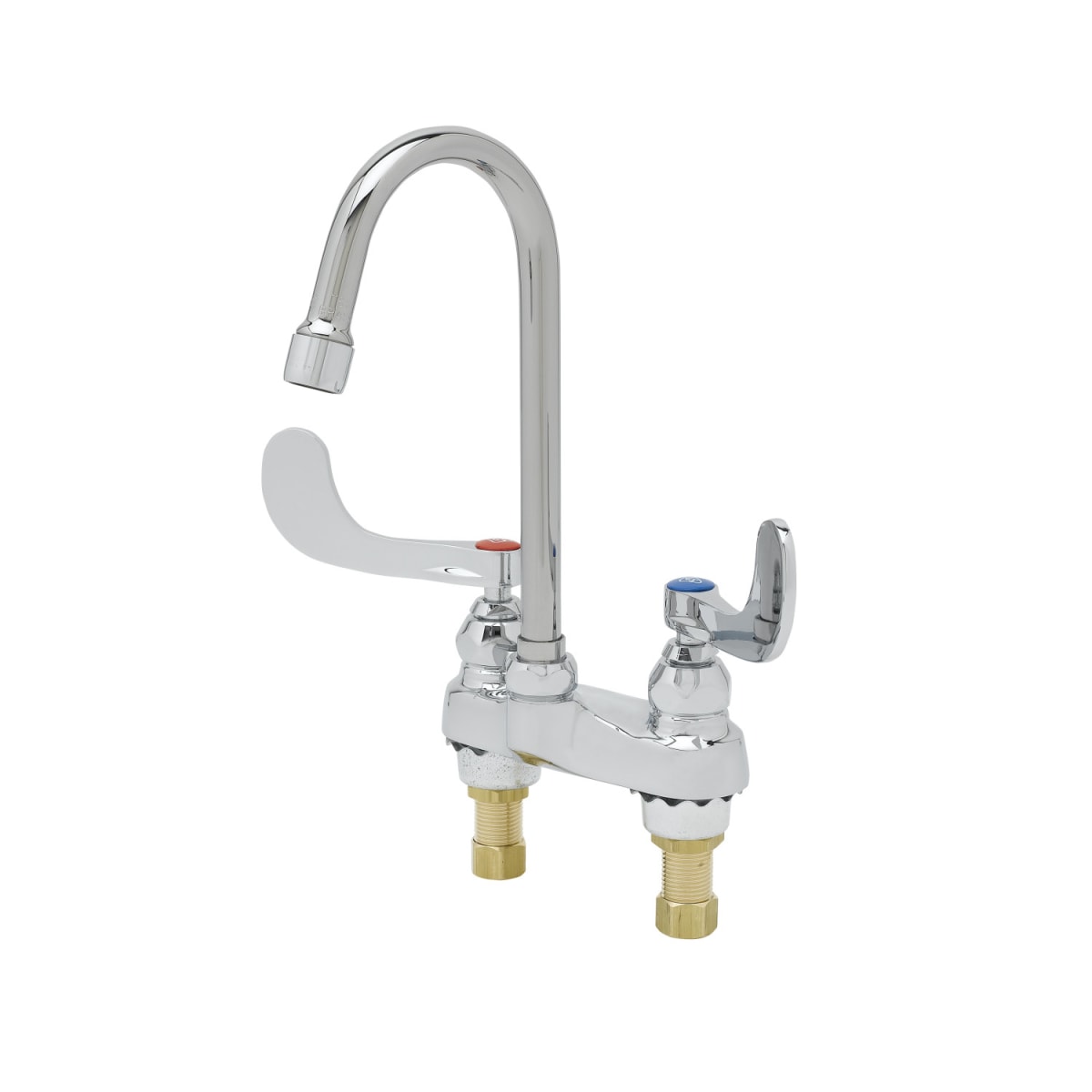

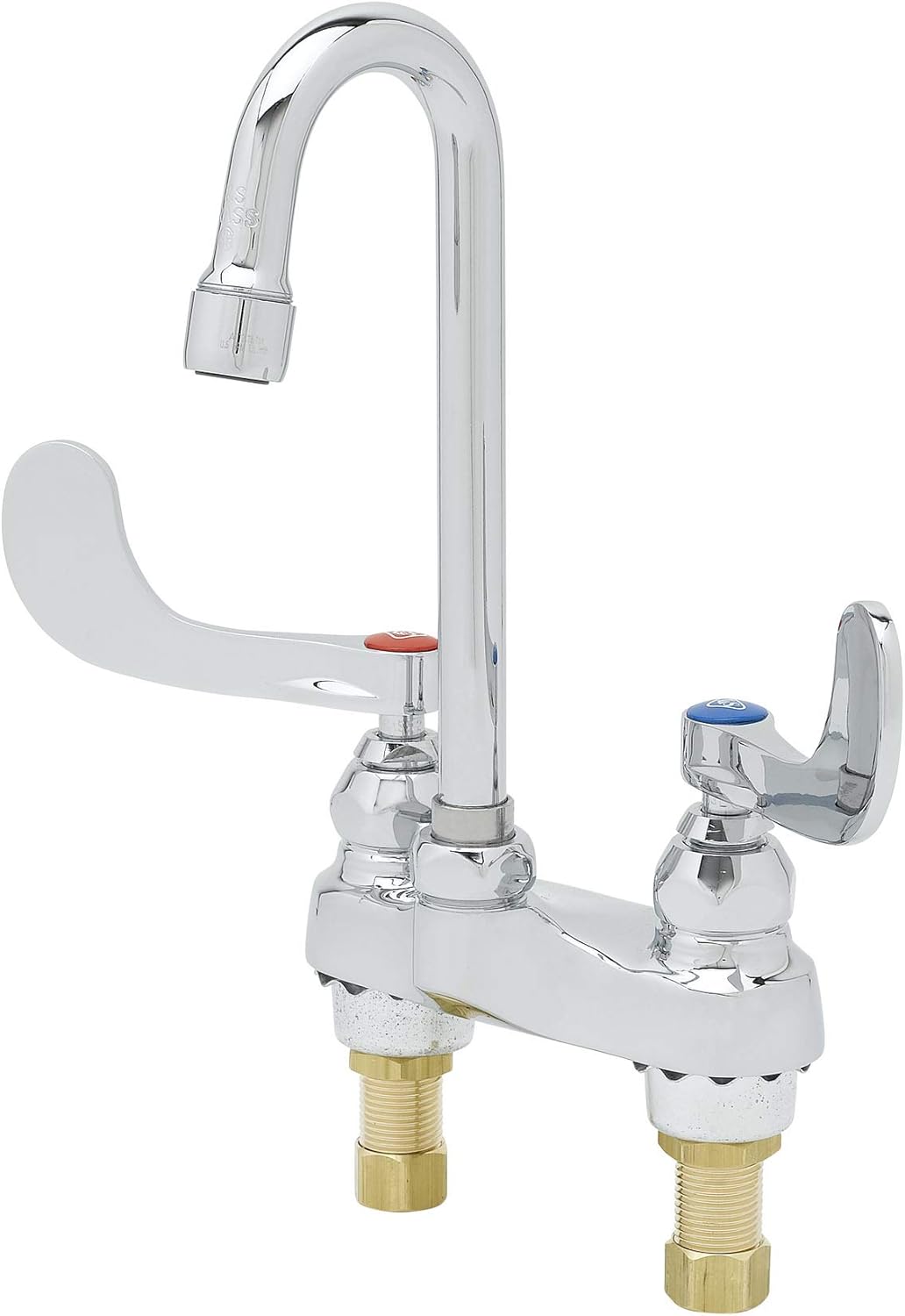

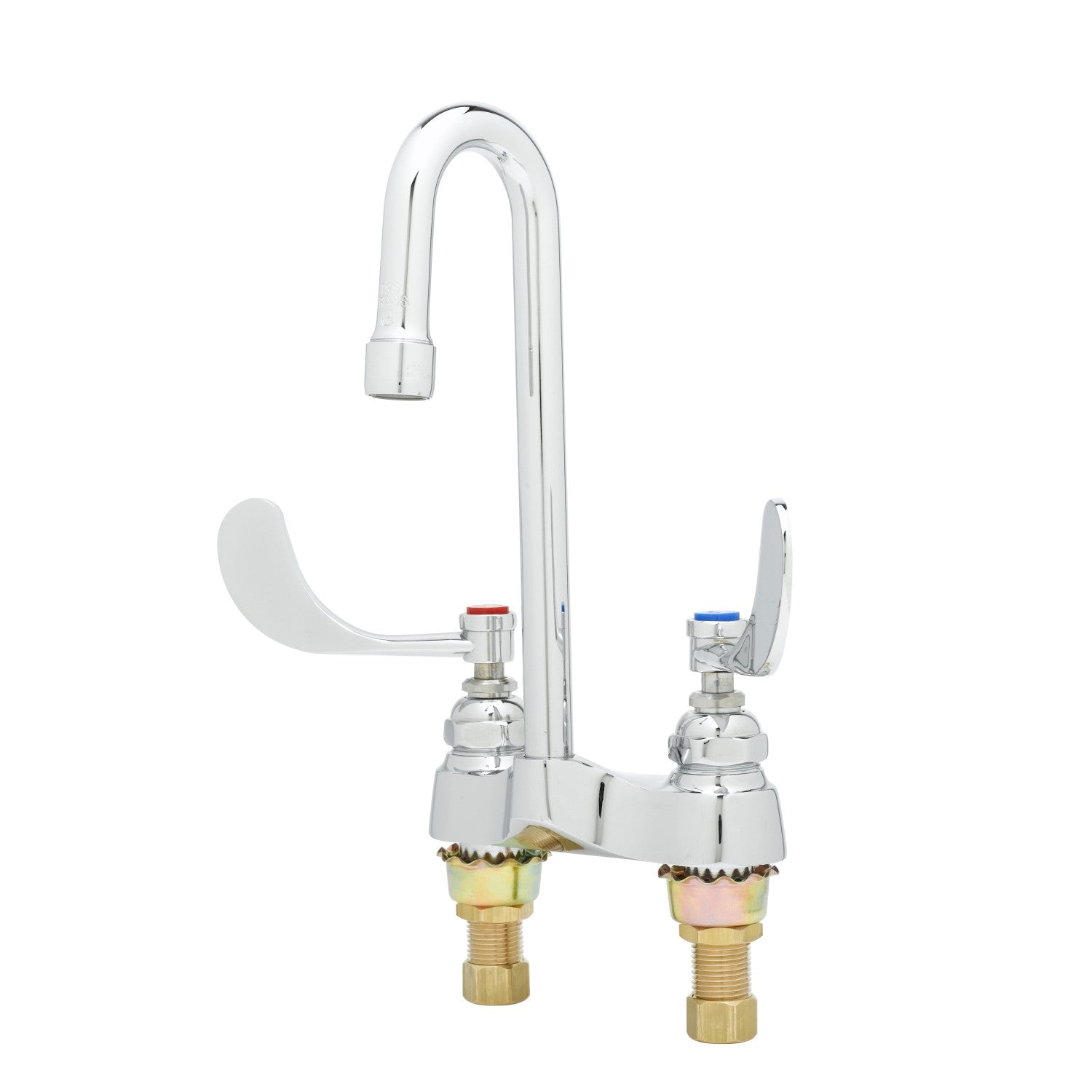

The T&S Brass B-0892 is a manual centerset medical and lavatory faucet with a 2.2 gpm flow rate and a 4-inch center. It features a gooseneck spout and two handles. Ideal for medical and lavatory applications, this faucet ensures reliable performance and meets industry standards.
- 2.2 GPM flow rate
- 4-inch centerset design
- Gooseneck spout
Product Highlights
This manual centerset faucet is designed for medical and lavatory use, featuring a gooseneck spout and a durable construction.
Product Information
Standard Information
-
Brand: T&S BRASS
-
Manufacturer Part Number: B-0892
-
Country of Origin: United States
Technical Specifications
-
OEM Part Number: B-0892
-
OEM: T&S Brass
-
MPN: B-0892
-
Brand: T&S BRASS
-
Flow Rate: 2.2 gpm
-
Spout Height: 6-11/16 in
-
Center: 4 in
-
Handles: 2
-
Finish: Chrome Plated
-
Material: Brass
-
Handle Type: 2-Handle
-
Spout Type: Swivel/Rigid Gooseneck
-
Application: Lavatory Faucet
-
Faucet Operation: Manual
-
Mounting Type: Deck
-
Hole Count: 2
-
Model Name: T&S Brass B-0892 Lavatory Medical Faucet with Gooseneck Spout and Wrist Blade Handles. 4" Deck Mount with 2.2 GPM Flow Rate.
-
Finish Type: Chrome Plated
-
Handle Location: centerset
-
Handle Material: Brass
-
Special Feature: Swivel
-
Certificate Type: NSF/ANSI 61 and ASME A112.18.1 / CSA B125.1
-
Special Features: Swivel
-
Installation Type: Professional
-
Maximum Flow Rate: 2.2 Gallons Per Minute
-
Number of Handles: 2
-
Mount: Deck
-
Nozzle Type: Gooseneck
-
Nozzle Mount: Fixed/Rigid
-
Nozzle Length O.A.: 4"
-
Center Distance: 4 in
-
Connection Size: 1/2 in
-
Connection Type: NPSM
-
Handle Style: Double 4" Wrist Blade
-
Maximum Deck Thickness: 3/4 in
-
Mfg Standards/Approvals: ASME A112.18.1, CSA B125.1, BAA/ARRA Compliant, NSF/ANSI 61/372
-
Spout Reach: 4-1/16 in
-

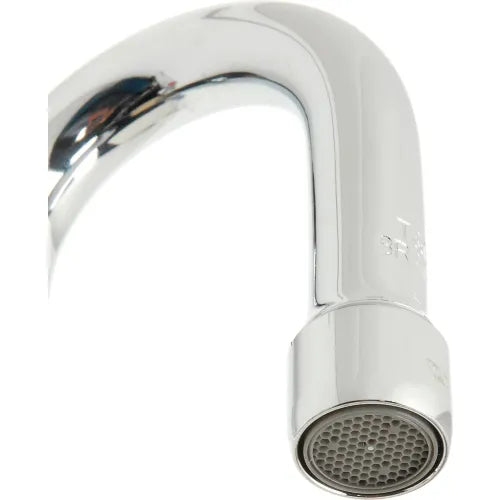

Spray Pattern: Aerator
-
Type: Manual
-
Valve/Cartridge Type: Compression
-
Cartridge Type: 1/4 Eterna Compression
-
Deck Thickness: 13/16 in
-
Deck to Aerator Height: 6-1/2 in
-
Faucet Center Size: 4 in
-
Faucet Connection Size: 1/2 in
-
Faucet Connection Type: NPSM
-
Faucet Mount: Deck
-
Pressure Rating: 20 - 125 psi
-
Temperature Rating: 40 - 140 deg F
-
Standards/Certifications: ADA compliant, ANSI/ICC A117.1, ASME A112.18.1, BAA/ARRA, CSA B125.1, City of Los Angeles, Commonwealth of Massachusetts, ANSI/NSF 61 and 372 certified
-
Model#: B-0892
-
Manufacturer Name: T&S Brass
-
SKU: TB0892
-
Faucet Spout: Cast
-
Spout Length: 3 3/4 in
-
ADA Compliant: Yes
-
Body Material: Brass
-
CEC Compliant: Non CEC Compliant
-
Faucet Finish: Chrome
-
Temp. Control: Yes
-
ADA Compliance: Yes
-
Water Inlet Connection Size: 1/2 in
-
Water Inlet Connection Type: Male NPSM
-
Battery Charger CEC Compliant: Non CEC Compliant
-
Manufacturers Warranty Length: 1 yr Parts
-
Mounting Hole Center to Center: 4"
-
Max. Mounting Hole Center Distance: 4 in
-
Max. Installation Surface Thickness: 13/16
-
Country of Origin (subject to change): United States
-
Replacement Cartridge Mfr. Model Number: 012442-40NS, 012443-40NS
-
Spread: 4IN
-
Description: Medical Lavatory Faucet
-
Faucet Holes: 2
-
Package Quantity: 1
-
Liters per Minute: 8.33 LPM
-
Mounting Location: Deck
-
Gallons per Minute: 2.2 gal/min
-
Manufacturers Part Number: B-0892
-
Certifications: ASME A112.18.1/CSA B125.1, NSF/ANSI 61, AB1953-2006
-
Height: 10-7/16 in
-
Deck Plate: 4 in
-
Inlet Connection: 1/2 in
-
Faucet Activation: Manual
-

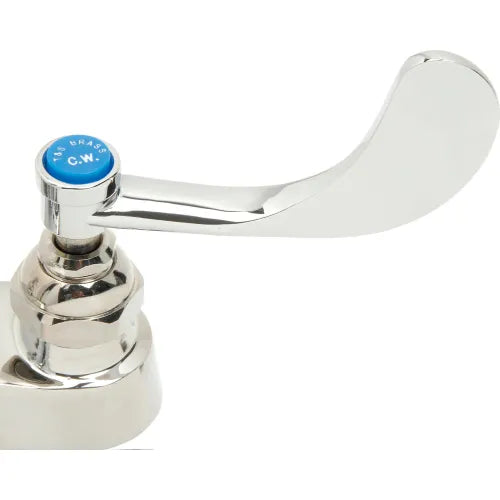

Faucet Handle Type: Wristblade
-
Faucet Spout Shape: Gooseneck
-
Ligature Resistant: No
-
Temperature Control: Yes
-
Faucet Body Material: Brass
-
Valve Type - Faucets: Hot/Cold Cartridge
-
Replacement Cartridge: 10C472
-
Faucet Handle Material: Metal
-
Mounting Type - Faucet: Deck
-
Commercial / Residential: Commercial
-
Residential / Commercial: Commercial
-
Flow Outlet Type (Faucet): Aerated
-
Flow Outlet Type - Faucet: Aerated
