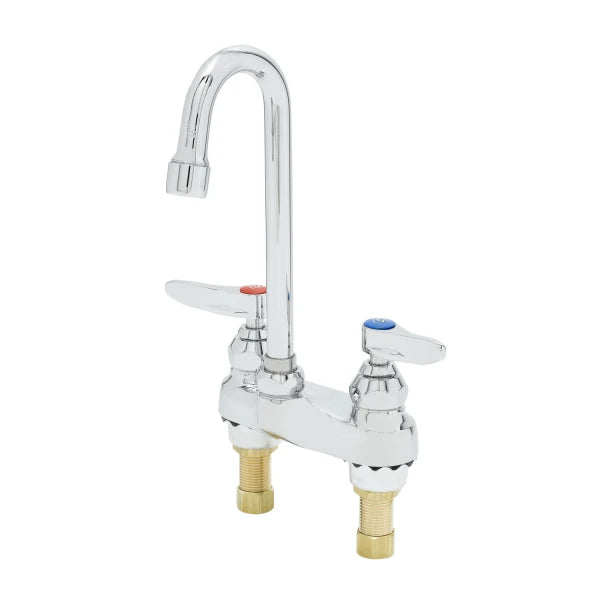

T&S Brass B-0874-M Lavatory Faucet 4 inches Deck Mount

Product Description

The T&S Brass B-0874-M is a 4" centerset deck mount mixing faucet with a polished chrome plated brass body. It features a swivel/rigid gooseneck and a 2.2 GPM aerator. The faucet includes compression cartridges with spring checks, lever handles, and 1/2" NPSM male inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• Features 1/2" NPSM male inlets with coupling nuts.
• Includes quarter-turn Eterna compression cartridges with spring checks to prevent water crossflow.
• Equipped with lever handles with color coded indexes.

Product Highlights

This lavatory faucet features a durable brass construction and a polished chrome plated finish. Ideal for commercial and residential applications.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0874-M

Technical Specifications

• Body: 4 in Centers (101.6 mm)
• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: Lever
• Inlet: 1/2 in NPSM Male
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Flow: 2.2 GPM (8.33 L/min)
• Nozzle Outlet Type: Aerator
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
