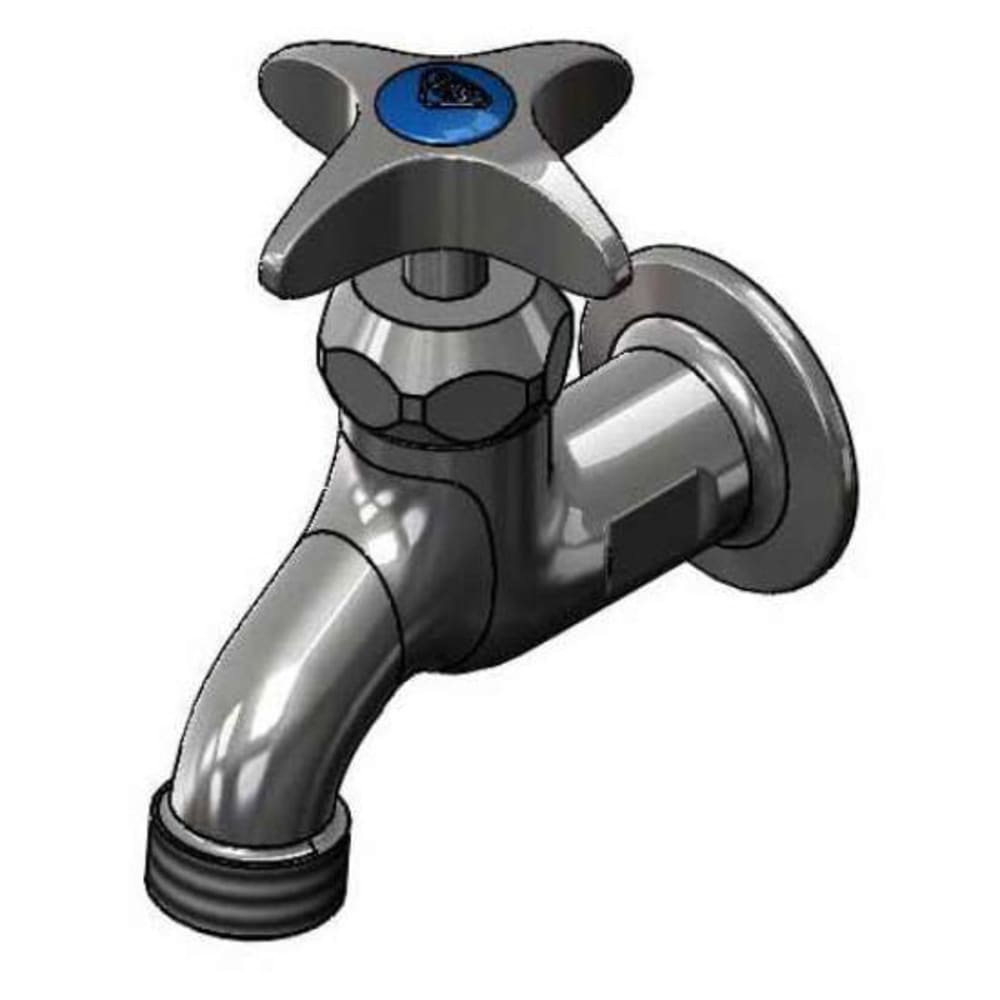

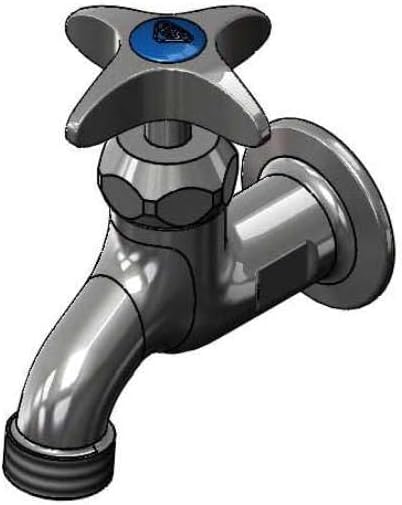

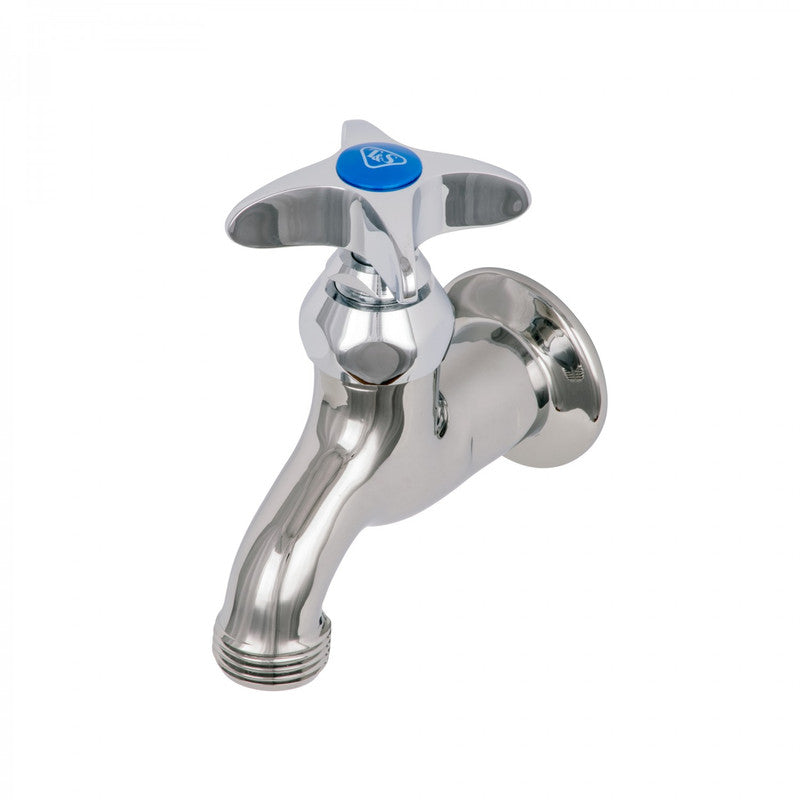

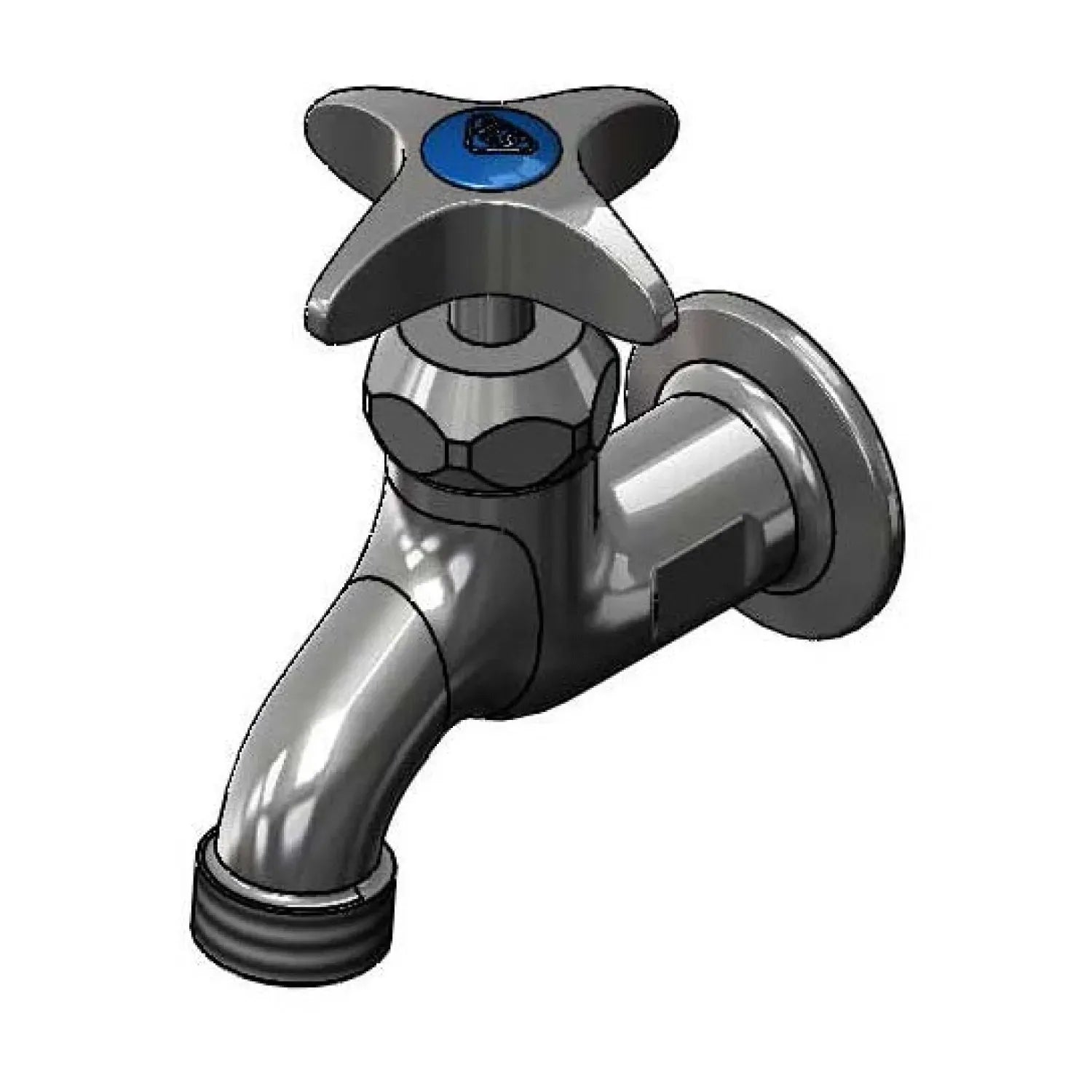

T&S Brass B-0702-CR Sill Faucet, Cerama Cartridge, 4-Arm Handle, 1/2 inches NPT Female Inlet, 3/4 inches GH Male Threads

Product Description

The T&S Brass B-0702-CR is a single hole, single temperature wall mount faucet with a polished chrome plated brass body. It features a garden hose male outlet, ceramic cartridge with check valve, 4-arm handle, and 1/2" NPT female inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• 1/2" NPT female inlet with 2" flange
• 4-arm handle with color coded index
• Garden hose male outlet

Product Highlights

This sill faucet is designed for single-temperature use and features a durable brass construction with a polished chrome finish. Ideal for commercial and residential applications.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0702-CR

Technical Specifications

• Body: Single Temp
• Body Mount: Wall
• Cartridge-Spindle: Ceramic
• Feature: Check Valve
• Handle: 4-Arm (Cross)
• Inlet: 1/2 in NPT Female
• Material: Brass Construction
• Nozzle Flow: 5.54 GPM (20.97 L/min)
• Nozzle Outlet Type: Garden Hose Threads
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 180 F (82.22℃)
• Temperature Min: 40 F (4.44℃)
• Mounting Type: Wall Mount
• Finish Type: Polished
• Handle Material: Brass
• Handle Type: 4-Arm
• Mounting Location: Wall
• Spout / Nozzle Type: 3/4" Hose Thread
• Safety and Compliance: ADA, CSA, NSF
