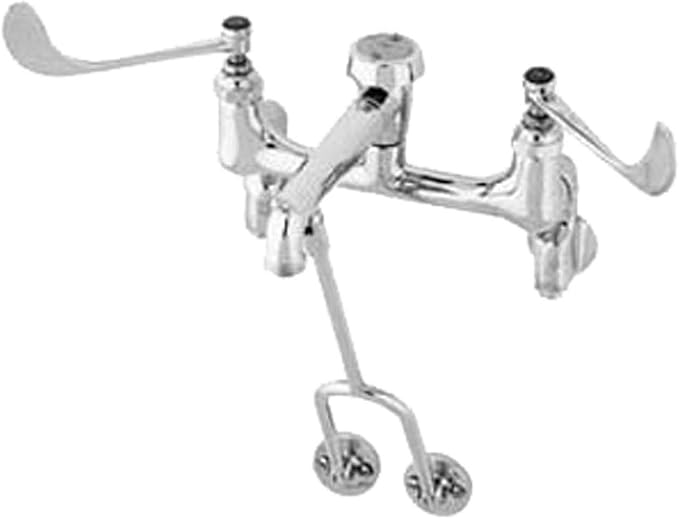

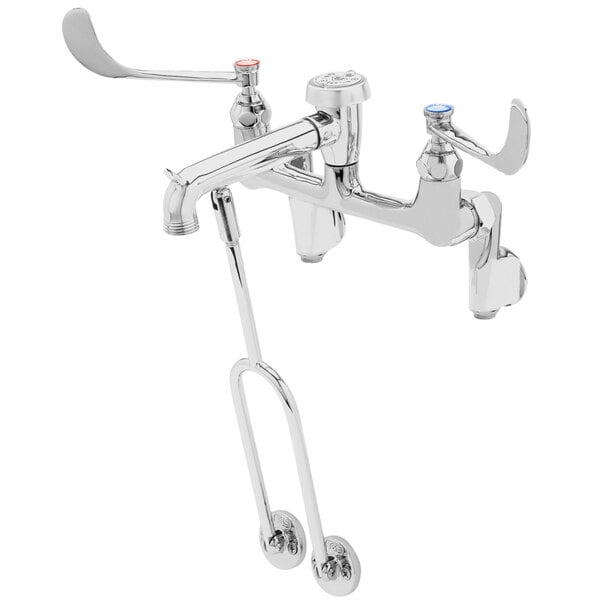

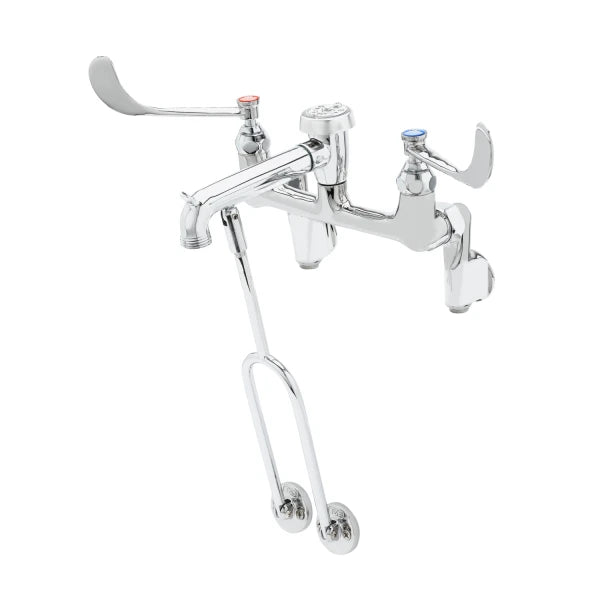

T&S Brass B-0655-01 Service Sink Faucet Wall Mount Adjustable Centers Built-In Stops Vacuum Breaker

Product Description

The T&S Brass B-0655-01 is a service sink faucet with wall mount, adjustable centers, built-in stops, and a vacuum breaker. This adjustable wall mount mixing faucet features a polished chrome plated brass body and spout with vacuum breaker. Includes a pail hook and garden hose male outlet, compression cartridges with spring checks, and 6" wrist action handles.

• 1/2" NPT female adjustable arm inlet with 2" flange & built-in service stops
• 6" wrist action handles with color coded indexes
• Adjustable centers from 3 1/4" to 12 3/4" above or below centerline

Product Highlights

This service sink faucet is ideal for commercial applications requiring a reliable and adjustable water fixture.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0655-01
• Country of Origin: United States of America

Technical Specifications

• Body: 8 in Centers (203.2 mm)
• Body Mount: Wall
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: 6 in Wrist (152.4 mm)
• Inlet: Built-In Stop
• Material: Brass Construction
• Nozzle: Cast Spout
• Nozzle Flow: 12.33 GPM (46.67 L/min)
• Nozzle Outlet Type: Garden Hose Threads
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60 C)
