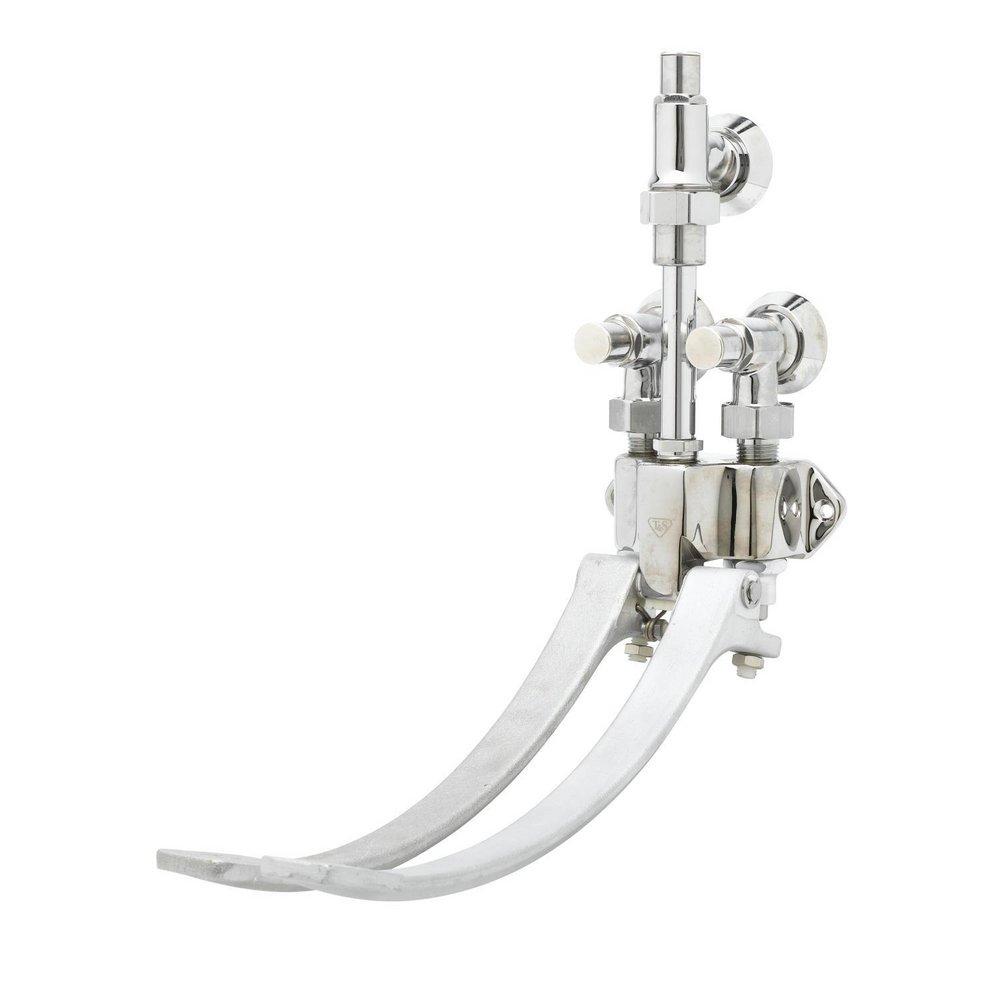

T&S Brass B-0504-01 Double Pedal Valve 1/2 x 3/8 in Replacement MPN

Product Description

The T&S Brass B-0504-01 Double Pedal Valve is designed for wall mounting and features an adjustable height for hot and cold pedals. This model includes loose key angle stops and angle volume control, making it suitable for various plumbing applications.

• Wall-mounted design with adjustable height
• Self-closing valves for convenience
• Composed of polished chrome-plated brass and satin finish aluminum

Product Highlights

This double pedal valve is ideal for institutional and utility settings. Its durable construction and easy-to-use design enhance functionality in high-demand environments.

Product Information

Standard Information

• Brand: T&S Brass
• MPN: B-0504-01

Technical Specifications

• Connection Size: 1/2 x 3/8 in
• Connection Type: NPT
• Finish: Polished Chrome
• Includes: Loose Key Angle Stop and Angle Volume Control
• Item Name: Double Pedal Valve
• Material: Brass
• Mounting: Wall
• Pressure Rating: 20 - 125 psi
• Temperature Rating: 40 - 140 deg F
• Standards/Certifications: ASME A112.18.1, BAA/ARRA, CSA B125.1, ANSI/NSF 372 and 61 certified
