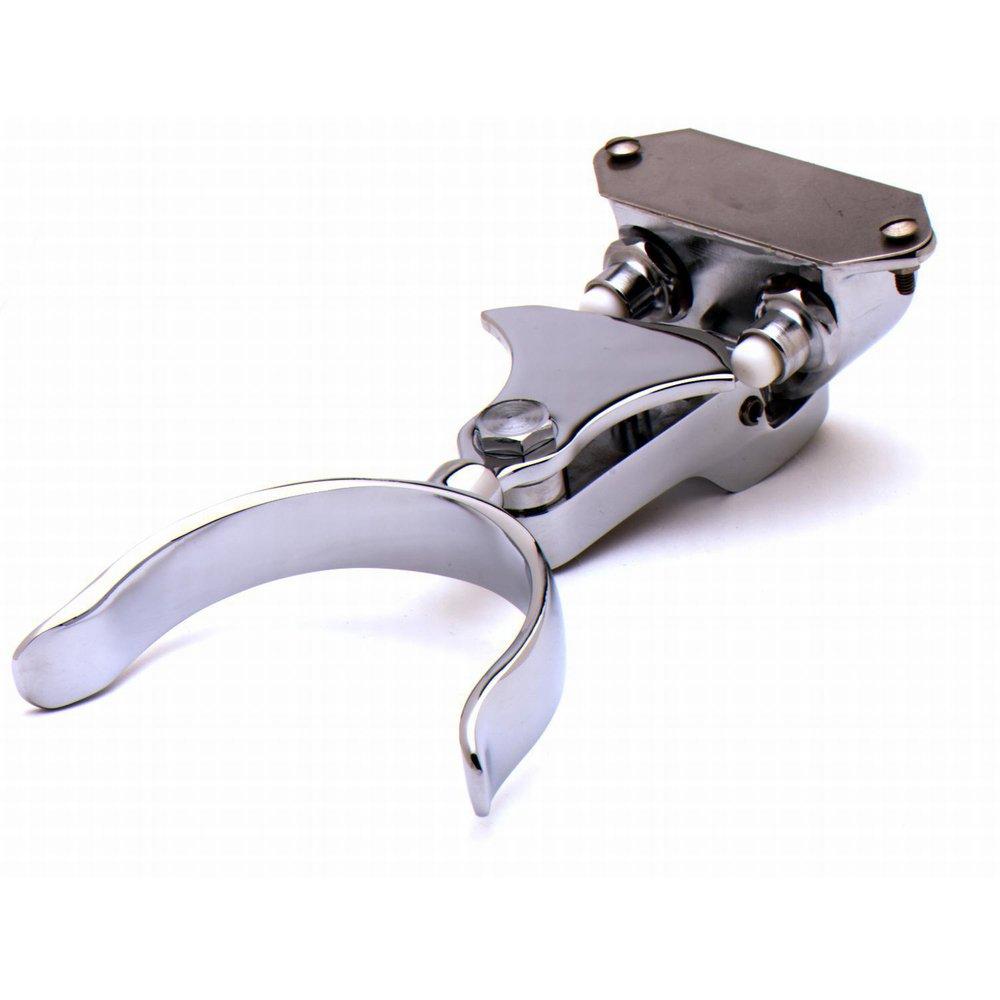

T&S Brass B-0475 Knee Action Valve, Heavy Duty Cam Action Stirrup, 1/2 inches NPT Female Inlet

Product Description

The T&S Brass B-0475 knee action valve features a polished chrome plated brass body and a 1/2" NPT female inlet. It includes self-closing cartridges and is designed to remain in a set position for hot, cold, or mixed water. This valve is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section9 and NSF 372.

• Self-closing cartridges
• Knee action valve with polished chrome plated brass body (will remain in set position for hot, cold or mixed water)
• Polished chrome plated stirrup

Product Highlights

Durable knee action valve with polished chrome plated brass body, self-closing cartridges, and 1/2" NPT connections.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0475

Technical Specifications

• Material: Polished chrome plated brass body & stirrup
• Inlets: 1/2" NPT hot and cold inlets
• Outlet: 1/2" NPT outlet
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Certifications: ASME A112.18.1 / CSA B125.1 Buy American Act (BAA) NSF/ANSI 372 (Lead Content) NSF/ANSI/CAN 61 Q≤1
• Brand: T&S Brass
• Inlet Connection Type: National Pipe Tapered
• Outlet Connection Type: FNPT
• Number of Ports: 1
• Thread Size: 1/2 inch
• Thread Type: NPT
• Valve Type: knee valve
• Body & Stirrup Material: Polished chrome plated brass
• Cartridges: Self-closing cartridges
