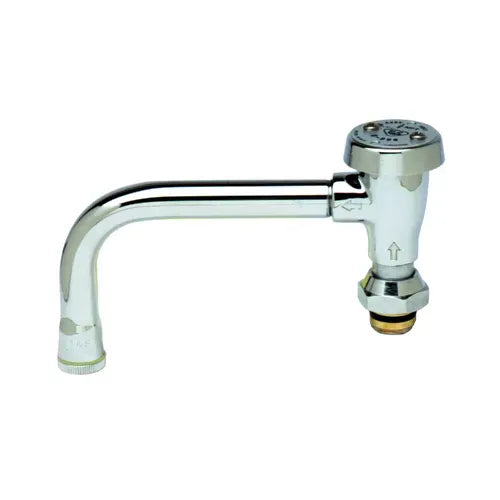

T&S Brass B-0408-03 Vacuum Breaker Swing Nozzle (8-5/8 in spread, 3-11/16 in height)

Product Description

The T&S Brass B-0408-03 is a vacuum breaker swing nozzle with a polished chrome plated brass tubular riser and swivel lab-tip outlet designed for commercial food-service faucets. It delivers 12.8 GPM (48.45 L/min) and includes a Series 2 stream regulator and a 3/8 in NPT female atmospheric vacuum breaker (not for continuous pressure). The assembly provides an 8-5/8 in spread and 3-11/16 in height and meets ASME, CSA, NSF, and ASSE standards.

• Flow: 12.8 GPM (48.45 L/min) with Series 2 stream regulator
• 3/8 in NPT female atmospheric vacuum breaker (not for continuous pressure) and swivel lab-tip outlet
• Material: polished chrome plated brass tubular nozzle and riser; operating range 20�125 psi and 40�140 F (4.44�60 C)

Product Highlights

Swivel vacuum breaker nozzle for commercial faucets; 8-5/8 in spread, 3-11/16 in height; certified to ASME A112.18.1/CSA B125.1, NSF/ANSI 61, NSF/ANSI 372, and ASSE 1001.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0408-03

Technical Specifications

• Brand: T&S Brass
• MPN: B-0408-03
• Product type: Vacuum breaker swing nozzle
• Nozzle type: Swivel, lab-tip outlet
• Nozzle flow: 12.8 GPM (48.45 L/min)
• Maximum pressure: 125 psi (8.62 bar)
• Minimum pressure: 20 psi (1.38 bar)
• Maximum temperature: 140 F (60 C)
• Minimum temperature: 40 F (4.44 C)
• Vacuum breaker type: 3/8 in NPT female atmospheric (not for continuous pressure)
• Material: Polished chrome plated brass tubular nozzle and riser
• Nozzle length: 9 in (228.6 mm)
• Spread: 8-5/8 in
• Height: 3-11/16 in
• Nozzle outlet type: Lab tip
• Stream regulator: Series 2
• Certifications: ASME A112.18.1 / CSA B125.1; NSF/ANSI 372; NSF/ANSI/CAN 61 Q<=1; ASSE 1001
• UPC: 671262004442
