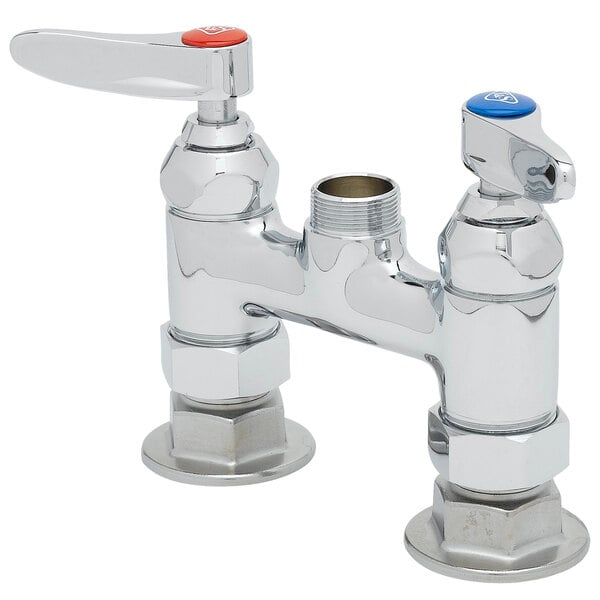

T&S Brass B-0326-LN Double Pantry Swivel/Rigid Base Faucet

Product Description

The T&S Brass B-0326-LN double pantry swivel/rigid base faucet is a deck-mounted faucet with a polished chrome-plated brass body. It features compression cartridges with spring checks and lever handles. Designed with 1/2" NPT female inlets, this faucet meets ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 standards and complies with ADA ANSI/ICC A117.1 requirements.

• Features 1/2" NPT female eccentric inlets w/ 2" flanges
• Equipped with quarter-turn Eterna compression cartridges w/ spring checks
• Swivel outlet accepts standard T&S swing nozzles and EasyInstall risers

Product Highlights

This deck-mounted faucet includes lever handles with color-coded indexes and an EZ-K kit to convert rigid risers to EasyInstall.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0326-LN
• Country of Origin: United States of America

Technical Specifications

• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: Lever
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: Less Nozzle
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Spout / Nozzle Type: without spout
• Faucet Centers: 4 Inches
• Model #: B-0326-LN
• Cartridge Type: Compression
• Features: ADA Compliant
• Made in America: Yes
• Finish: Chrome
• Handle Type: Lever
• Mounting Style: Deck Mounted
• Mounting Type: Adjustable
• Water Inlet Size: 1/2 Inches
