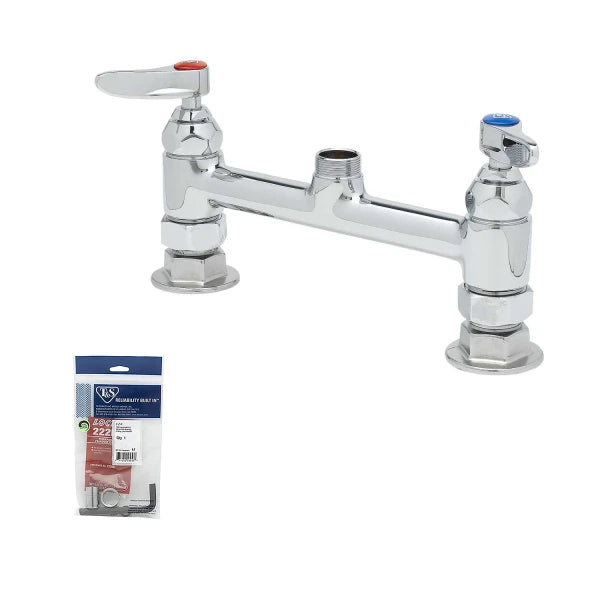

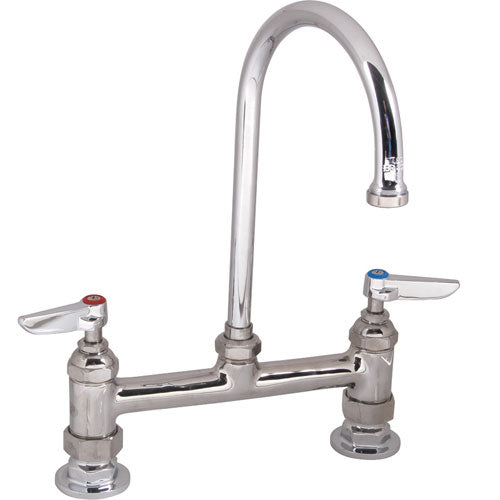

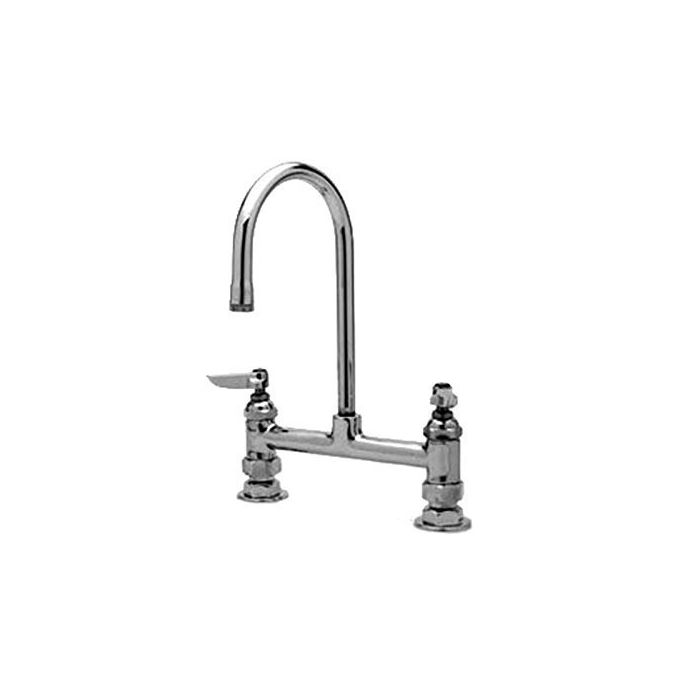

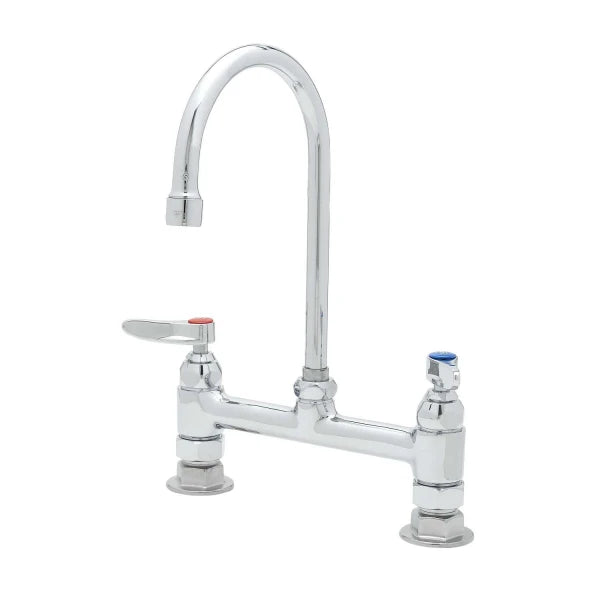

T&S Brass B-0320 faucet 8 inches deck gooseneck lead-free

Product Description

The T&S Brass B-0320 is an 8-inch deck-mounted gooseneck faucet, constructed from chrome-plated brass for durability. This lead-free unit is designed for commercial applications, featuring a 1/2" NPT female inlet and a 1/2" NPT female outlet for reliable water connections. Its design is suitable for various pantry and utility sink installations.

• 8-inch deck mount installation
• Gooseneck design with chrome-plated brass construction
• Lead-free with 1/2" NPT female inlet and outlet

Product Highlights

Deck-mounted gooseneck faucet with lead-free chrome-plated brass construction and NPT female connections.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0320
• Country of Origin: United States

Technical Specifications

• AllPoints OEM Part Number: TSBB-0320
• Product Identifier: 1101154
• MPN: B-0320
• Brand: T&S Brass
• Material: Brass
• Plating: Chrome-Plated
• Spout Type: Gooseneck
• Inlet Connection: 1/2" NPT Female
• Outlet Connection: 1/2" NPT Female
• Lead Free Compliance: Yes
• Country of Origin: United States
• Mounting Centers: 8 in (203.2 mm)
• Mounting Type: Deck Mount
• Cartridge Type: 1/4 Turn Compression
• Cartridge Feature: Spring Check
• Handle Type: Lever
• Inlet Centers Adjustment: Adjustable Centers
• Nozzle Length: 6 in (152.4 mm)
• Nozzle Swivel Capability: Swivel
• Nozzle Outlet Type: Laminar Flow Device
• Maximum Pressure: 125 psi (8.62 bar)
• Minimum Pressure: 20 psi (1.38 bar)
• Maximum Temperature: 140 F (60°C)
• Minimum Temperature: 40 F (4.44°C)
• Certifications: ASME A112.18.1 / CSA B125.1, NSF/ANSI 372 (Lead Content), NSF/ANSI/CAN 61 Q≤1
• Compliance: ADA ANSI/ICC A117.1, Buy American Act (BAA)
• Recommended Uses: Commercial
• Number of Handles: 2
• UPC / GTIN: 671262003742
