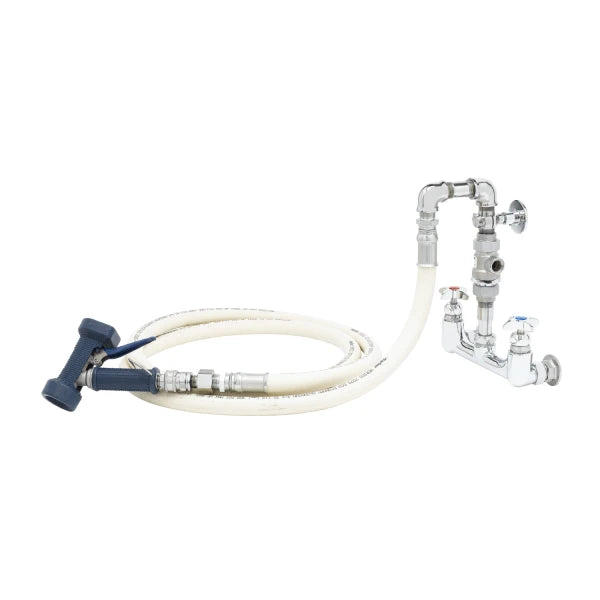

T&S Brass B-0273 washdown station 8 inches wall mount faucet 10 feet creamery hose quick-disconnect water gun

Product Description

T&S BRASS B-0273 is an 8-inch wall mount large flow mixing faucet designed for washdown applications. This station includes a 10-foot white creamery hose with a quick disconnect and a rear trigger water gun. It features compression cartridges, integral check valves, and 4-arm handles, with 3/4-inch NPT female inlets. Certified to ASME A112.18.1/CSA B125.1 and ASSE 1012, it operates within 20-125 psi and 40-140°F, delivering 6.03 GPM.

• 10' white creamery hose with quick disconnect
• 8" wall mount Big-Flo mixing faucet with polished chrome plated brass body
• Rear trigger water gun

Product Highlights

Durable brass construction washdown station with 8-inch wall mount faucet, 10-foot hose, and quick-disconnect water gun for efficient cleaning.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0273
• Country of Origin: US

Technical Specifications

• Flow Rate: 6.03 GPM (22.82 L/min)
• Maximum Pressure: 125 psi (8.62 bar)
• Minimum Pressure: 20 psi (1.38 bar)
• Maximum Temperature: 140 F (60℃)
• Minimum Temperature: 40 F (4.44℃)
• Faucet Body Centers: 8 in (203.2 mm)
• Mounting Type: Wall
• Cartridge Type: Compression
• Hose Connector Type: Water
• Handle Style: 4-Arm (Cross)
• Inlet Connection: 3/4 in NPT Female
• Inlet Center Adjustment: Adjustable
• Construction Material: Brass Construction
• Water Gun Type: Rear Trigger Water Gun
