T&S Brass B-0265 faucet 8 inches wall 18 inches dbl

Product Description

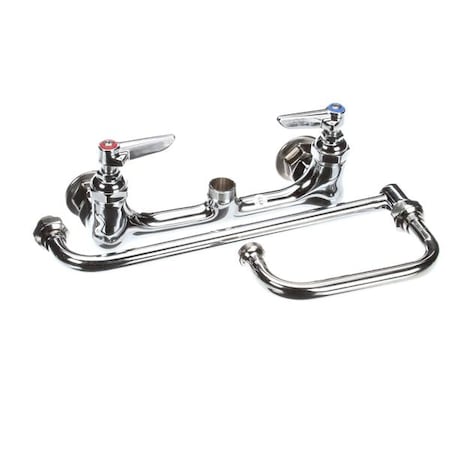

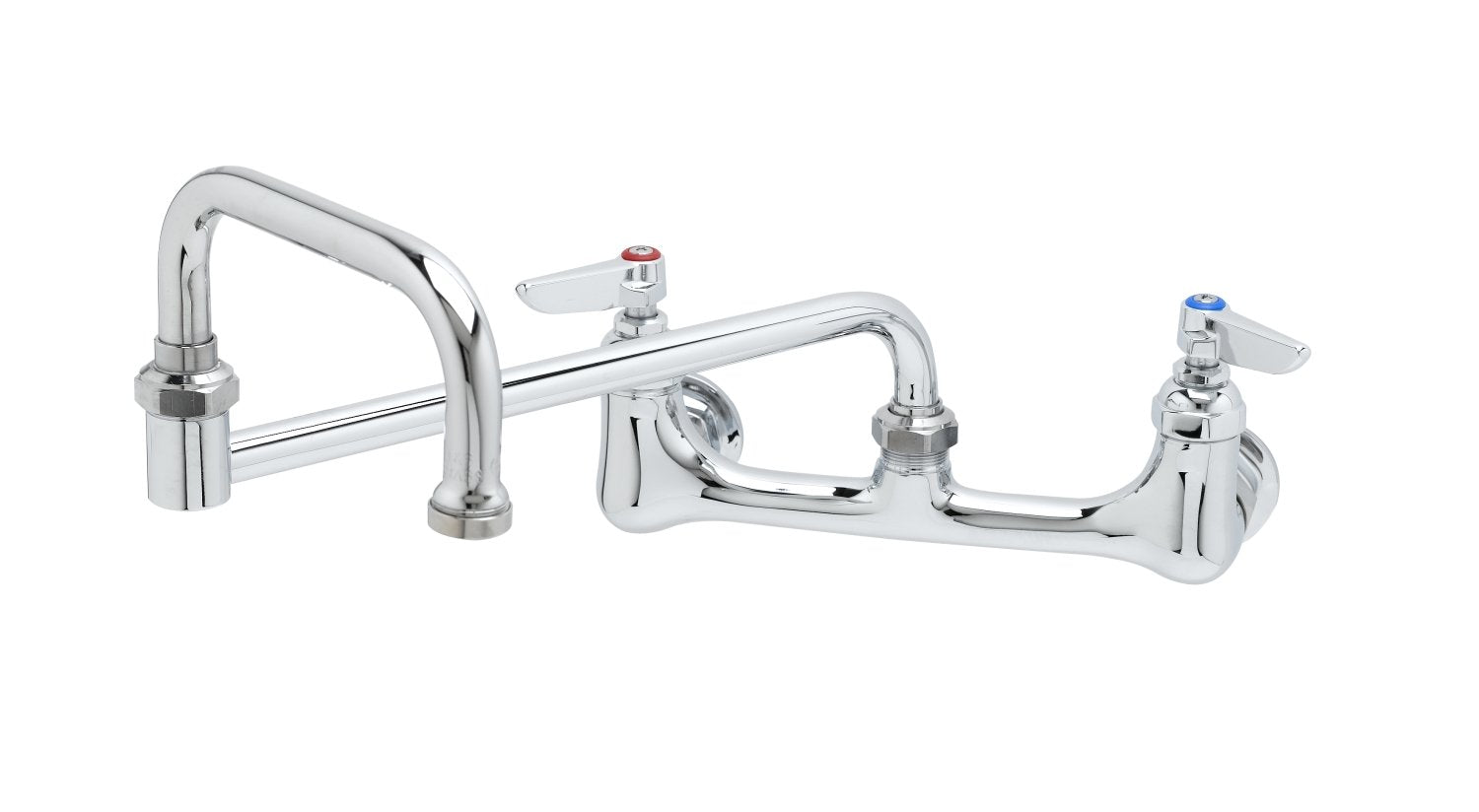

The T&S Brass B-0265 is an 8-inch wall mount mixing faucet designed for commercial applications. It features an 18-inch double joint swing nozzle and a polished chrome plated brass body, ensuring durability and functionality. This faucet is equipped with lever handles and 1/2-inch NPT female inlets, suitable for various plumbing setups.

• Wall mount design with 8-inch center-to-center (C/C) installation.
• Features an 18-inch double joint swing nozzle for extended reach.
• Equipped with 1/2-inch NPT female inlets and lever handles.

Product Highlights

Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372; meets ADA ANSI/ICC A117.1 requirements.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0265
• Country of Origin: United States

Technical Specifications

• Manufacturer: T&S Brass
• MPN: B-0265
• Product Category: Parts
• Product Type: OEM
• Hazardous: false
• Material: Brass
• Handle Type: Lever
• Mounting Type: Wall Mount
• Hole Count: 1
• Handle Location: Wall-mount
• Handle Material: Brass
• Number of Handles: 2
• Included Components: Nozzle
• Body Centers: 8 in (203.2 mm)
• Cartridge Type: 1/4 Turn Compression with Spring Check
• Inlet Connection: 1/2 in NPT Female
• Inlet Centers Adjustment: Adjustable
• Nozzle Type: Double Joint Swing Nozzle
• Nozzle Length: 18 inches (with 12 inch back section and 6 inch front section)
• Nozzle Swivel: Yes
• Nozzle Flow Rate: 19.22 GPM (72.75 L/min)
• Nozzle Outlet Type: Stream Regulator (Laminar Flow Device)
• Maximum Pressure: 125 psi (8.62 bar)
• Minimum Pressure: 20 psi (1.38 bar)
• Maximum Temperature: 140 F (60C)
• Minimum Temperature: 40 F (4.44C)
• Certifications: ASME A112.18.1 / CSA B125.1, NSF/ANSI 372 (Lead Content), NSF/ANSI/CAN 61 Q<=1
• Faucet Type: Kitchen Faucets
