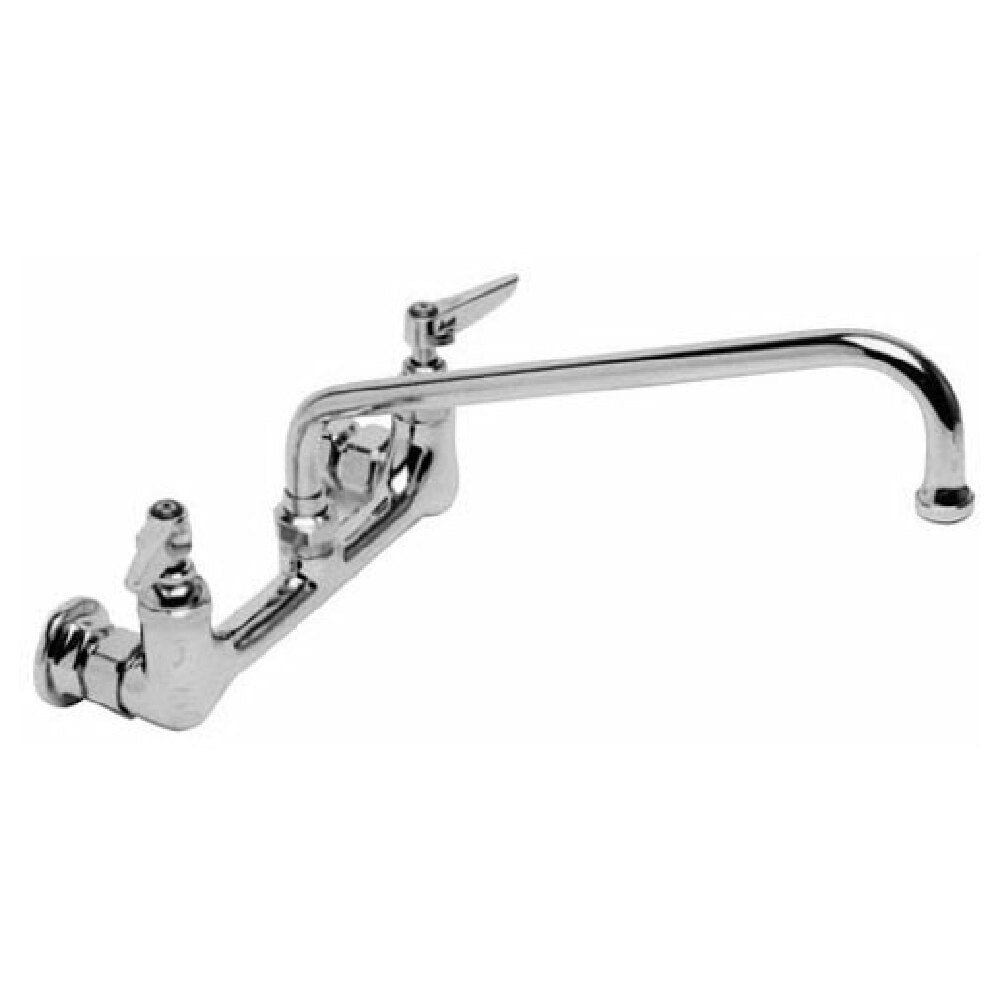

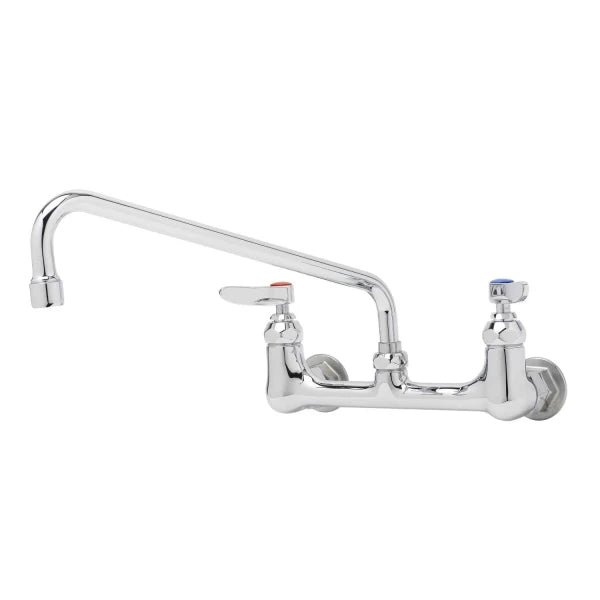

T&S Brass B-0231-M Double Pantry Faucet, Wall Mount, 8 inches Centers, 12 inches Swing Nozzle

Product Description

The T&S Brass B-0231-M is an 8" wall mount mixing faucet with a polished chrome plated brass body. It features a 12" swing nozzle with stream regulator outlet, compression cartridges with checks, lever handles, and 1/2" NPT female inlets. Certified to ASMEA112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.

• 1/2" NPT female eccentric inlets w/ 2" flanges
• 12" swing nozzle
• 8" wall mount mixing faucet with polished chrome plated brass body

Product Highlights

This wall-mounted faucet is ideal for commercial kitchens and pantries, offering durability and ease of use.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0231-M
• Country of Origin: United States

Technical Specifications

• Body: 8 in Centers (203.2 mm)
• Body Mount: Wall
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: Lever
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Flow: 23.09 GPM (87.40 L/min)
• Nozzle Outlet Type: Laminar Flow Device
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Manufacturer: T&S Brass
• Model Number: B0231M
• Manufacturer Part #: B0231M
• Country of Origin: United States
