T&S Brass B-0225 Faucet 4 inches Ctr Deck 12 inches Noz

Product Description

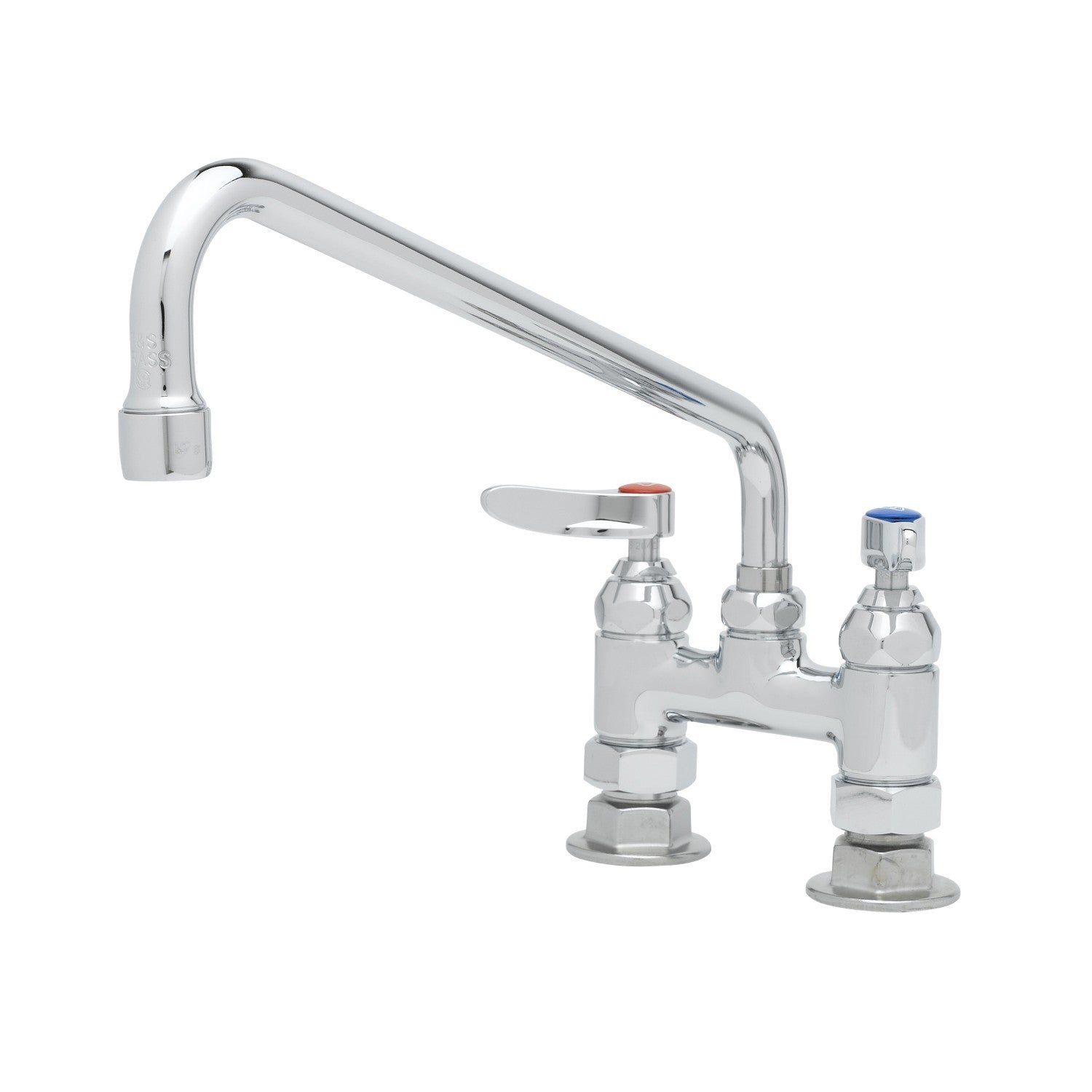

The T&S Brass B-0225 deck mount heavy-duty faucet features 4" centers and a T&S swing nozzle. The 12" nozzle, part number 26-1177, is complemented by replacement hot spindle with handle # 51-1499 and cold spindle with handle # 51-1498. This faucet is suitable for bar sink applications.

• Deck mount
• Heavy duty
• 4" centers
• Swing nozzle

Product Highlights

This T&S Brass faucet is designed for durability and ease of use in demanding environments.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0225
• Country of Origin: United States

Technical Specifications

• AllPoints OEM Part Number: TSBB-0225
• OEM Part Number: B-0225
• OEM: T&S Brass
• Mounting Type: Deck Mount
• Centers: 4"
• Nozzle Length: 12"
• Material: Brass Construction
• Applicable Standard: ADA, ASME A112.18.1/CSA B125.1, ANSI/ICC A117.1, NSF/ANSI 61/9/372, BAA/ARRA, CSA (Canada and US)
• Body/Spout Material: Brass
• Color/Finish: Polished Chrome
• Faucet Hole Center: 4 Inch
• Flow Rate: 17.9 GPM at 60 PSI
• Handle Material: Polished Chrome Plated Metal
• Handle Type: Lever
• Inclusions/Features: 1/4 Turn Eterna Compression Cartridge with Spring Check, Nozzle with Stream Regulator Outlet, Color Coded Index
• Inlet Connection: Female Threaded
• Inlet Size: 1/2 Inch
• Spout Dimensions: 10 Inch Height x 6-7/8 Inch Clearance x 12 Inch Reach
• Spout Type: Swing
• Type: 2-Handle, Deck Mount
• Used On Item: Bar Sink
• Country of Origin (subject to change) [Specifications]: United States
• Body: 4 in Centers (101.6 mm)
• Body Mount: Deck
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Handle: Lever
• Inlet: 1/2 in NPT Male
• Nozzle: Swivel
• Nozzle Flow: 17.9 GPM (67.75 L/min)
• Nozzle Outlet Type: Laminar Flow Device
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Certifications: ASME A112.18.1 / CSA B125.1
• NSF/ANSI 372 (Lead Content): NSF/ANSI/CAN 61 Q≤1
