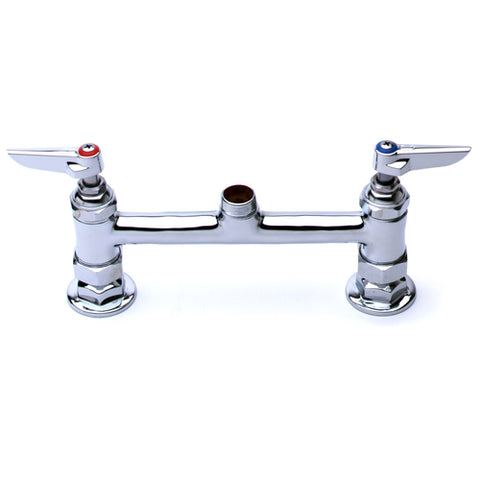

T&S Brass B-0220-CR-LN Mixing Faucet 8 inches Deck Mount Less Nozzle

Product Description

The T&S Brass B-0220-CR-LN is an 8" deck mount mixing faucet with a polished chrome plated brass body and a swivel outlet (less nozzle). It features ceramic cartridges with check valves and lever handles. The faucet includes 1/2" NPT female inlets and is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372 and meets ADA ANSI/ICC A117.1 requirements.

• Features 1/2" NPT female eccentric inlets with 2" flanges.
• Adjustable centers from 7 3/4" to 8 1/4".
• Quarter-turn Cerama cartridges with check valves to prevent cross flow of water.

Product Highlights

This mixing faucet is ideal for commercial applications requiring durability and precise water control. Its check valves prevent cross-flow, and it's ADA compliant for accessibility.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0220-CR-LN

Technical Specifications

• Body: 8 in Centers (203.2 mm)
• Body Mount: Deck
• Cartridge-Spindle: Ceramic
• Feature: Check Valve
• Handle: Lever
• Inlet: 1/2" NPT female eccentric inlets
• Material: Brass Construction
• Nozzle: Less Nozzle
• Nozzle Flow: 10.45 GPM (39.55 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 180 F (82.22℃)
• Temperature Min: 40 F (4.44℃)
• Faucet Centers: 8" centers
• Spout / Nozzle Type: without nozzle
• Lead Compliance: low lead
• Valve Type: ceramic valves
