T&S Brass B-0199-08-N05 Spray Device 0.5 GPM REPLACEMENT B-0199-08F-07

Product Description

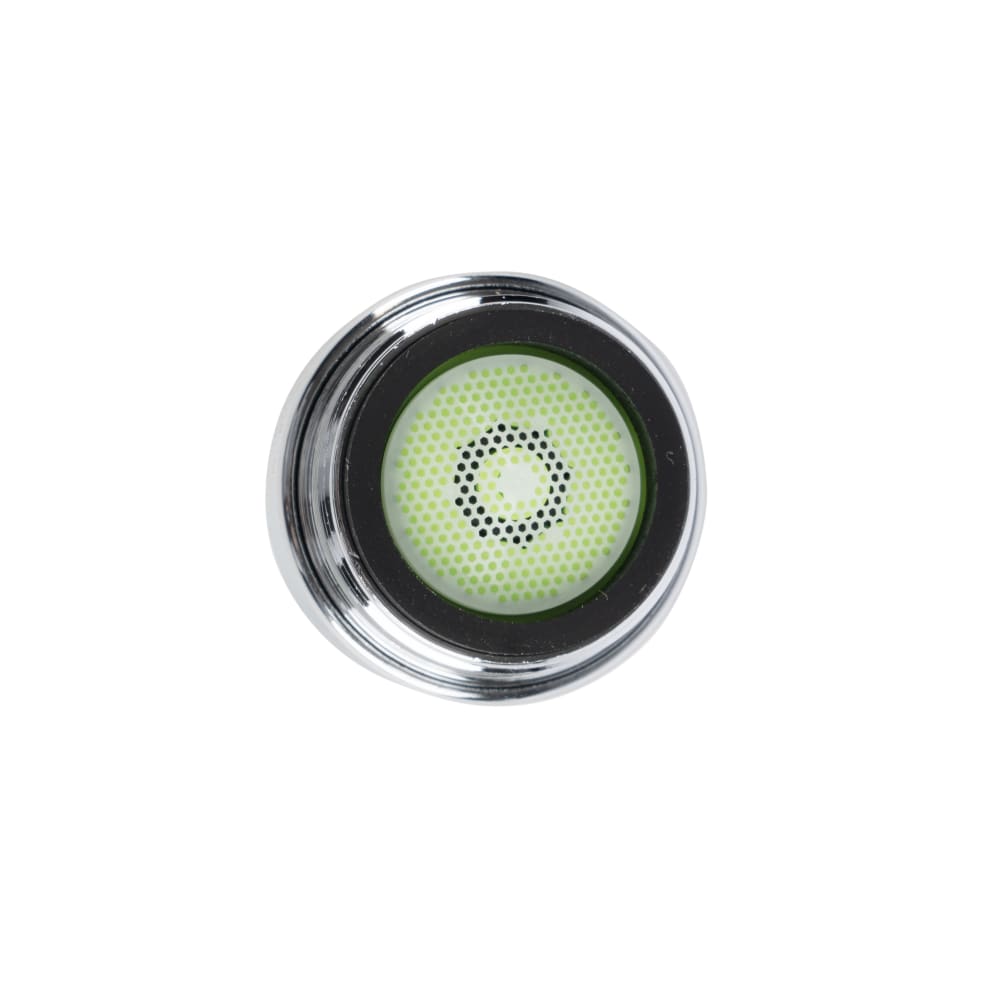

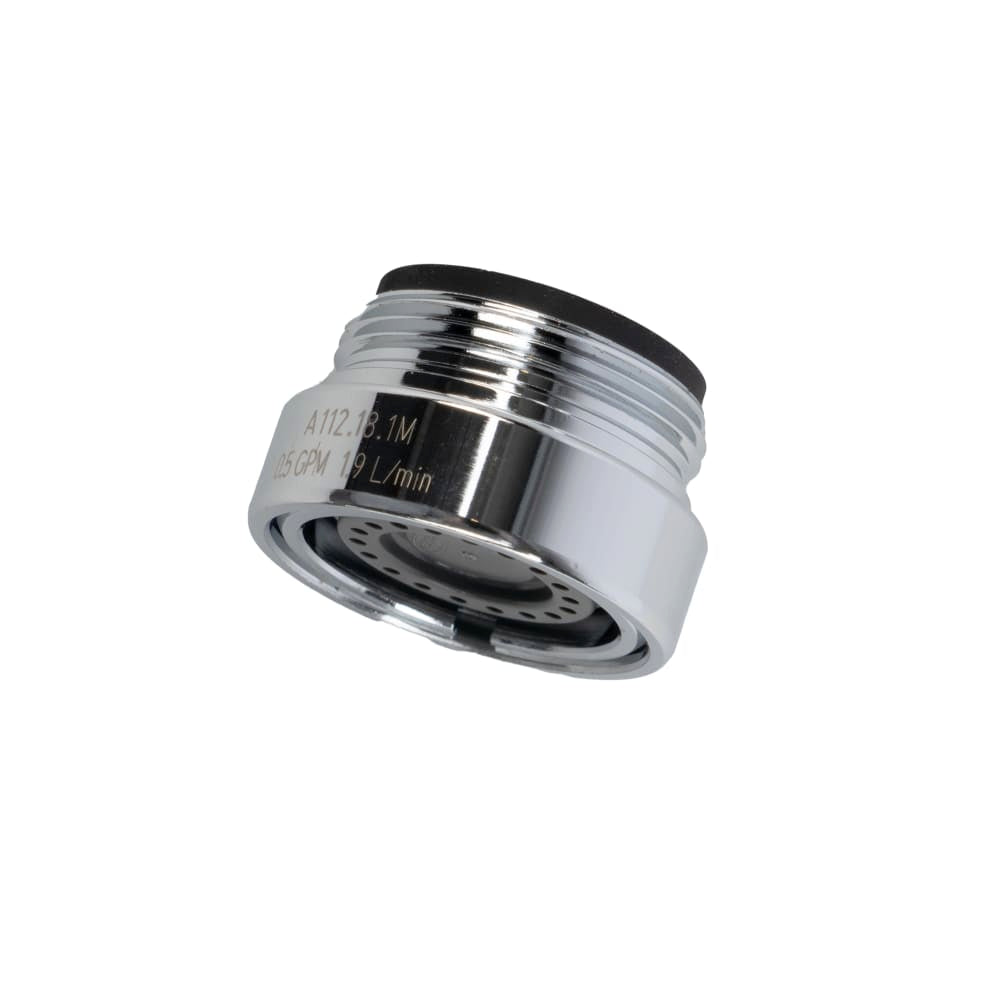

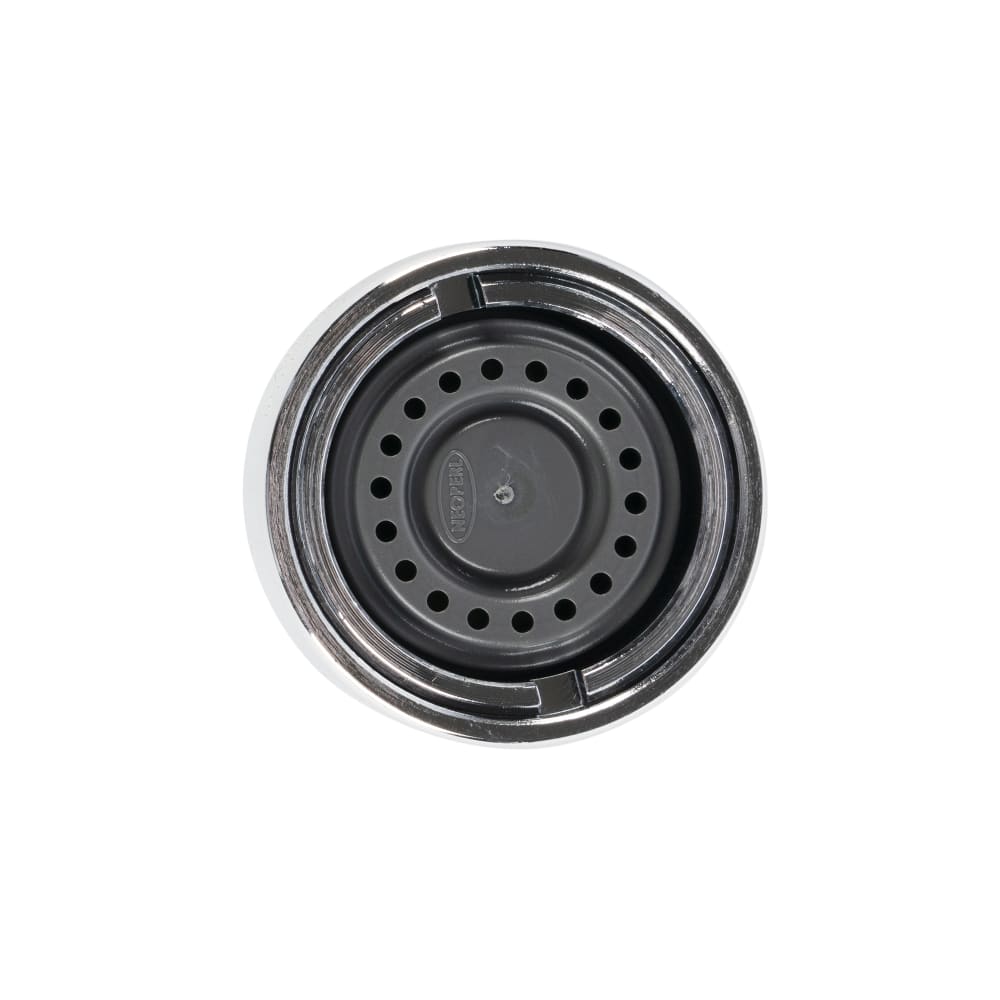

The T&S BRASS B-0199-08-N05 is a 0.5 GPM non-aerated spray device with a polished chrome plated brass body and 13/16-27 UN male thread. This spray device optimizes water flow for washing and cleaning purposes and includes a vandal-resistant outlet key for secure locking. It is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

• 0.5 GPM non-aerated spray device
• 13/16-27 UN male threads, Series 8
• Material: Polished chrome plated brass body

Product Highlights

This spray device is made with vandalism protection in mind and provides optimal faucet water dispensing. It replaces B-0199-08F-07.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0199-08-N05
• Country of Origin: USA

Technical Specifications

• Nozzle Flow: 0.5 GPM (1.89 L/min)
• Nozzle Outlet Type: Vandal Resistant
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Material: Polished chrome plated brass body
• Manufacturer: TS Brass
• Model #: B-0199-08-N05
• UPC Code: 671262742146
• Part #: B-0199-08-N05
• Low Lead Content: Yes
• Engineering Spec: 0.5 GPM non-aerated spray device with polished chrome plated brass body, 13/16-27 UN male thread. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.
• Warranty: One Year (Limited)
• California Energy Commission CEC-400 (Plumbing): Y
• Part Type: Spray Device
• Product: Parts & Accessories
• Product Type: Commercial Sinks
