T&S Brass B-0133-B Pre-Rinse Assy - Wal

Product Description

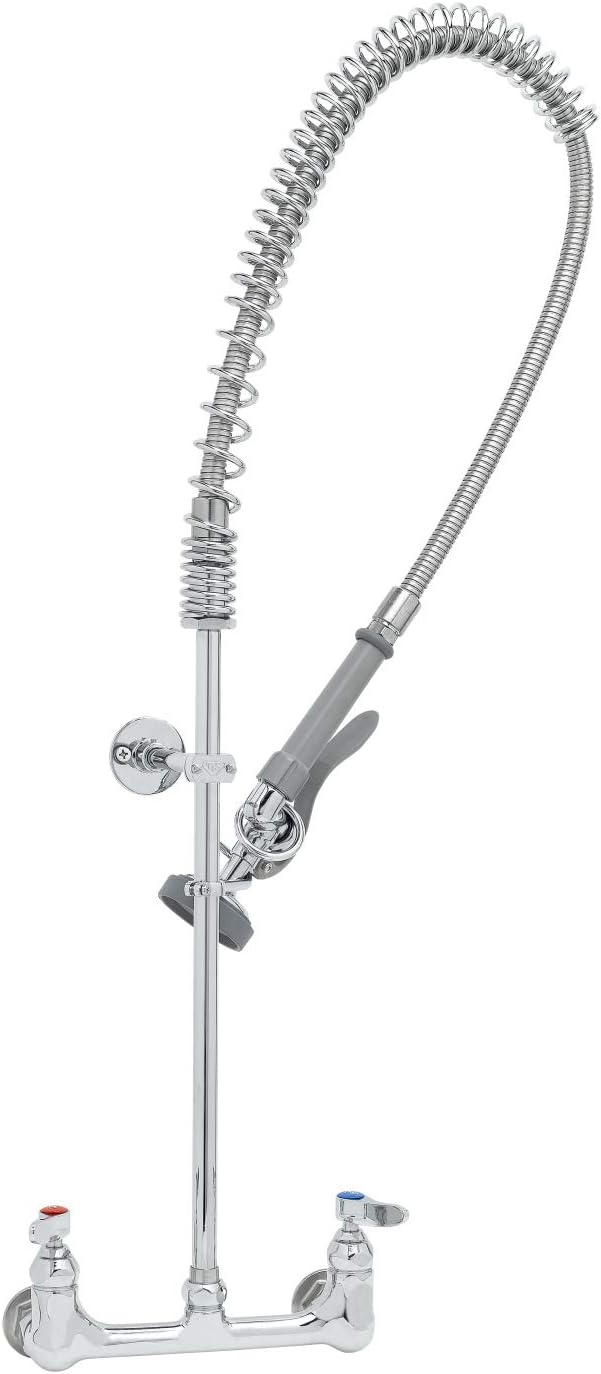

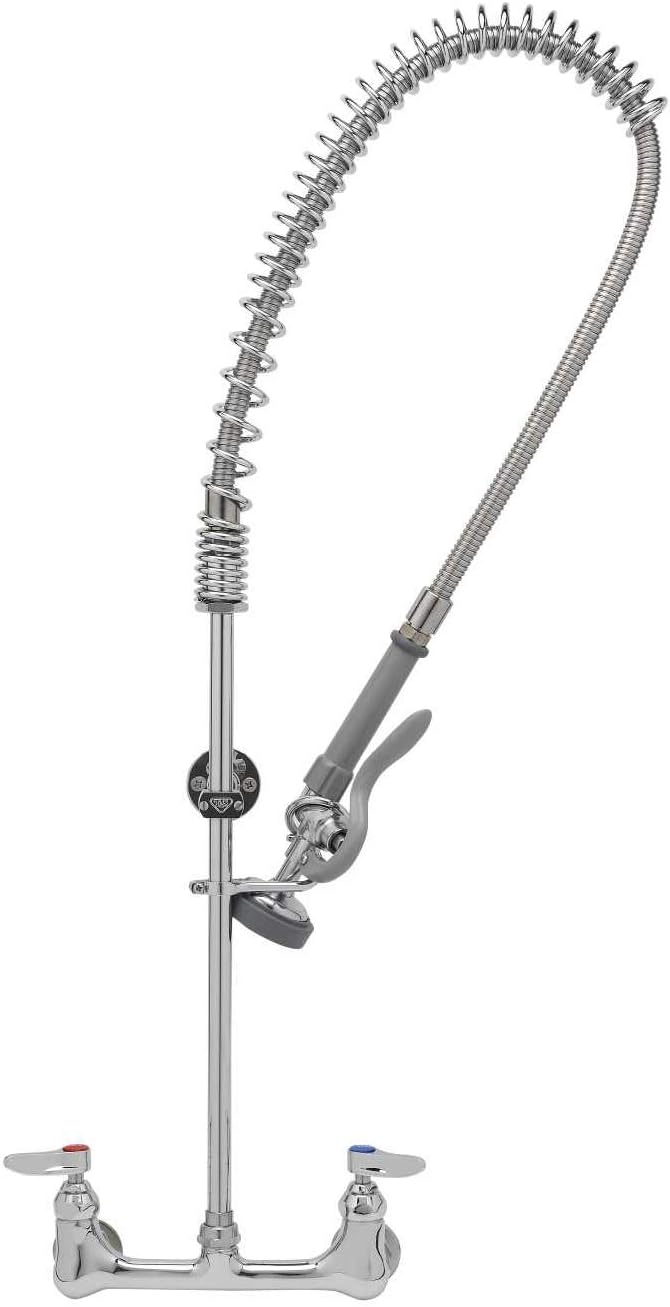

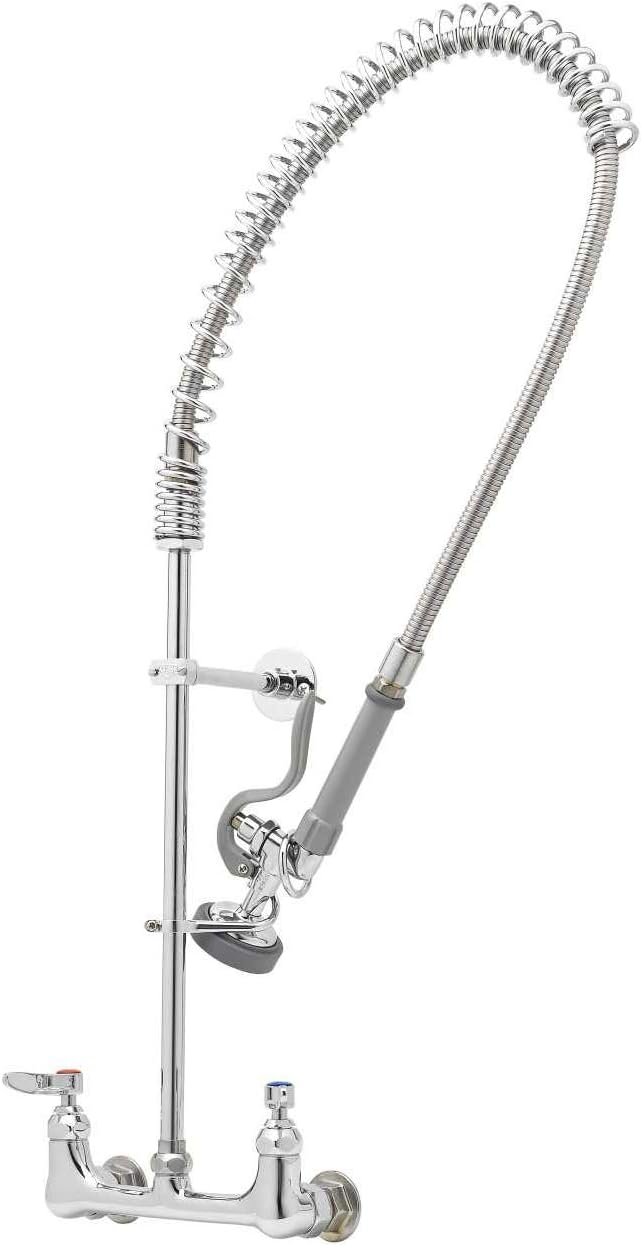

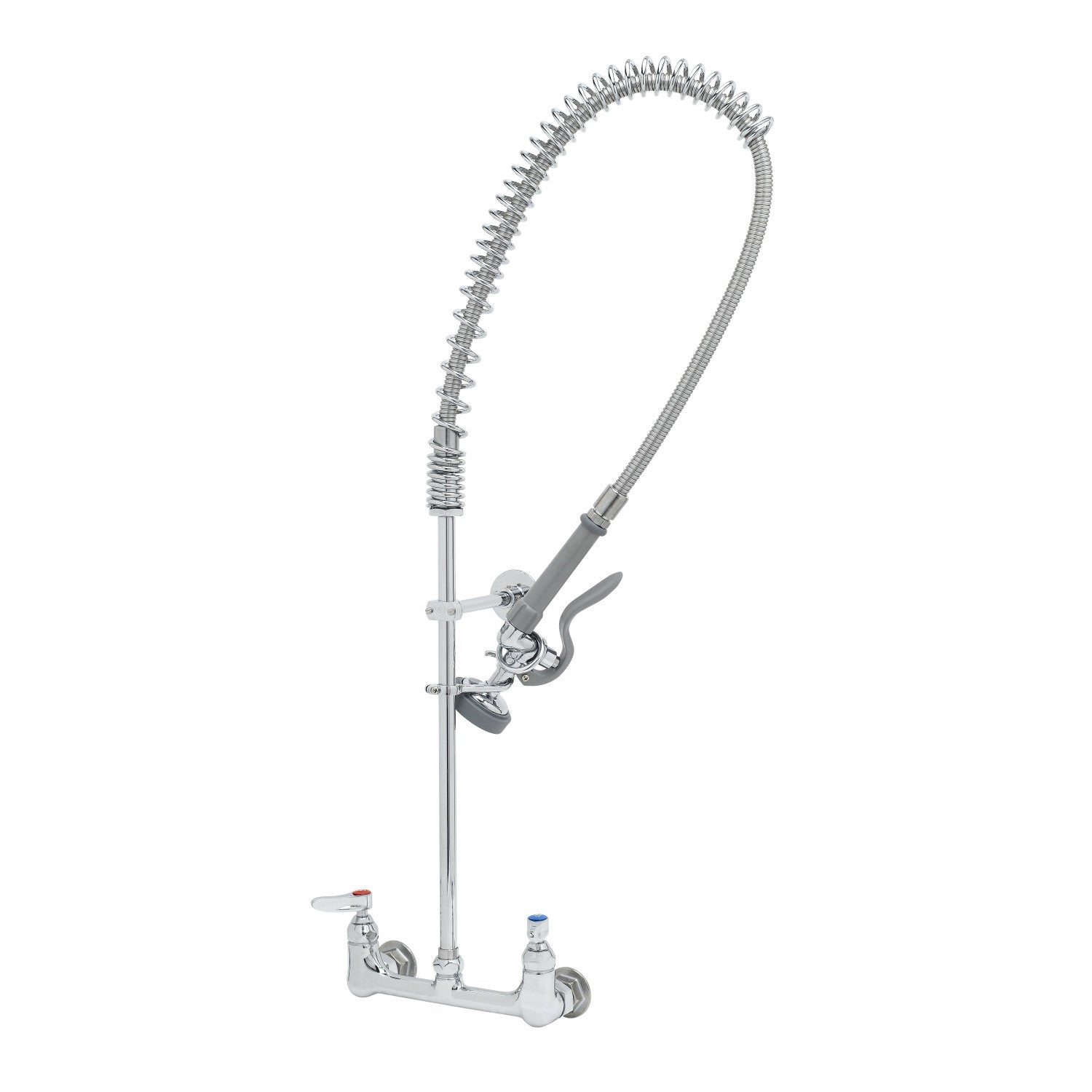

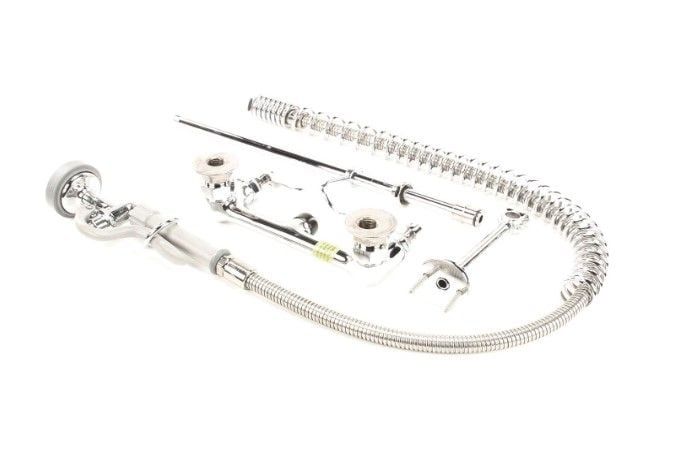

The T&S Brass B-0133-B Pre-Rinse Assembly is an OEM part. This wall-mounted pre-rinse assembly measures 12.5 x 24.75 x 28.5 inches (Length x Width x Height). It is designed for use in commercial kitchens and warewashing applications. The unit features a polished chrome finish and includes a wall bracket and sprayer.

• Wall mounted pre-rinse assembly
• OEM part
• Brass construction with polished chrome finish

Product Highlights

The T&S Brass B-0133-B pre-rinse assembly is ideal for commercial kitchens needing efficient and reliable pre-rinse functionality.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0133-B
• Country of Origin: United States

Technical Specifications

• AllPoints OEM Part Number: TSBB-0133-B
• OEM Part Number: B-0133-B
• OEM: T&S Brass
• Length: 12.5
• Width: 24.75
• Height: 28.5
• Hazardous: false
• Product Category: Parts
• Product Type: Wall Mount with Wall Bracket
• Brand: T&S BRASS
• Material: Brass Construction
• Finish: Polished Chrome
• Flow Rate: 1.42 Gallons Per Minute
• Centers: 8 in
• Inventory SKU: T&SB-B-0133-B
• Manufacturer: T&S Brass
• Model / MPN: B-0133-B
• Spray Valve Flow Rate: 1.15 GPM
• Hose Length: 44 Inches
• Inlets: 1/2" NPT female
• Faucet Height: 33 3/8"
• Faucet Width: 12 5/8"
• Faucet Mount: Wall
• Support Arm: With Spring Action Flexible Gooseneck
• Cartridge Type: 1/4-Turn Compression
• Faucet Center Size: 8 in
• Faucet Connection Size: 1/2 in
• Faucet Connection Type: FNPT
• Handle Type: Lever
• Item Name: Pre Rinse Mixing Faucet
• Pressure Rating: 20 - 125 psi
• Temperature Rating: 40 - 140 deg F
• Model#: B-0133-B
• Manufacturer Name: T&S Brass
• SKU: TB0133B
• Type: Double Handle
• Warranty: 3 Year
• Application: Faucet
• Max Temp (F): 140°F
• Min Temp (F): 40°F
• Standards Met: CSA B125.1, NSF 372, ASME A112.18.1, NSF 61, 2019 DOE PRSV-Class II
• Flow Rate (GPM): 1.2
• Max Pressure (PSI): 125
• Min Pressure (PSI): 20
• Item Package Quantity: 1
• Number Of Pieces: 3
• Number Of Holes: 2
• Spout Height: 13-1/2 in
• Spout Reach: 18 Inches
• Handle/Lever Placement: wall-mount
• Number of Handles: 2
• Handle Material: Brass
• Mounting Type: Wall Mount
• Special Features: Includes: B0107 spray valve and B0044H flexible stainless steel hose
• Usage: Comercial
• Included Components: Assembly Guide
• Batteries Included?: No
• Batteries Required?: No
• Warranty Description: : Three Year (Limited)
• Installation Type: Wall Mounted
• Category: Faucet
• Item [Specifications]: Pre Rinse Faucet
• Size [Specifications]: 18"
• Height [Specifications]: 33-5/16"
• Includes [Specifications]: Wall Bracket
• Material [Specifications]: Brass
• Mounting [Specifications]: Wall
• Standards [Specifications]: AB1953, CSA, NSF 61
• Connection [Specifications]: 1/2" NPT
• Drain Type [Specifications]: No Drain
• Valve Type [Specifications]: Eterna
• Faucet Type [Specifications]: Pre-Rinse Faucet
• Length (In.) [Specifications]: 44"
• Spout Length [Specifications]: 14 1/16 in
• Body Material [Specifications]: Brass
• CEC Compliant [Specifications]: CEC Compliant
• Faucet Finish [Specifications]: Chrome
• Connection Size [Specifications]: 1/2" NPT
• Faucet Operation [Specifications]: Manual
• Flow Outlet Type [Specifications]: Spray
• Faucet Activation [Specifications]: Manual
• Faucet Handle Type [Specifications]: Lever
• Faucet Spout Shape [Specifications]: Gooseneck Pull Out
• Faucet Body Material [Specifications]: Brass
• Replacement Cartridge [Specifications]: 4KPZ9
• Mounting Type (Faucet) [Specifications]: Wall
• Mounting Type - Faucet [Specifications]: Wall
• Flow Outlet Type (Faucet) [Specifications]: Spray
• Flow Outlet Type - Faucet [Specifications]: Spray
• Water Inlet Connection Size [Specifications]: 1/2 in
• Manufacturers Warranty Length [Specifications]: 1 yr
• Mounting Hole Center to Center [Specifications]: 8"
• Max. Mounting Hole Center Distance [Specifications]: 8 in
• Country of Origin (subject to change) [Specifications]: United States
• Replacement Cartridge Mfr. Model Number [Specifications]: 002711-40
• Green Certification or Other Recognition [Specifications]: California Energy Commission (CEC) Certified
• Spread: 8IN
• Shipping Weight: 12.000 LBS
• Liters per Minute: 5.38 LPM
• Mounting Location: Wall
• Riser Height: 18
• Gallons per Minute: 1.42 gal/min
• Inlet Connection: 1/2 in
• Wall Bracket Size: 6 in
• ADA Compliant: No
• Manufacturers Part Number: B-0133-B
• Certifications: ASME A112.18.1 / CSA B125.1, NSF/ANSI 61, AB1953-2006
• Body: 8 in Centers (203.2 mm)
• Body Mount: Wall
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Inlet: Adjustable Centers
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Spray Valve: B-0107 (1.15 GPM) (4.35 L/min)
• Spray Valve Flow: 1.15 GPM (4.35 L/min)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
