T&S Brass B-0133-ADF08-B Easyinstall Pre-Rinse, Spring Action, Wall Mount, 8 inches Centers, 8 inches Add-on Faucet, Wall Brkt

Product Description

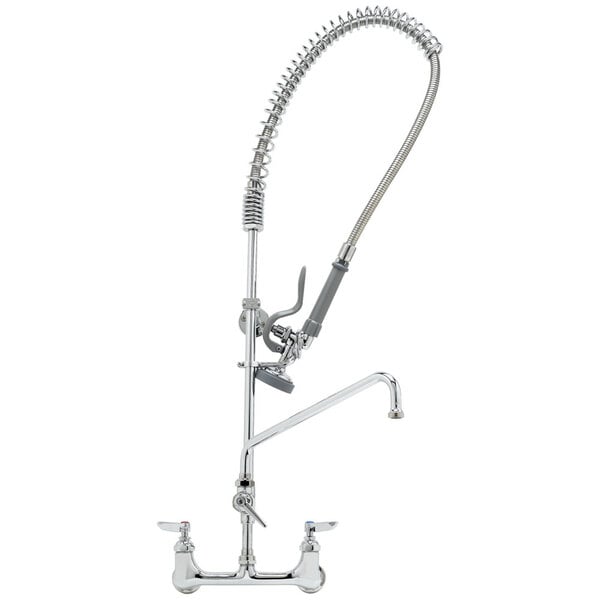

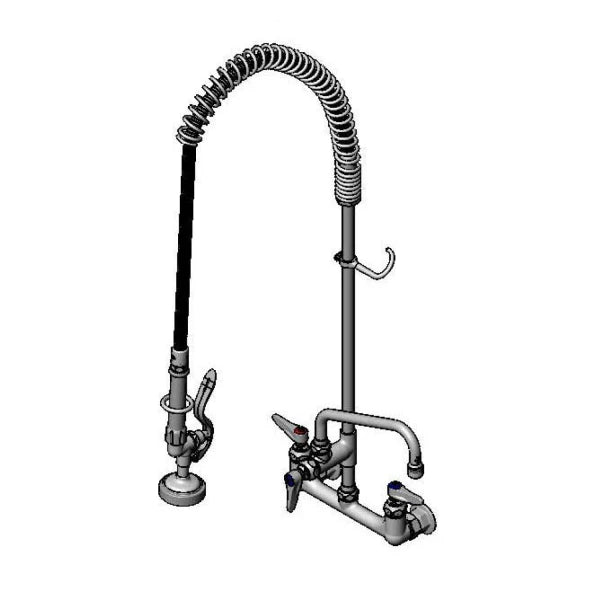

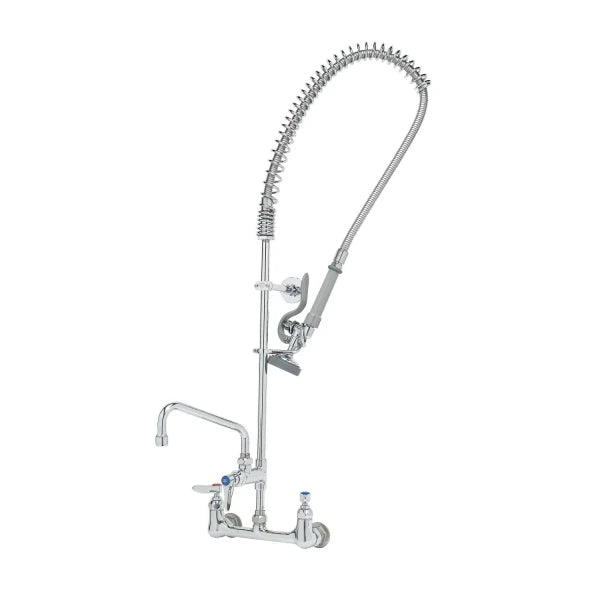

The T&S Brass B-0133-ADF08-B Easyinstall Pre-rinse features spring action and wall mounting with 8" centers, along with an 8" add-on faucet and wall bracket. It features an 8" wall mount mixing faucet with a polished chrome plated brass body and a 44" flexible stainless steel hose with a heat resistant handle. The unit includes a 1.15 GPM spray valve.

• Features a 1.15 GPM spray valve
• Includes a 1/2" NPT female eccentric inlets with 2" flanges
• Has quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water

Product Highlights

This pre-rinse unit offers a durable chrome plated brass construction, adjustable centers, and a flexible stainless steel hose for versatile warewashing applications.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: B-0133-ADF08-B
• Country of Origin: US

Technical Specifications

• Description: Easyinstall Pre-rinse, Spring Action, Wall Mount, 8" Centers, 8" Add-on Faucet, Wall Brkt
• Manufacturer: T&S Brass
• PDW MFR CAT: B-0133-ADF08-B
• Pittman #: 218713
• Manufacturer #: B-0133-ADF08-B
• Parts Town #: TSB-0133-ADF08-B
• Previous Part #: TSB0133ADF08B
• Units: Each
• Length: 27.5 in / 69.85 cm
• Width: 12 in / 30.48 cm
• Height: 4 in / 10.16 cm
• Body: 8 in Centers (203.2 mm)
• Body Mount: Wall
• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Finish: Polished Chrome
• Handle: Lever
• Inlet: Adjustable Centers
• Material: Brass Construction
• Nozzle: Swivel
• Nozzle Outlet Type: Laminar Flow Device
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Spray Valve: B-0107 (1.15 GPM) (4.35 L/min)
• Spray Valve Flow: 1.15 GPM (4.35 L/min)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Hose Length: 44 Inches
• Faucet Width: 12 5/8 Inches
• Faucet Height: 37 9/16 Inches
• Add-On Faucet: 8 Inches
• Add-On Type: Swing
• Cartridge Type: Compression
• Faucet Centers: 8 Inches
• Mounting Style: Wall Mounted
• Mounting Type: Adjustable
• Pre Rinse Unit Type: Hose and Spring
• Pressure Rating: 125 PSI
• Temperature Rating: 40 - 140 Degrees F
• Type: Pre-Rinse Units
• Water Inlet Size: 1/2 Inches
• Model #: B-0133-ADF08-B
• UPC Code: 671262593656
• Mount Dimension: 8"
• Mounting Holes: 2
• Pre-Rinse Style: Overhead Spring
• Wall Bracket: 6" Wall Bracket
• Spray Valve Flow Rate: 1.42 GPM
