Product Description

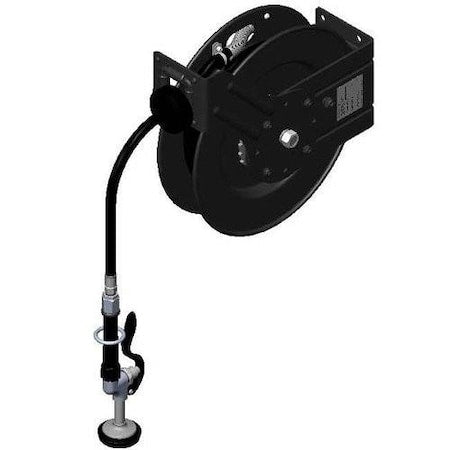

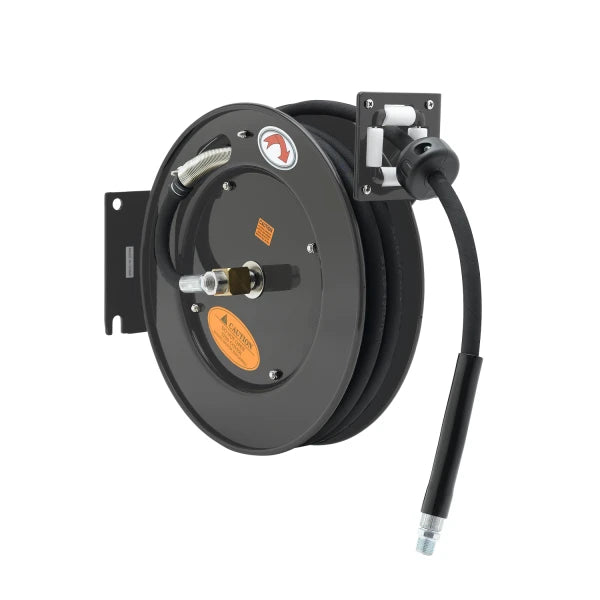

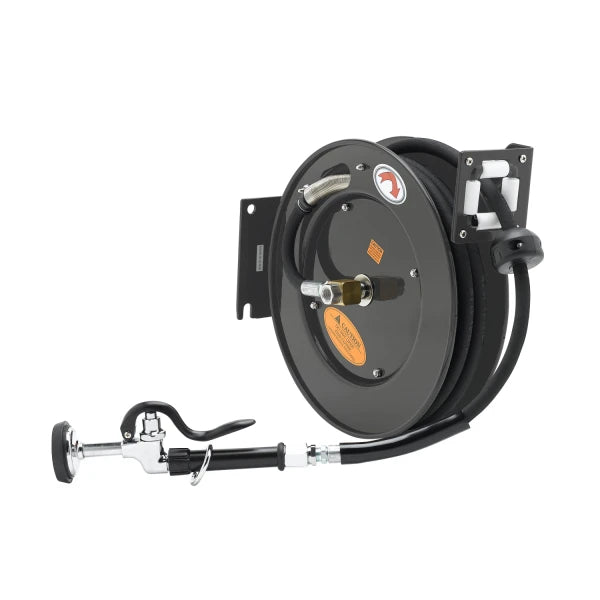

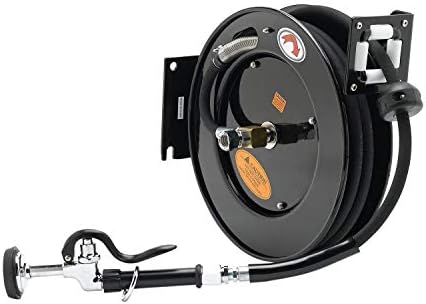

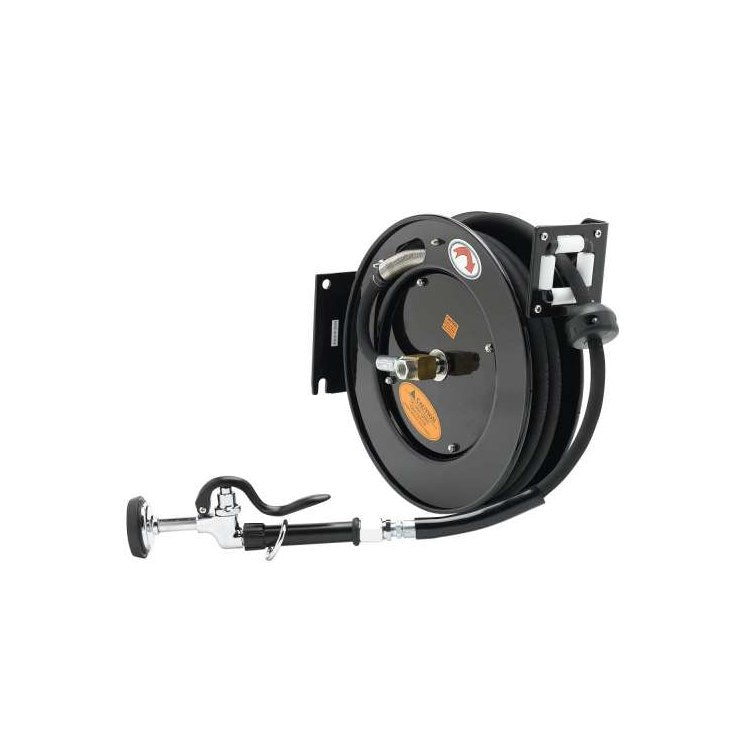

The T&S Brass 5HR-232-01 hose reel features an open powder-coated steel design with a 3/8" x 35' hose. It includes a ratcheting system, multi-fit bracket, and adjustable hose bumper. The reel also features a 3/8" NPT female inlet and Equip hi-flow spray valve with a flow rate of 2.27 GPM at 60 psi.
- 3/8" NPT female inlet
- 3/8" x 35' hose
- Adjustable hose bumper
Product Highlights
Open powder-coated steel hose reel with high flow spray valve, ideal for various cleaning and rinsing applications.
Product Information
Standard Information
-
Brand: T&S BRASS
-
Manufacturer Part Number: 5HR-232-01
-
Country of Origin: China
Technical Specifications
-
OEM Part Number: 5HR-232-01
-
Product: 15102
-
Product (dash): 15-102
-
AllPoints OEM Part Number: TSB5HR-232-01
-
OEM: T&S Brass
-
Unit of Stock: EA
-
Length: 8.0
-
Width: 17.0
-
Height: 19.0
-
Hazardous: false
-
Product Category: Equipment
-
Product Type: OEM
-
Shipping Weight: 34.050 LBS
-
Country of Origin (subject to change): China
-
Enclosed/Open: Open
-
Feature: EPAct2005 Non-Compliant
-
Finish: Coated Steel
-
Hose Length: 35ft (10.7 m)
-
Hose Size: 3/8 in (9.5 mm)
-
Material: Brass Construction
-
Pressure Max: 125 psi (8.62 bar)
-
Pressure Min: 20 psi (1.38 bar)
-
Spray Valve: Equip Hi-Flow Spray Valve
-
Spray Valve Flow: 2.27 GPM (8.59 L/min)
-
Temperature Max: 140 F (60℃)
-
Temperature Min: 40 F (4.44℃)
-
Installation Type: Wall Mount
-
Operation Mode: Manual
-
Part #: 5HR-232-01
-
Part Description: Hose Reel, Open, Powder Coated Steel, 35' x 3/8 ID Hose with Spray Valve
-
UPC: 671262581912
-
Harmonizing No: 8424.30.9000
-
Mount Type (Wall or Deck): Wall
-
Inlets: 3/8 NPT Female
-
Engineering Spec: Open epoxy coated steel hose reel with high flow spray valve, 3/8 x 35' hose, ratcheting system, multi-fit bracket, adjustable hose bumper and 3/8 NPT female inlet.
-
Brand/Trade Name: Equip
-
Assembled Dimensions - H (In): 15
-
Assembled Dimensions - W (In): 5.25
-
Assembled Dimensions - D (In): 15.313
-
Product Finish: Coated Steel
-
Warranty: One Year (Limited)
-
Pressure: 20 - 125 psi
-
Temperature: 40 F - 140 F
-
Flow Rate: 2.27 GPM @ 60 psi
-
Manufacturer: TS Brass
-
Model #: 5HR-232-01
-
UPC Code: 671262581912
-
Outlet: 3/8" NPT male outlet
-
Hose: 3/8" x 35' hose
-
Bumper: Adjustable hose bumper
-
Reel and Bracket Material: Material: Powder coated steel open reel and wall bracket
-
Mounting: Multi-fit bracket for wall, ceiling or under counter mounting
-
Reel: Open powder coated hose reel
-
System: Ratcheting system holds the length of hose until a slight tug to retract automatically
