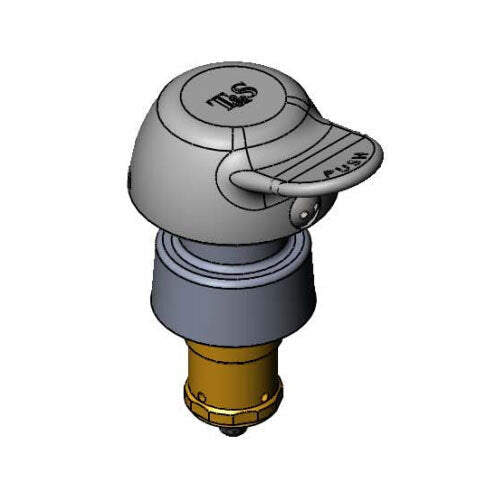

T&S Brass 238AB-PA 238A Metering Cartridge with Blank Pivot Action Handle (Each)

Product Description

T&S Brass 238AB-PA is a 238A metering cartridge with a blank pivot action handle designed for use in compatible T&S faucets. The chrome plated brass cartridge delivers a serrated-tip nozzle flow of 3.14 GPM (11.88 L/min), operates from 20 to 125 psi and 40 F (4.44 C) to 140 F (60 C), and features an adjustable metering cycle of 10 to 30 seconds. Includes filter washer, vandal resistant screw, and spanner bit. Certified to ASME A112.18.1, CSA B125.1, NSF 61 Section 9, NSF/ANSI 372, and meets ADA ANSI/ICC A117.1 requirements.

• Adjustable metering cycle 10 to 30 seconds; metering cartridge design for timed water delivery
• Nozzle flow 3.14 GPM (11.88 L/min); operating pressure 20 to 125 psi and temperature 40 F (4.44 C) to 140 F (60 C)
• Chrome plated brass body and cap; includes filter washer, vandal resistant screw, and spanner bit; certified to ASME, CSA, NSF standards

Product Highlights

Metering replacement cartridge for T&S faucets with adjustable 10–30 second cycle, 3.14 GPM flow, chrome plated brass construction, and ASME/CSA/NSF/ADA compliance.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: 238AB-PA
• Country of Origin: United States

Technical Specifications

• Brand: T&S Brass
• Manufacturer Part Number: 238AB-PA
• Model: 238A
• Product Type: Metering Cartridge
• Cartridge Type: Metering
• Handle Type: Blank pivot action with vandal resistant screw
• Nozzle Flow: 3.14 GPM (11.88 L/min)
• Pressure Range: 20 psi to 125 psi (1.38 bar to 8.62 bar)
• Temperature Range: 40 F (4.44 C) to 140 F (60 C)
• Metering Cycle: Adjustable, 10 to 30 seconds
• Material: Chrome plated brass body and chrome plated metal cap
• Filter: Filter washer included
• Included Tools: Spanner bit included
• Nozzle Outlet: Serrated tip
• Certifications: ASME A112.18.1; CSA B125.1; NSF 61 Section 9; NSF/ANSI 372
• ADA Compliance: Meets ADA ANSI/ICC A117.1 requirements
• Intended Use: Replacement cartridge for T&S Brass faucets and fixtures
• Box Dimensions: 4.63 x 3.06 x 4.06 inches
• Product Dimensions: 3 x 4.5 x 4 inches
• Item Weight: 1 lb
• UPC: 400011182489
• ASIN: B00E7TJ86C
• Patent: 5655748
• Country of Origin: Made in America
