Product Description

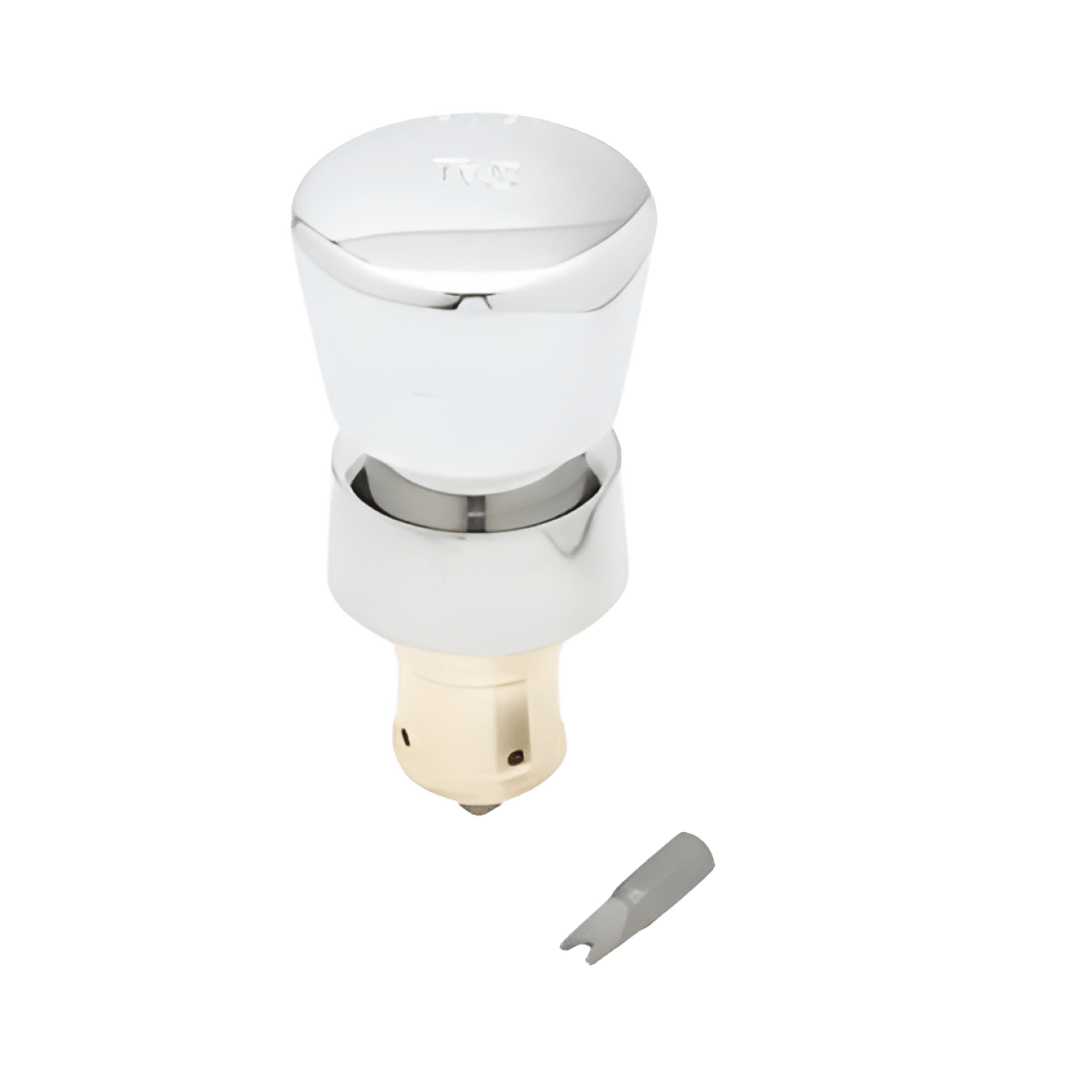

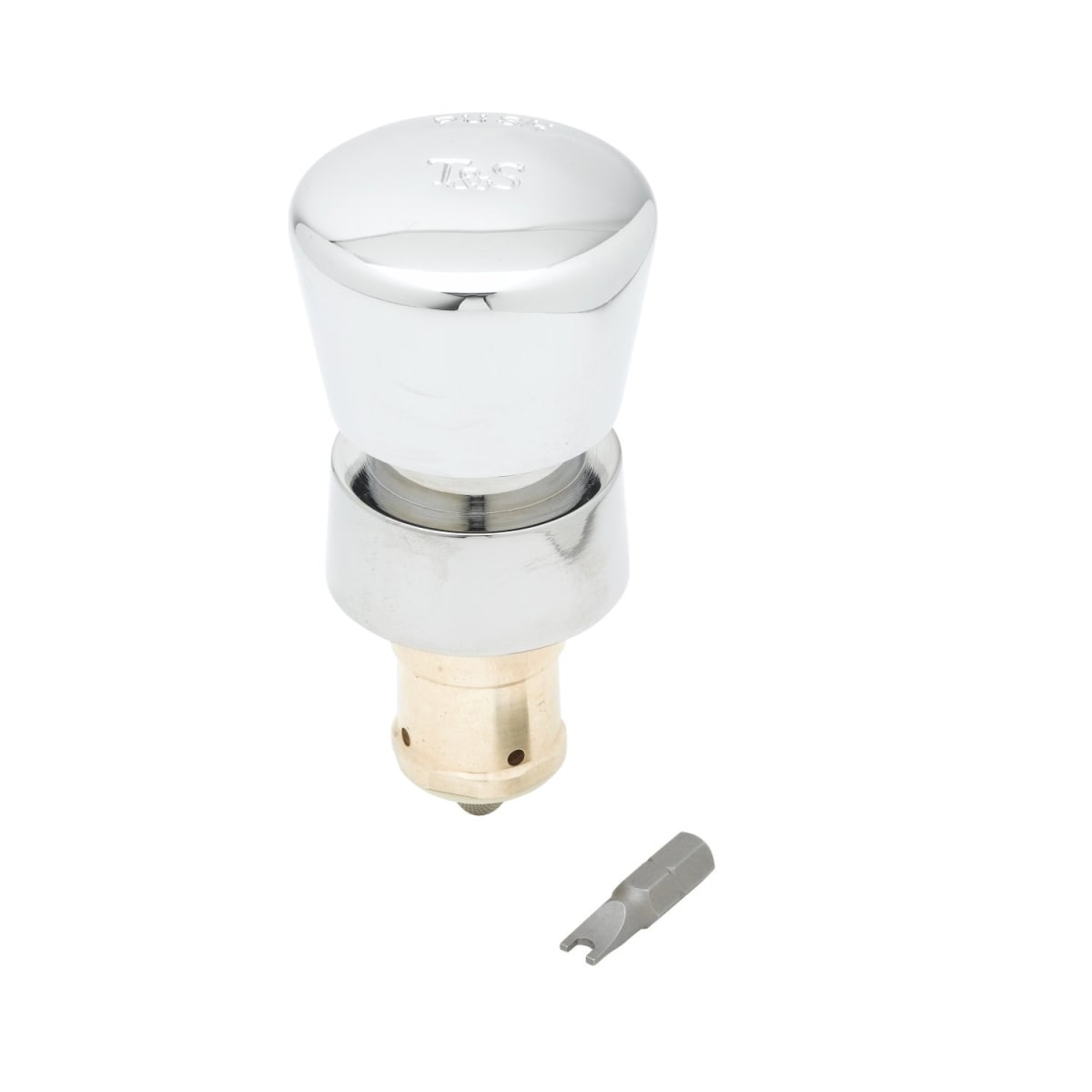

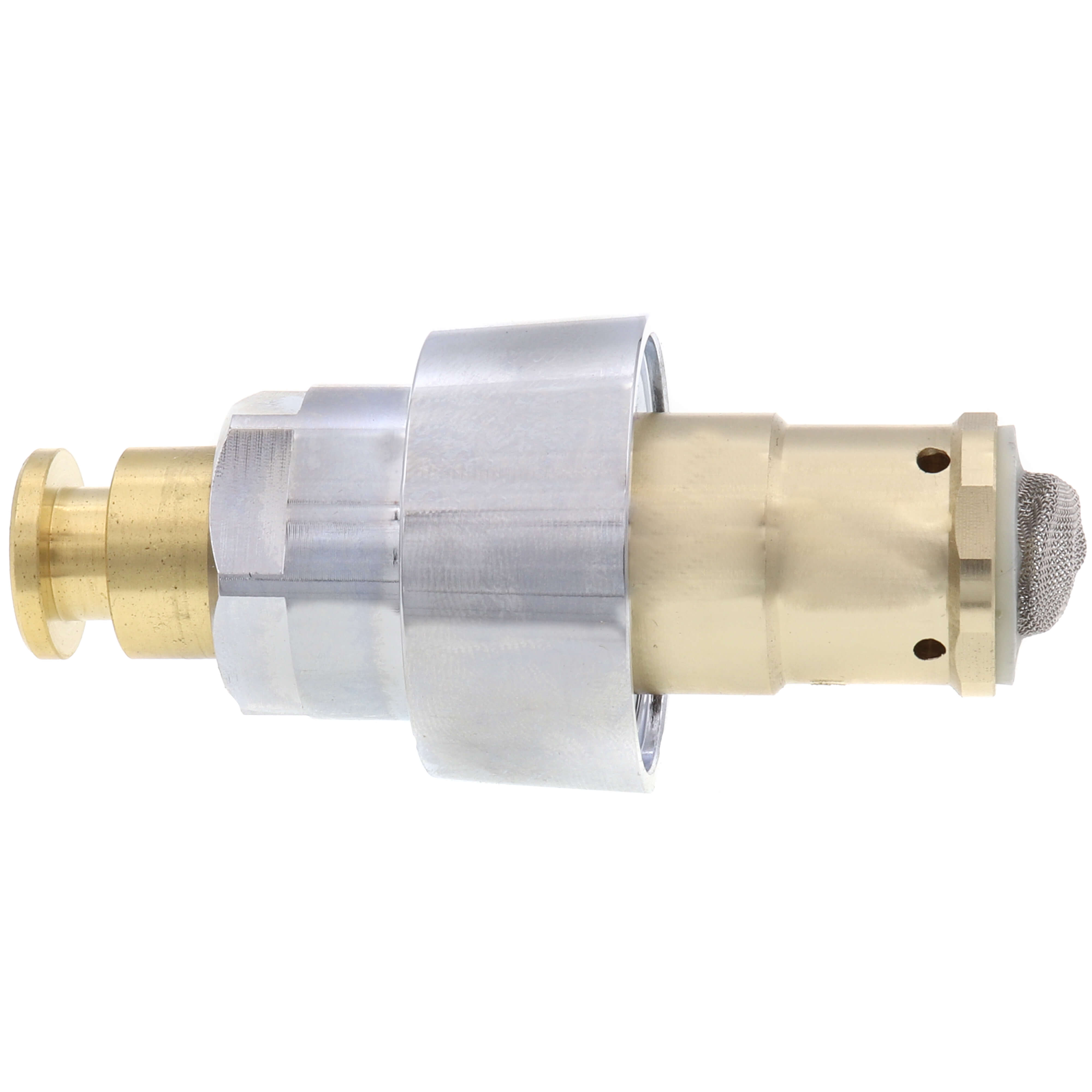

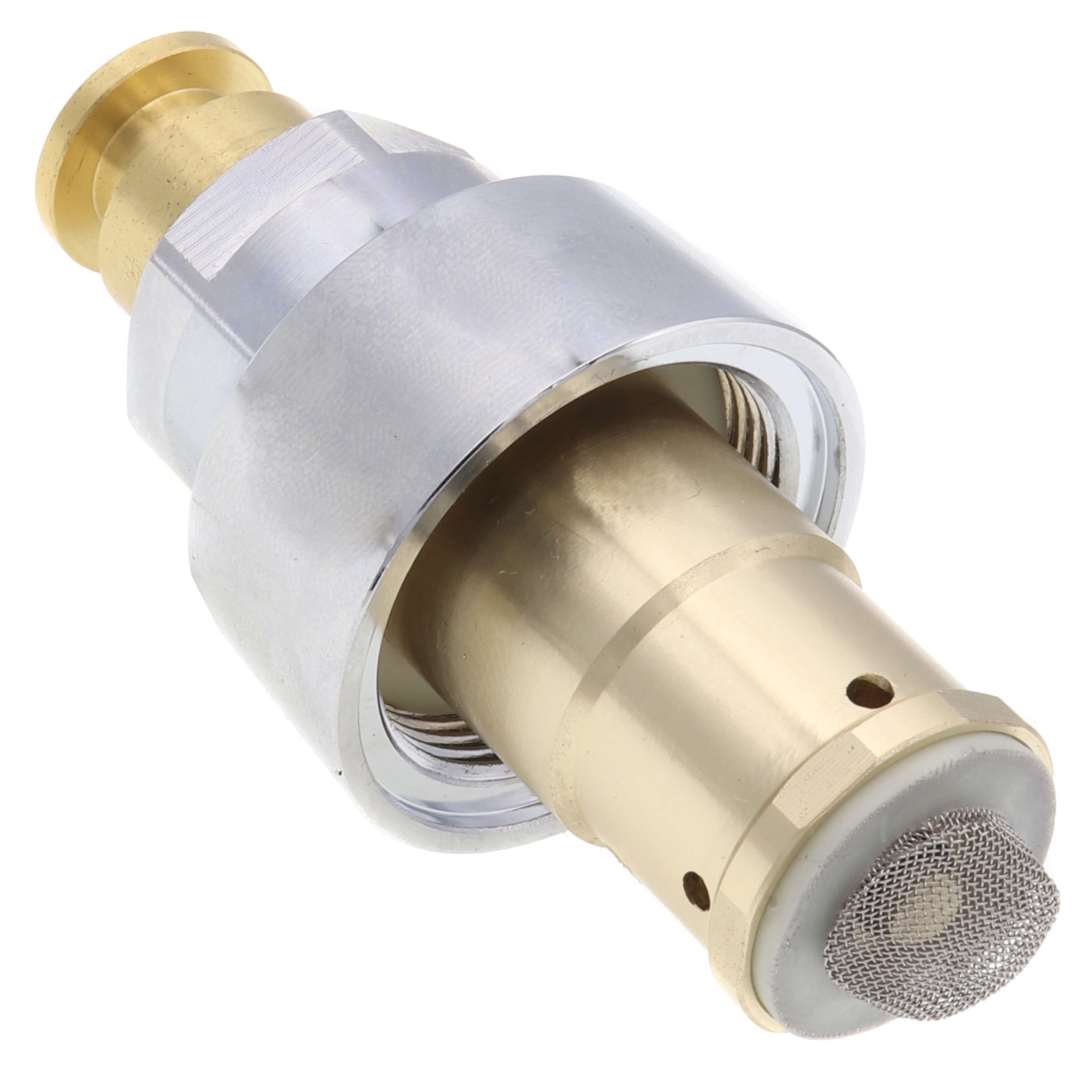

T&S Brass 238AB is a metering cartridge designed for faucets. This cartridge features a chrome plated finish and a flow rate of three point fourteen gallons per minute. It complies with ADA requirements, making it suitable for various applications. It includes a blank push button cap, a vandal-resistant screw, and a filter washer for enhanced performance.
- Flow rate of three point fourteen gallons per minute
- Primarily commercial use with ADA compliance
- Includes push button cap and vandal-resistant screw
Product Highlights
This cartridge provides reliable functionality and durability in commercial environments.
Product Information
Standard Information
-
Brand: T&S Brass & Bronze Works
-
MPN: 238AB
Technical Specifications
-
Cartridge Type: Metering
-
Material: Brass
-
Finish Color: Chrome Plated
-
Dimensions: One and three-quarter inch diameter x three and five-sixteenths inch height
-
Pressure Range: Twenty to one hundred twenty-five psi
-
Temperature Range: Forty to one hundred forty degrees Fahrenheit
-
Warranty: One Year (Limited)
-
Standards: ASME A112.18.1/CSA B125.1, NSF 61, NSF/ANSI 372, ANSI A117.1 (ADA)
