T&S Brass 238A Metering Cartridge Self-Closing 3.14 gpm Replacement

Product Description

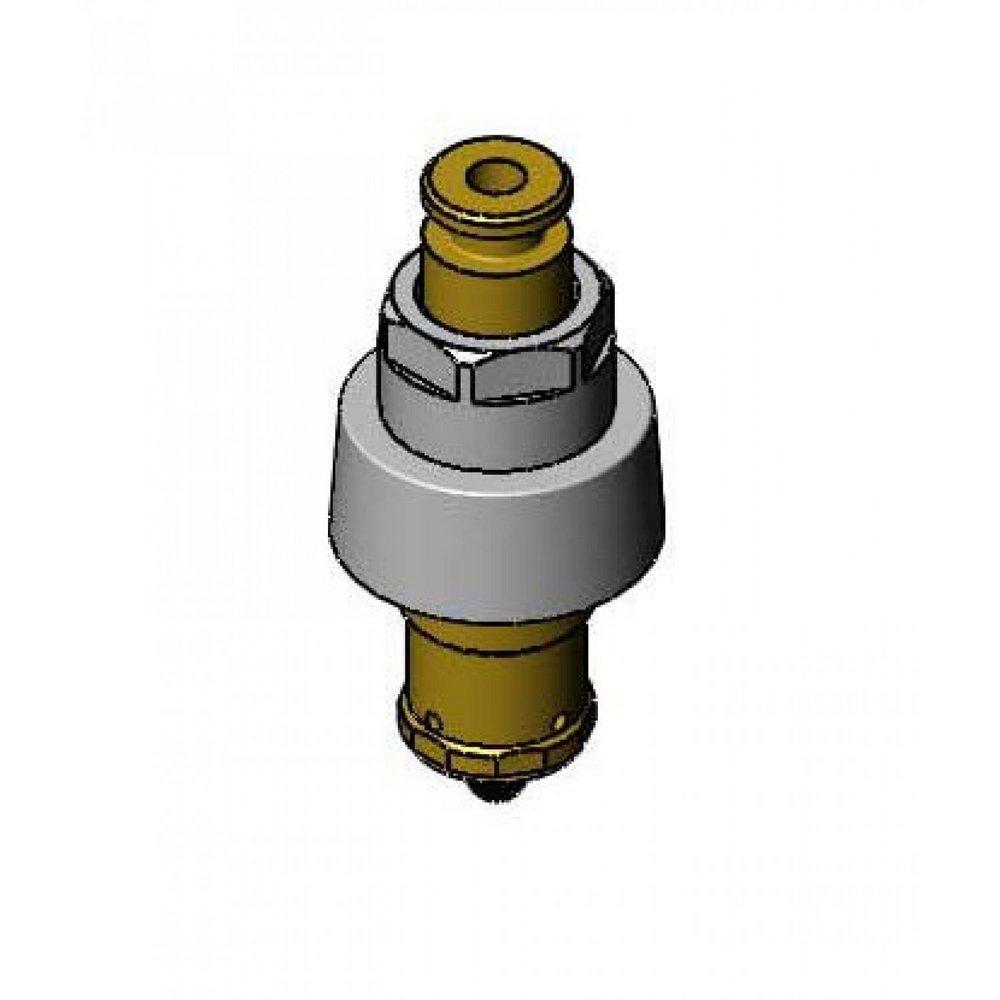

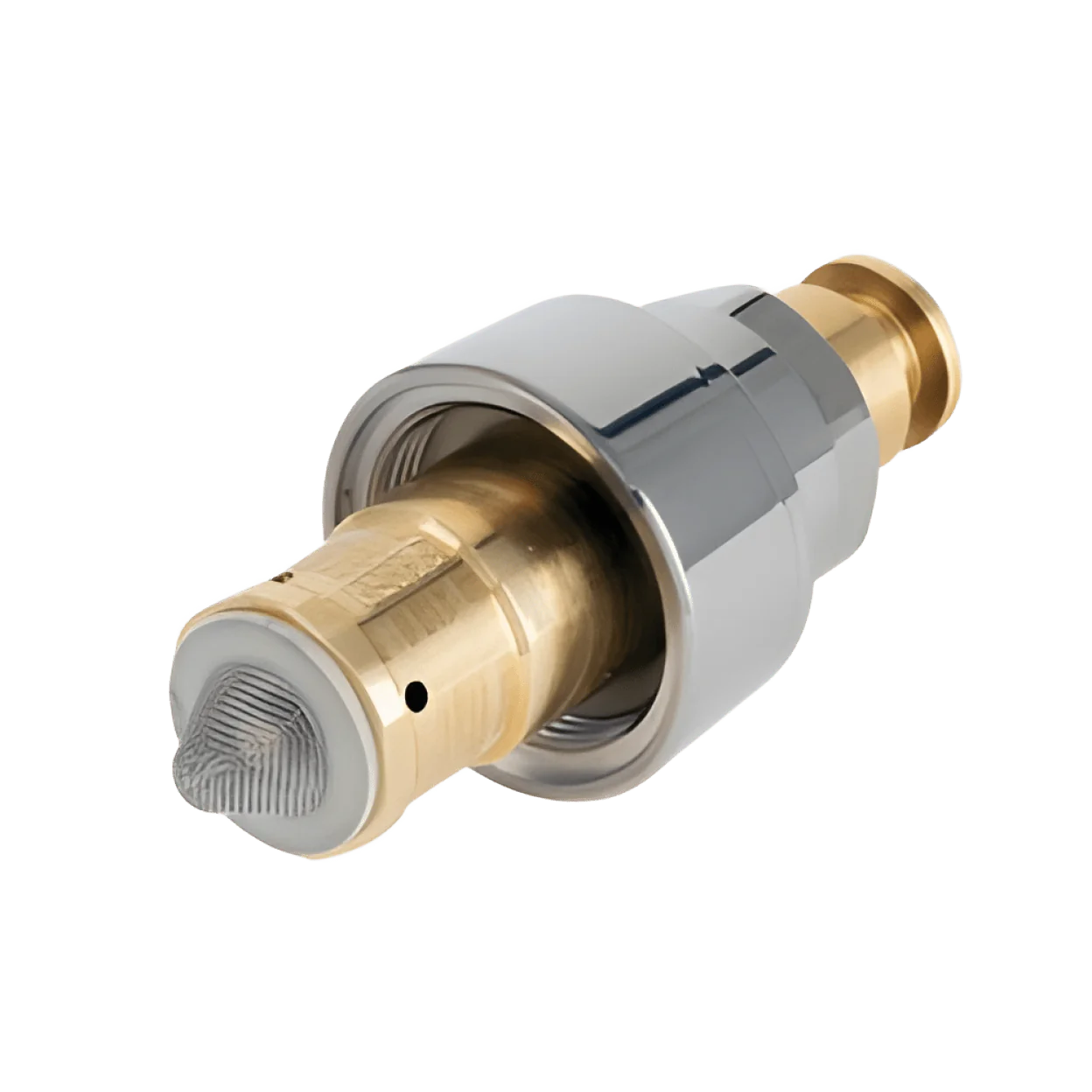

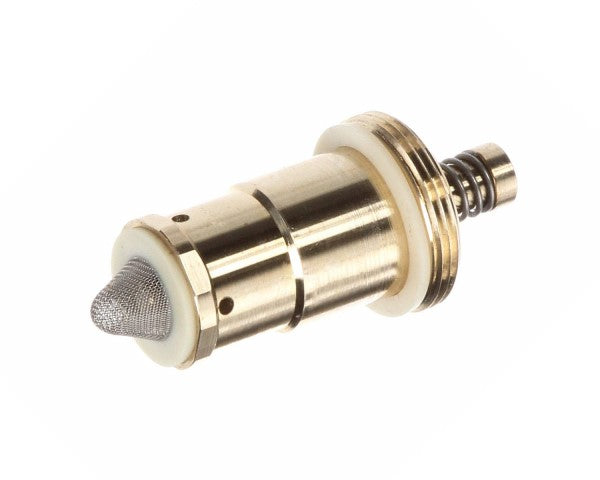

The T&S Brass Metering Cartridge 238A is a self-closing metering cartridge designed for reliable performance in faucet applications. This cartridge features an adjustable metering cycle that can last from ten to thirty seconds. It includes a filter washer and is crafted from durable chrome-plated brass.

• Adjustable metering cycle
• Flow rate of three point fourteen gallons per minute
• Self-closing design enhances efficiency

Product Highlights

This metering cartridge is perfect for high-traffic areas where water conservation is essential. It complies with various standards including ANSI A117.1 for ADA accessibility and NSF 61 for safe drinking water.

Product Information

Standard Information

• Brand: T&S Brass
• MPN: 238A

Technical Specifications

• Type: Self-Closing
• Flow Rate: 3.14 gpm
• Material: Chrome plated brass
• Diameter: 1.5 inches
• Height: 3 inches
• Temperature Rating: 40 to 140 degrees F
• Working Pressure: 20 to 125 psi
• Warranty: 1 Year Limited
• Standards: ANSI A117.1 (ADA), ASME A112.18.1, CSA B125.1, NSF 61
