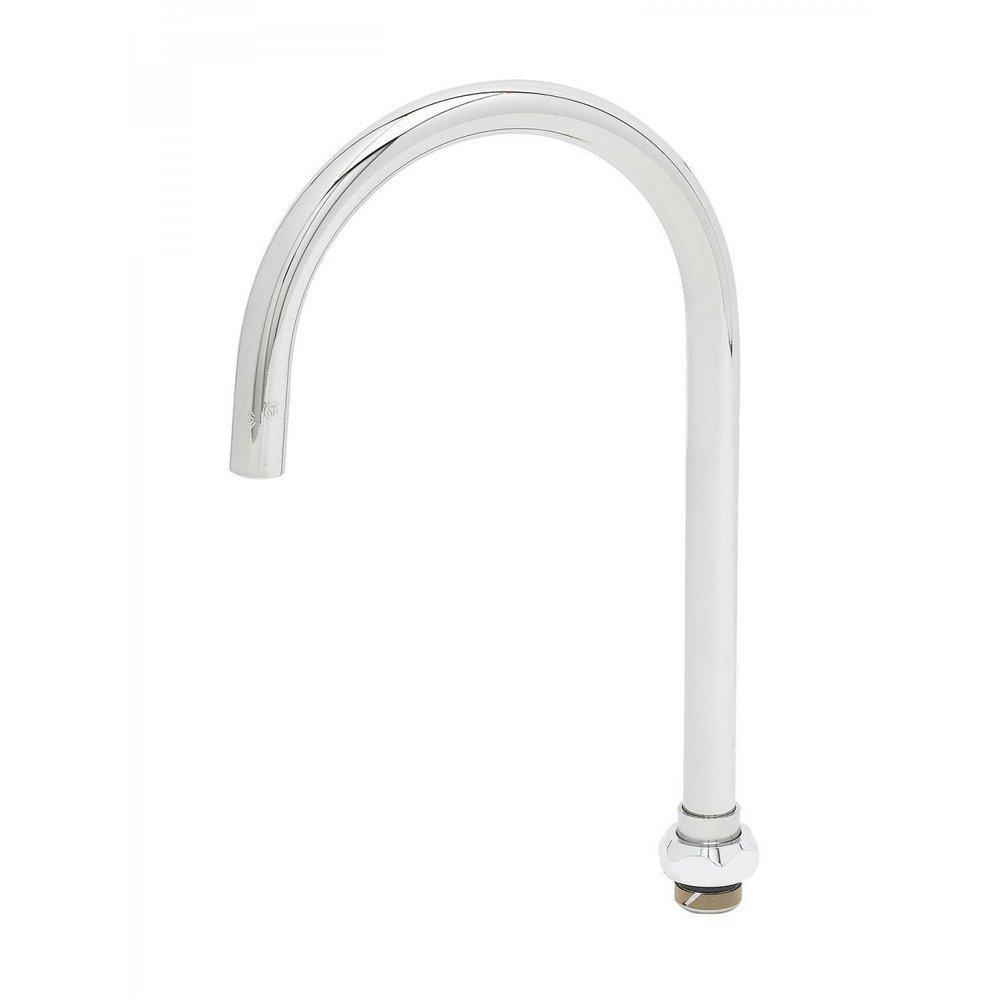

T&S Brass 133XP Swivel Gooseneck 5-11/16 inches Spread, 8-13/16 inches Height, 4-13/16 inches Clearance, Plain End Tip

Product Description

The T&S BRASS 133XP is a swivel gooseneck with a 5-11/16" spread, 8-13/16" height, and 4-13/16" clearance, featuring a plain end tip outlet. It is designed to fit all T&S swivel outlet faucets and is constructed from chrome-plated brass. This gooseneck is certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.

• Plain end outlet
• Fits all T&S swivel outlet faucets
• 5 11/16" swivel gooseneck

Product Highlights

Swivel gooseneck with plain end tip, designed for T&S swivel outlet faucets. Constructed from chrome plated brass.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: 133XP

Technical Specifications

• Material: Chrome plated brass tubular spout
• Fits: All T&S swivel outlet faucets
• Outlet: Plain end
• Nozzle: Swivel
• Nozzle Flow: 26.3 GPM (99.55 L/min)
• Nozzle Outlet Type: Plain End
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
