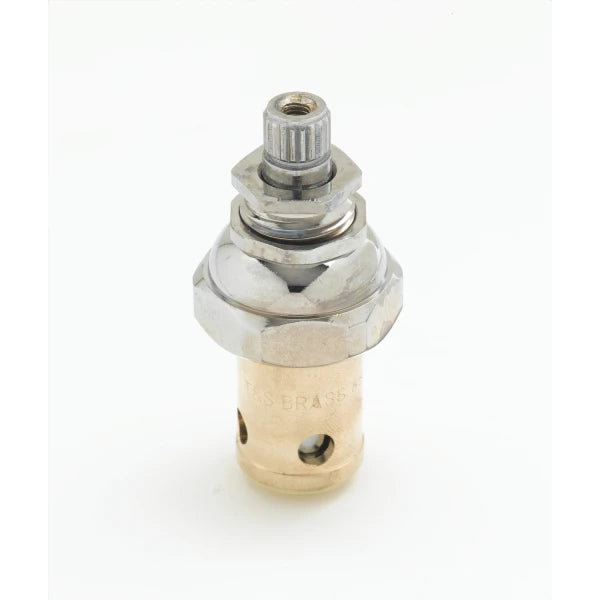

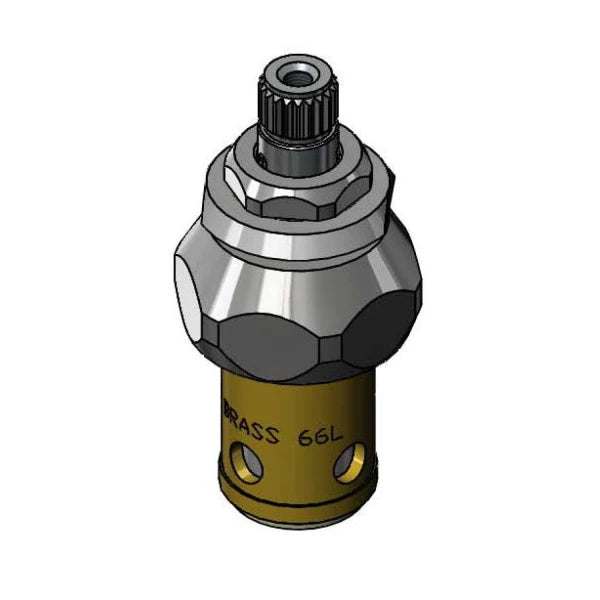

T&S Brass 006477-40NS Spindle Assembly, Quarter-Turn Eterna w/ Spring Check CWS Escutcheon Bonnet, LTC (Cold)

Product Description

The T&S BRASS 006477-40NS spindle assembly features a quarter-turn Eterna compression cartridge with a spring check and escutcheon bonnet. This LTC (Cold) assembly is certified to ASME A112.18.1 / CSA B125.1, NSF 61-Section 9, and NSF 372. It is designed for easy installation and reliable, leak-free operation.

• Quarter-turn Eterna compression cartridge with spring check to prevent cross flow of water
• Certified to ASME A112.18.1 / CSA B125.1
• NSF/ANSI 372 (Lead Content)

Product Highlights

Eterna spindle assembly with quarter-turn cartridge, spring check, and escutcheon bonnet ensures reliable, leak-free operation.

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: 006477-40NS
• Country of Origin: America

Technical Specifications

• Cartridge-Spindle: 1/4 Turn Compression
• Feature: Spring Check
• Nozzle Flow: 11.25 GPM (42.58 L/min)
• Pressure Max: 125 psi (8.62 bar)
• Pressure Min: 20 psi (1.38 bar)
• Temperature Max: 140 F (60℃)
• Temperature Min: 40 F (4.44℃)
• Escutcheon bonnet: Chrome plated brass
• Material: Chrome plated brass
• Manufacturer: TS Brass
• Model #: 006477-40NS
• Manufacturer Part #: 006477-40NS
• UPC Code: 671262824002
• Type: Spindles
• Spindle Assembly: LTC (cold), quarter-turn Eterna cartrdige with spring check, escutcheon bonnet
• Parts: spindle
