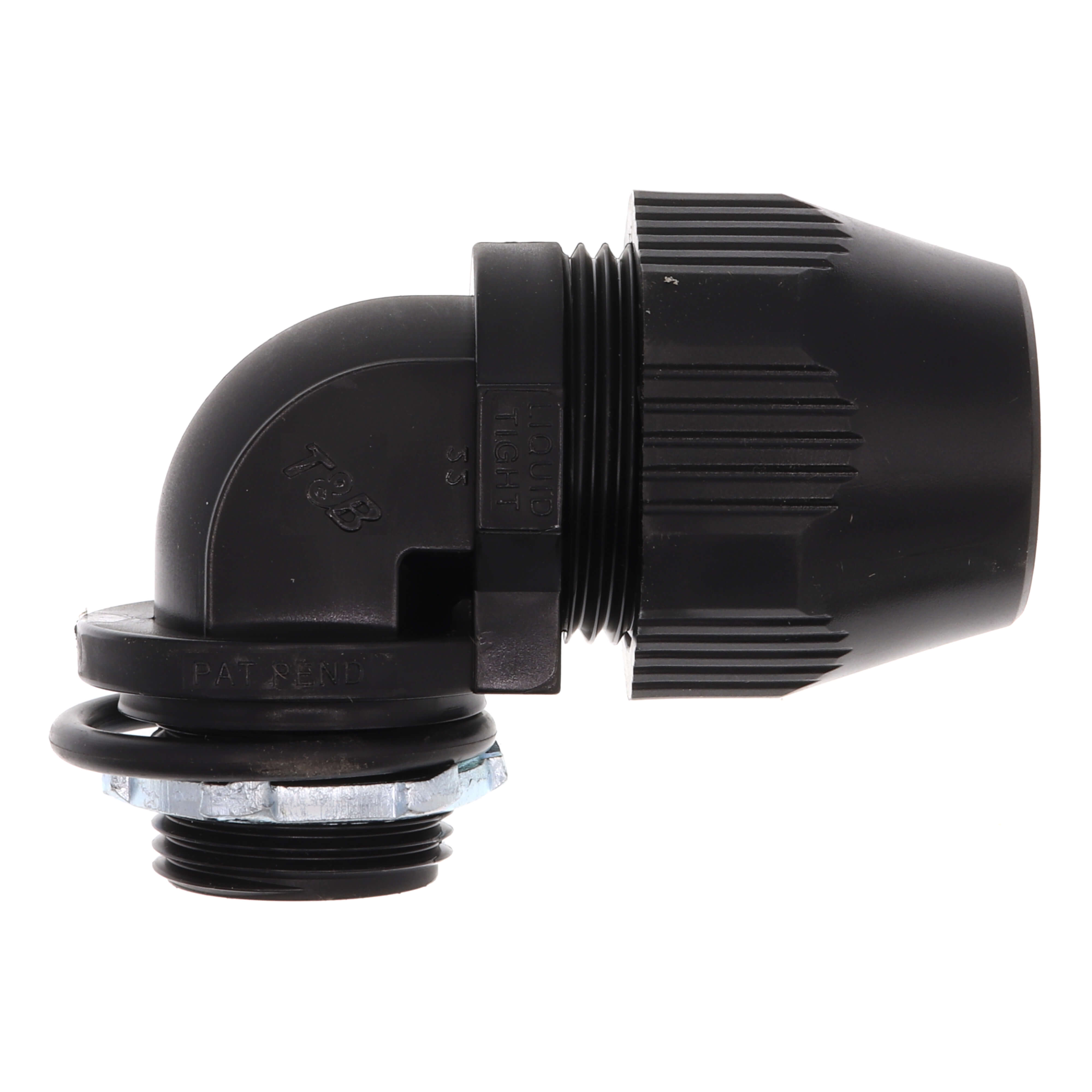

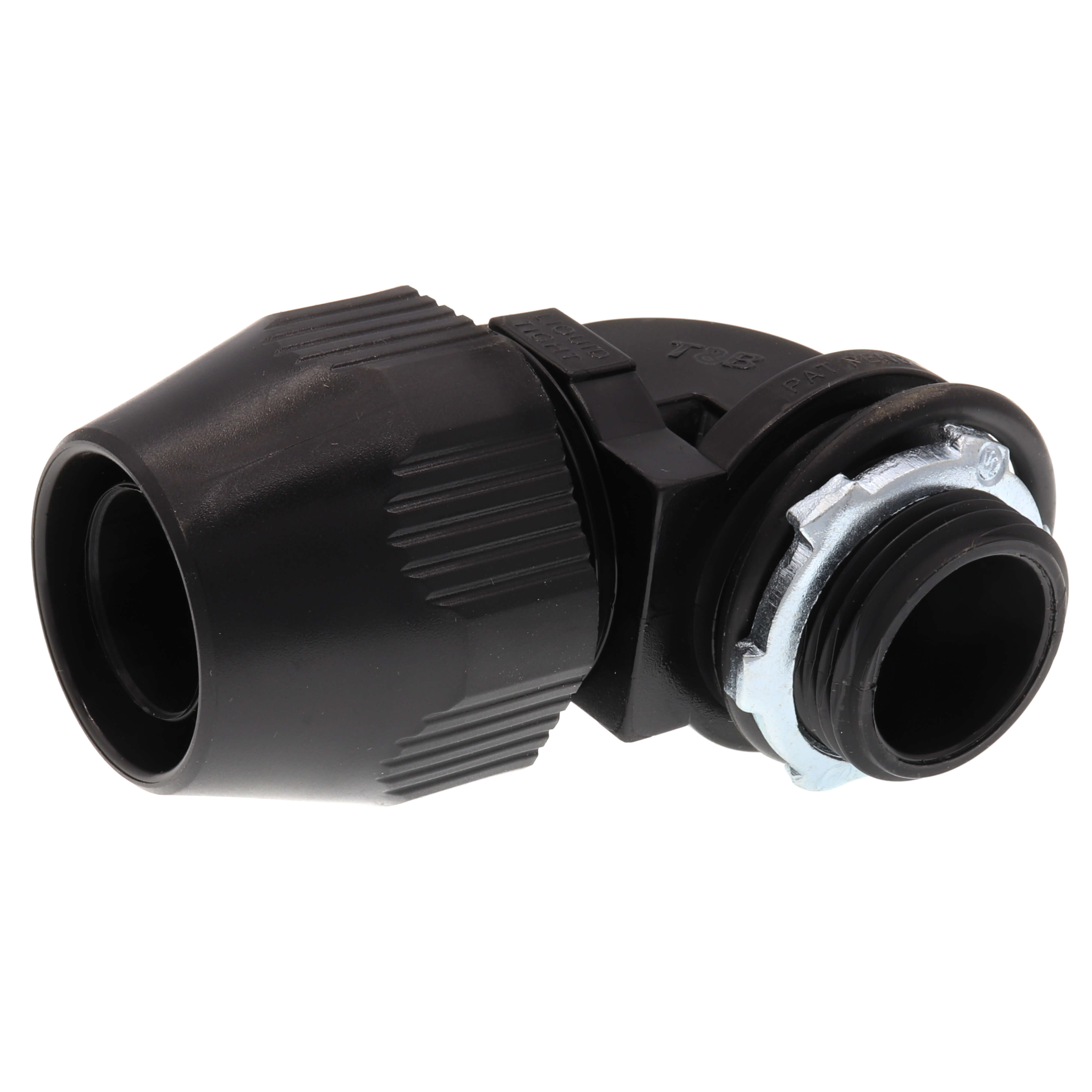

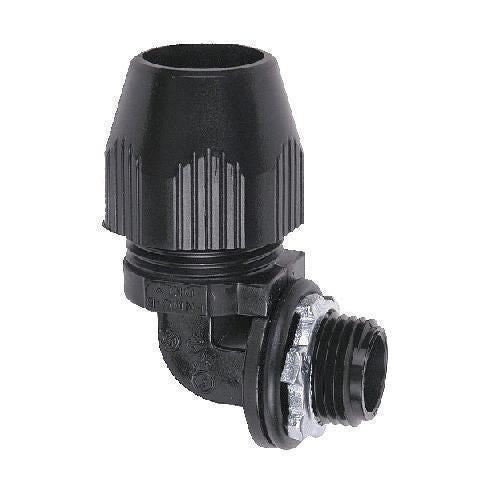

T&B LT975P 3/4 L/T CONN 3/4 inch 90 deg

Product Description

The T&B LT975P liquidtight connector is a 90-degree thermoplastic fitting with a trade size of 3/4 inch. It is designed for use with extra flexible tubing and liquidtight non-metallic Type B conduit. This connector meets performance requirements for terminating Type B liquidtight non-metallic conduit or flexible non-metallic tubing to a box or enclosure.

• Liquidtight connection
• 90-degree angle
• Made from thermoplastic material

Product Highlights

This fitting is UL 514-B and CSA C22.2 approved and features a 3/4 Inch-14 TPI thread size.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: LT975P

Technical Specifications

• Type: 90 Deg
• Trade Size: 3/4 Inch
• Material: Thermoplastic
• Approval: UL 514-B, CSA C22.2
• Used On: Extra Flexible Tubing/Liquidtight Non-Metallic Type B Conduit
• Thread Size: 3/4 Inch-14 TPI
• Angle: 90 deg
• Suitable For Use With: Non-Metallic Liquidtight Conduit Type B and NMT Flexible Tubing
• Standard: UL E23018, CSA
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Throat Size: 0.74 in
• Nominal size in inch: 3/4 inch
• Model: 90°-elbow
• Revolving thread: N
• Construction type: External thread
• Type of connection: Thread
• Thread connection size: Other
• Thread length: 14.78 mm
• Material screw gland: Other
• Material sealing: Other
