Product Description

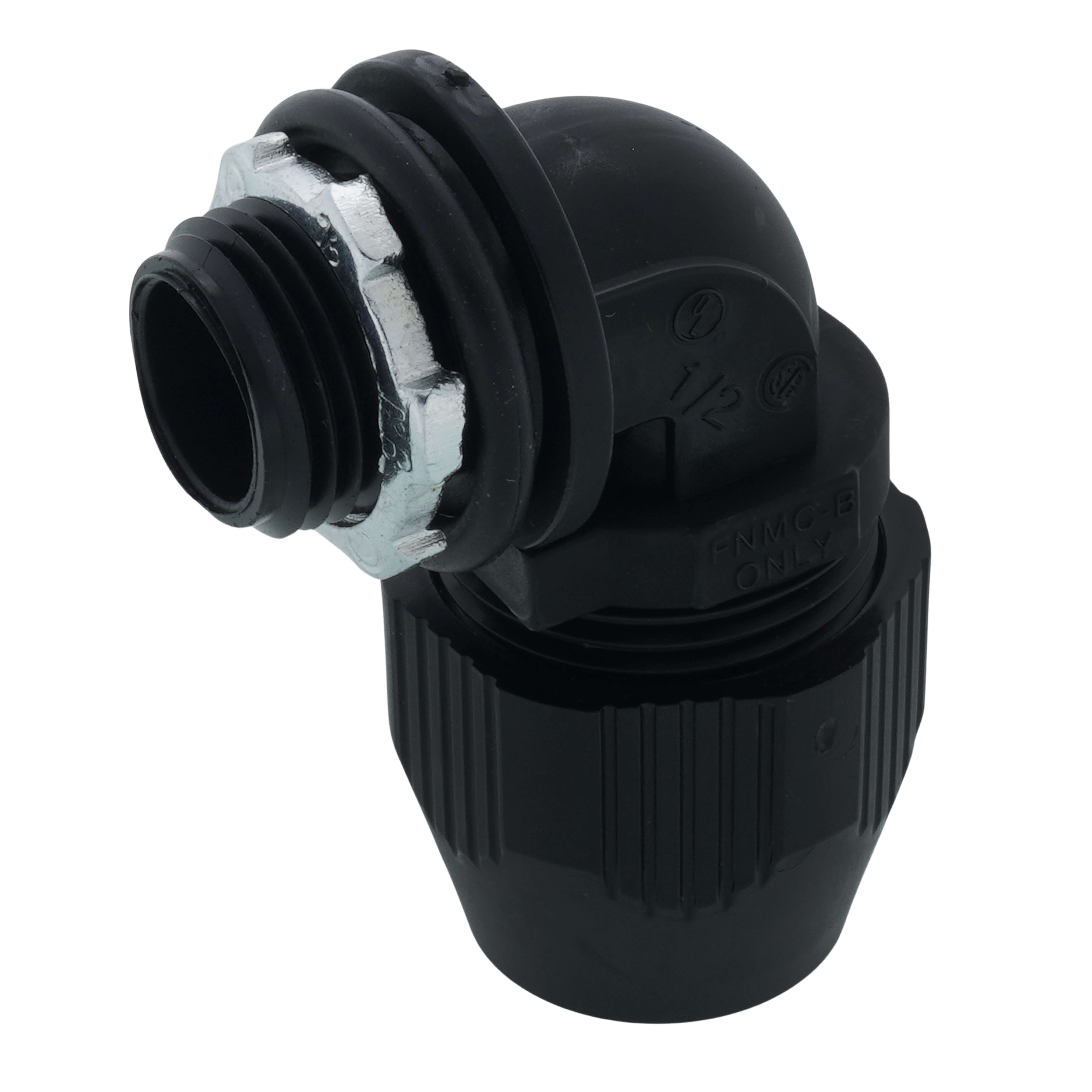

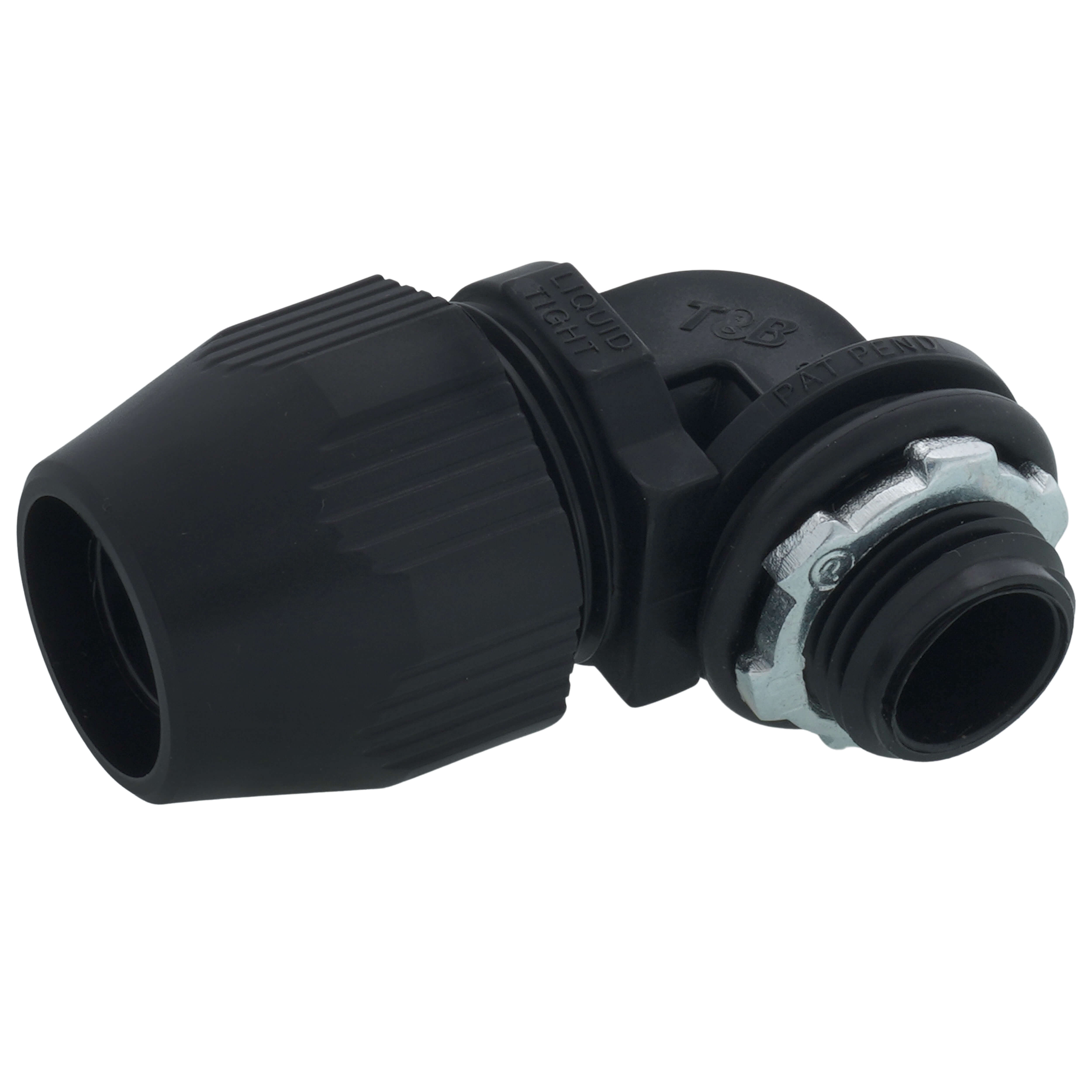

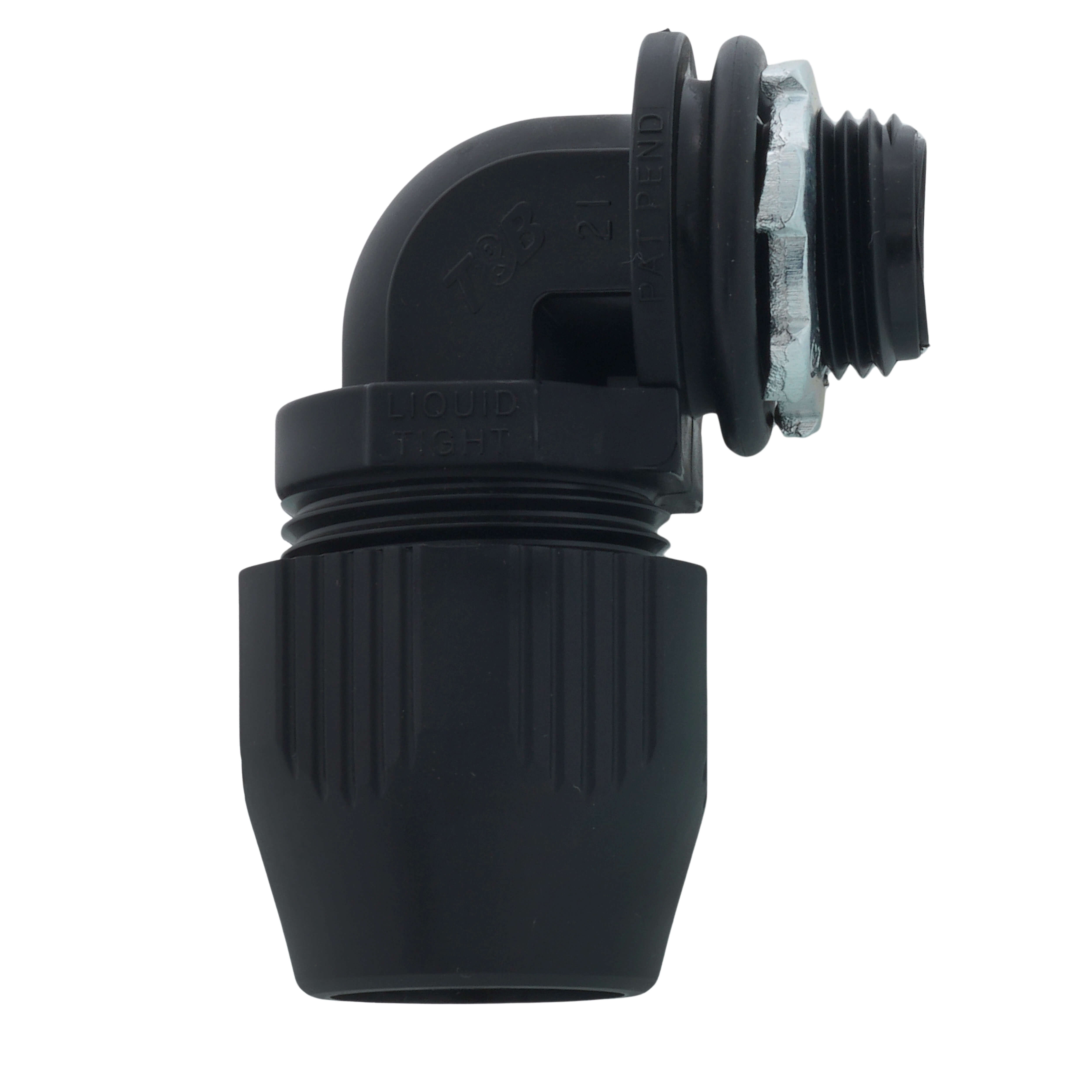

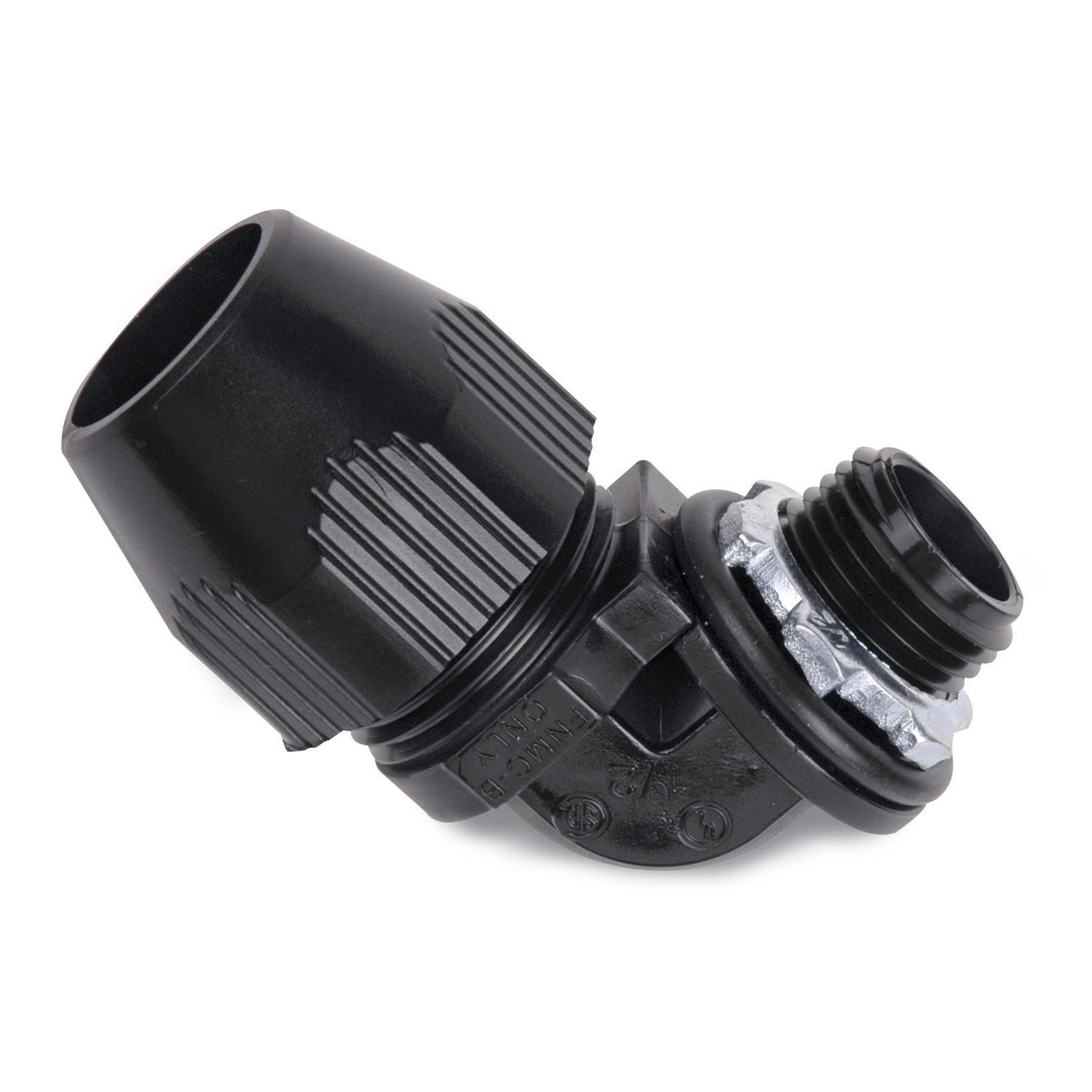

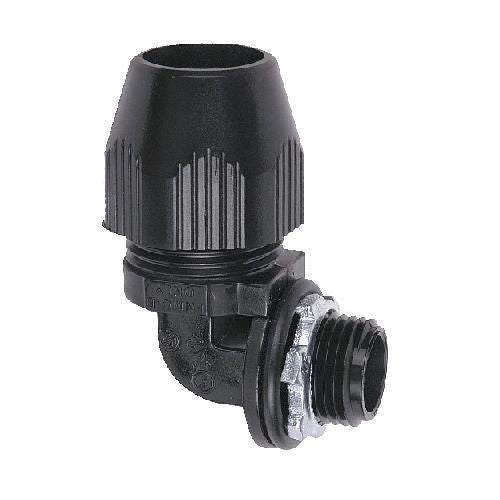

The T&B LT950P liquidtight connector features a 90-degree angle and is constructed from thermoplastic. This connector is UL 514-B and CSA C22.2 approved and designed for use with extra flexible tubing or liquidtight non-metallic Type B conduit. It has a thread size of 1/2 Inch-14 TPI.
- Liquidtight
- 90 Degree Angle
- Thermoplastic Construction
- UL 514-B Approved
- CSA C22.2 Approved
Product Highlights
This thermoplastic liquidtight connector is ideal for creating secure connections in wet and corrosive environments.
Product Information
Standard Information
-
Brand: T&B
-
Manufacturer Part Number: LT950P
Technical Specifications
-
Type: 90 Deg
-
Trade Size: 1/2 Inch
-
Material: Thermoplastic
-
Standard Package: 50
-
Approval: UL 514-B, CSA C22.2
-
Used On: Extra Flexible Tubing/Liquidtight Non-Metallic Type B Conduit
-
Thread Size: 1/2 Inch-14 TPI
-
Standard: UL E23018, CSA
-
Angle: 90 deg
-
Product Type: Elbow
-
RoHS: RoHS3 Compliant
-
REACH: REACH 247 Compliant
-
TSCA: TSCA Section 6(h) Compliant
-
ETIM: EC001178 Screw connection for protective plastic hose
-
Nominal size in inch: 1/2 inch
-
Model: 90°-elbow
-
Revolving thread: N
-
Construction type: External thread
-
Type of connection: Thread
-
Thread connection size: Other
-
Thread length: 14.48 mm
-
Material screw gland: Other
-
Material sealing: Other
-
Suitable For Use With: Non-Metallic Liquidtight Conduit Type B and NMT Flexible Tubing
-
Throat Size: 0.55 in
