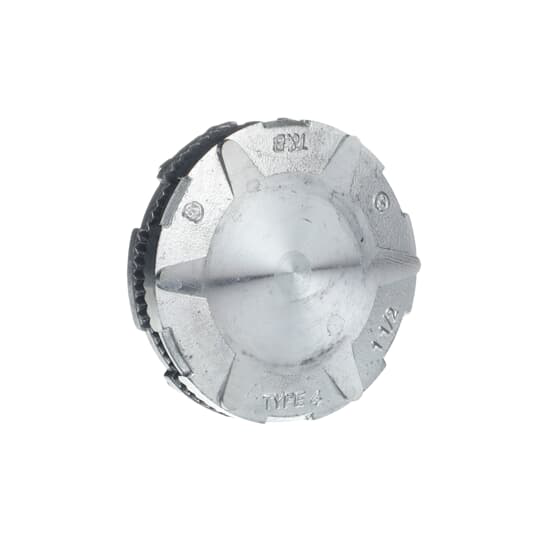

T&B H150CAP Capoff 1-1/2 Inch

Product Description

The T&B H150CAP is a 1-1/2 inch capoff designed for IMC/Rigid conduit. Constructed from zinc, it features a NEMA 3R/4/13 rating and includes a thermoplastic insulating throat and sealing ring. It is suitable for use with rigid/IMC conduit and is UL and CSA approved.

• Designed for IMC/Rigid Conduit
• Includes thermoplastic insulating throat and sealing ring
• NEMA 3R/4/13 rated zinc construction

Product Highlights

The T&B H150CAP capoff provides a secure and environmentally protected termination for rigid and IMC conduit systems.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: H150CAP
• Country of Origin: Canada

Technical Specifications

• Type: Round
• Trade Size: 1-1/2 Inch
• Constructional Feature: NEMA 3R/4/13
• Material: Zinc
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Includes: Thermoplastic Insulating Throat, Sealing Ring
• Special Features: Insulating Throat with a Thermoplastic Temperature Rating of 105 Degrees Celsius
• Application: For Use with Rigid/IMC Conduit
• Standard: UL E23018, CSA
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Model: Straight
• Revolving thread: N
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Material housing: Zinc die-cast
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y
• Temperature Rating: 105 degrees C
