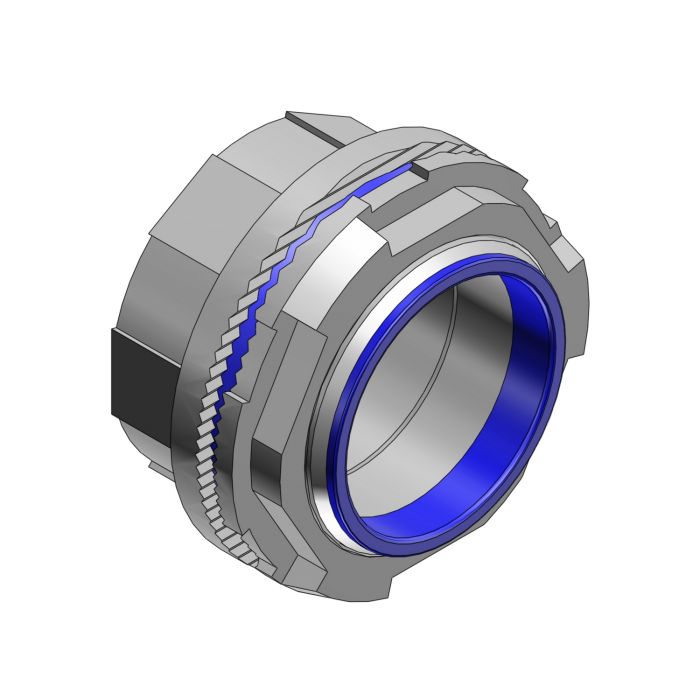

T&B H125-TB Connector Hub 1-1/4in Rgd/Imc Conduit

Product Description

The T&B H125-TB Hub Connector is a 1-1/4 inch connector for use with rigid/IMC conduits. Constructed from zinc, it measures 2-3/8 inches in width and 1-7/8 inches in height. It features a sealing ring and groove with an innovative profile, better than a standard O-ring, and a 1/4 inch THK maximum panel. Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.

• Sealing ring and groove with innovative profile better than standard O-ring
• 1/4 in THK maximum panel
• 105 deg C temperature

Product Highlights

The T&B H125-TB is a 1-1/4 inch zinc hub connector with a thermoplastic insulating throat and sealing ring for use with rigid/IMC conduit.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: H125-TB
• Country of Origin: Canada

Technical Specifications

• Manufacturer: ABB - Installation Products
• Suitable For Use With: Rigid/IMC Conduits
• Type: Bulkhead, Tapered Female Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1-1/4 Inch
• Constructional Feature: Dusttight, Watertight, Hazardous Location
• Ground Type: Locknut Bonding Screw
• Material: Zinc Hub/Locknut, Nitrile Sealing Ring
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Enclosure: NEMA 3R/4/13
• Maximum Panel Thickness: 1/4 Inch
• Temperature Rating: 105 Deg C
• Special Features: Sealing Ring and Groove with Innovative Profile Better Than Standard O-Ring
• Application: To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
• Standard: UL E23018, CSA
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Nominal size in inch: 1 1/4 inch
• Model: Straight
• Revolving thread: N
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Material housing: Zinc die-cast
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y
