T&B H050A 1/2 Hub Type Cond Ftg

Product Description

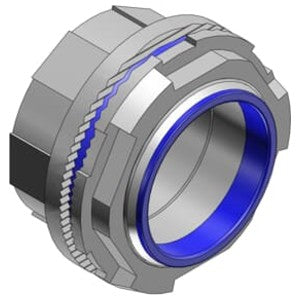

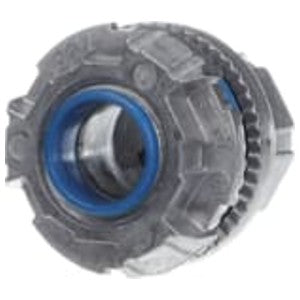

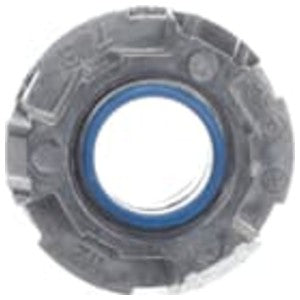

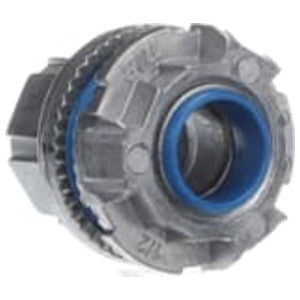

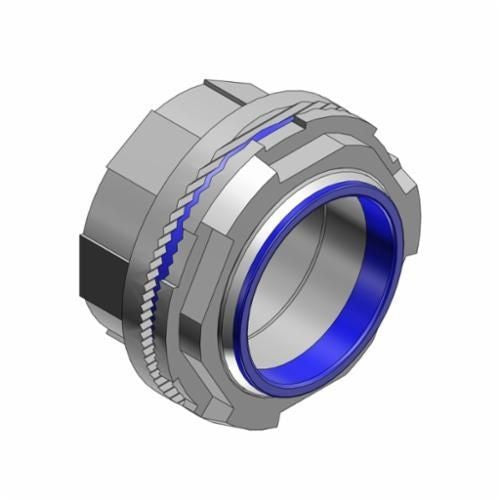

The T&B H050A is an IMC/Rigid Conduit Hub with a bulkhead type and tapered female threaded connection. It features a thermoplastic insulated throat and is suitable for use with rigid conduit/IMC. The hub is constructed with corrosion-resistant materials and is designed to be dusttight, raintight, and watertight, making it suitable for hazardous locations.

• Corrosion Resistant, Dusttight, Raintight, Watertight, Hazardous Location
• Thermoplastic Insulated Throat
• For use with rigid/IMC conduits

Product Highlights

This hub connector is made from copper-free aluminum with a nitrile sealing ring and is UL and CSA approved. It has a NEMA 3R/4/13 enclosure rating and a temperature rating of 105 degrees C.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: H050A
• Country of Origin: Canada

Technical Specifications

• Type: Bulkhead, Tapered Female Threaded
• Throat Type: Thermoplastic Insulated
• Trade Size: 1/2 Inch
• Constructional Feature: Corrosion Resistant, Dusttight, Raintight, Watertight, Hazardous Location
• Material: Copper Free Aluminum Locknut/Hub, Nitrile Sealing Ring
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Enclosure: NEMA 3R/4/13
• Maximum Panel Thickness: 3/16 Inch
• Temperature Rating: 105 Deg C
• Standard: UL E23018, CSA
• RoHS: RoHS3 Compliant
• REACH: REACH 240 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Model: Straight
• Revolving thread: N
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Material housing: Other
• Applications: To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
• Brand: ABB
• Application: For use with rigid/IMC conduits
• Suitable For Use With: Rigid/IMC Conduit
• Standard & Approvals: UL Listed, CSA Certified use in hazardous locations Class I, Division 2, Class II, Groups E, F and G, Class III, Division 1, 2 and Type 4, RoHS Complaint
• Use With: Rigid/IMC Conduit
