Product Description

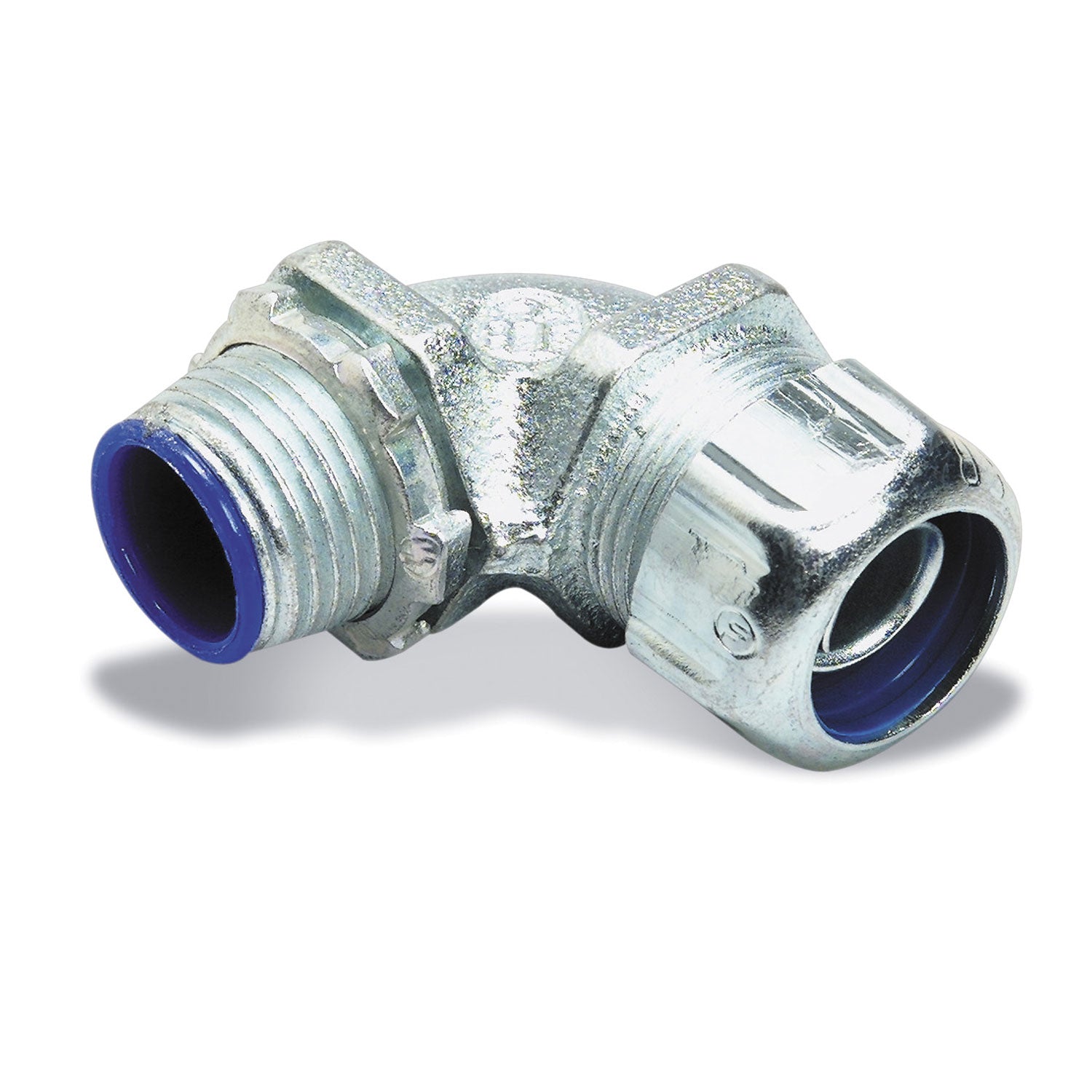

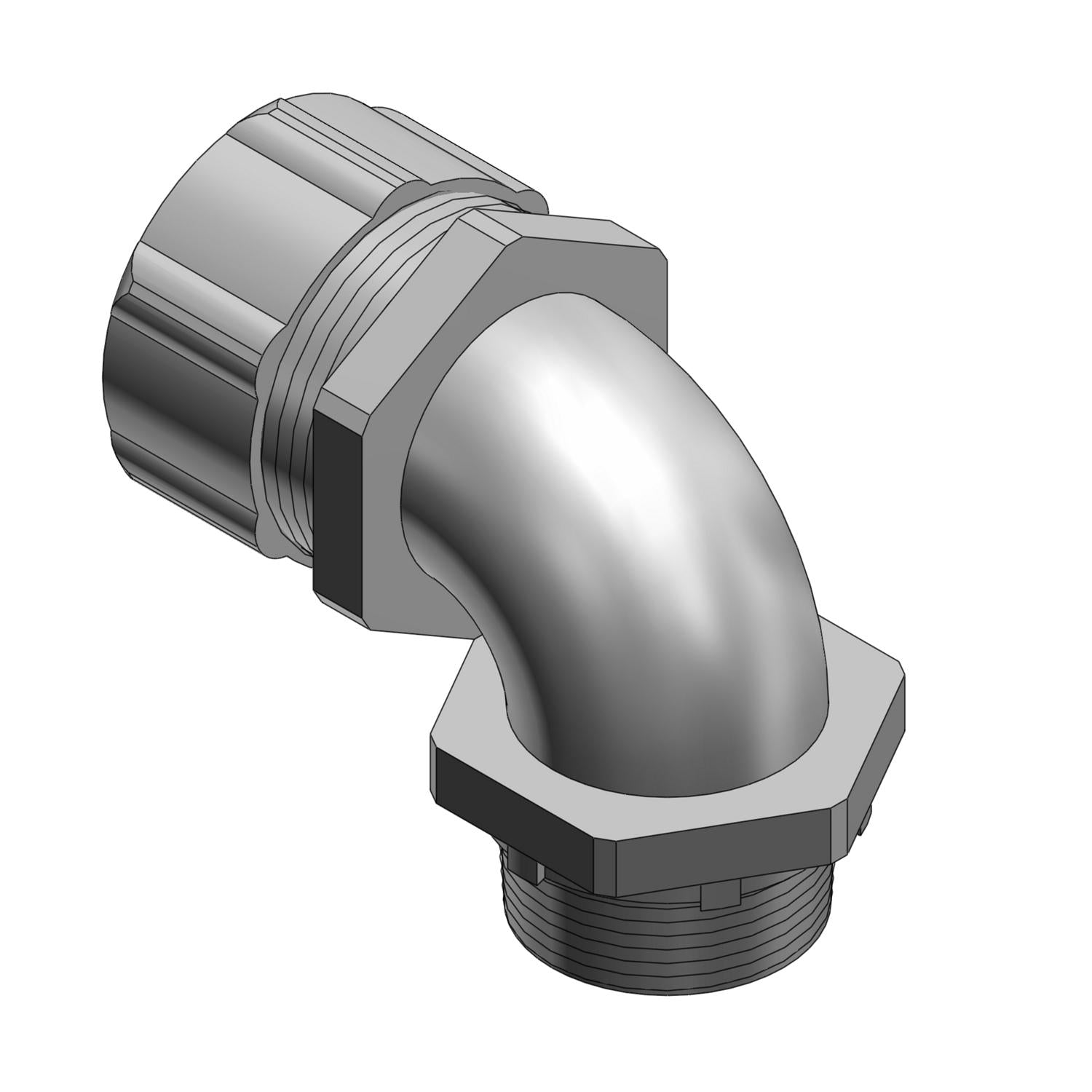

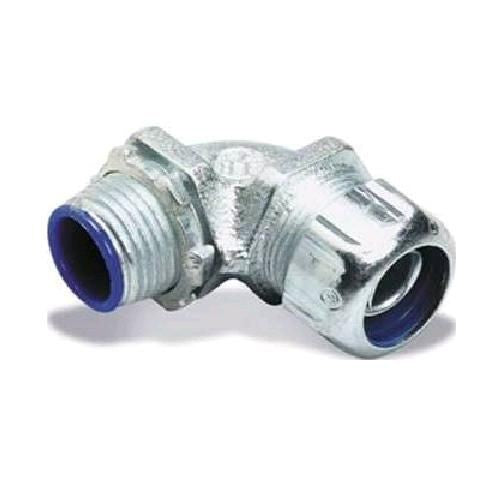

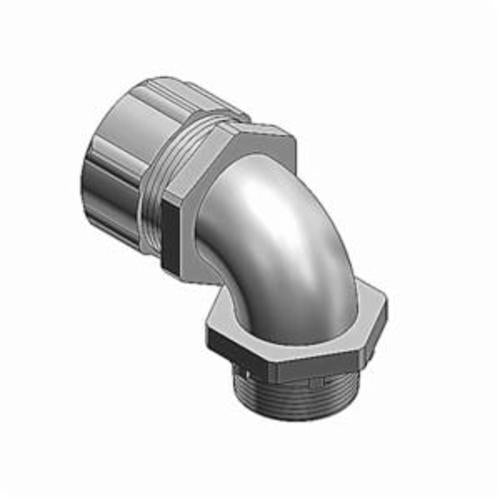

The T&B 5351 is a liquidtight flexible metallic conduit connector with a 90-degree angle and a thermoplastic insulated throat. With a trade size of 3/8 inch, it is constructed from zinc electroplated chromate coated malleable iron. It is suitable for use with liquidtight flexible metallic conduit.
- Liquidtight, flexible, metallic conduit connector
- 90 Degree angle
- Thermoplastic insulated throat
Product Highlights
This connector is designed for demanding wet and corrosive environments, ensuring a secure and reliable connection.
Product Information
Standard Information
-
Brand: T&B
-
Manufacturer Part Number: 5351
Technical Specifications
-
Type: 90 Deg
-
Throat Type: Thermoplastic Insulated
-
Trade Size: 3/8 Inch
-
Material: Zinc Electroplated Chromate Coated Malleable Iron Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring
-
Standard Package: 50
-
Approval: UL 514-B, CSA C22.2
-
Used On: Liquidtight Flexible Metallic Conduit
-
Application: Used where flexible metal raceway is installed in outdoor or indoor locations where exposed to continuous or intermittent moisture.
-
Finish: Electro Zinc Plated/Chromate Coating
-
Brand Name: T&B Liquidtight Fittings
-
Standard: UL E23018, CSA
-
RoHS: RoHS3 Compliant
-
REACH: REACH 247 Compliant
-
TSCA: TSCA Section 6(h) Compliant
-
ETIM: EC001180 Screw connection for protective metallic hose
-
Nominal size in inch: 3/8 inch
-
Model: 90°-elbow
-
Revolving thread: N
-
Construction type: External thread
-
Connection type screw connection to housing: Thread
-
Thread type: NPT
-
Thread connection size: Other
-
One-piece: N
-
Material housing: Other
-
Approved in combination with protective conduit CSA: Y
-
Approved in combination with protective conduit UL: Y
-
Series: 53 Series
-
Suitable For Use With: Liquid Tight Flexible Metal Conduits
-
Angle: 90 deg
