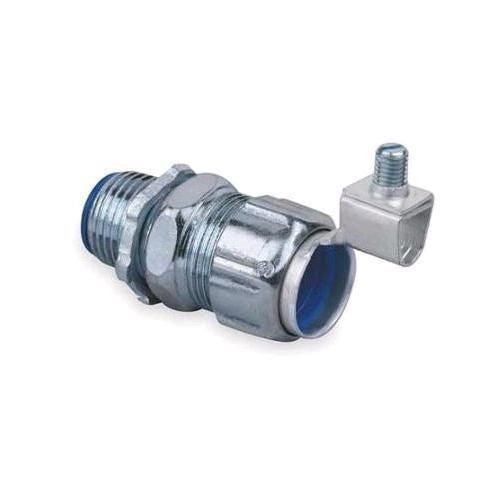

T&B 5337GR 2-In Ins L/T Grnd Conn (2 Inch)

Product Description

The T&B 5337GR is a liquidtight flexible metallic conduit ground connector with a straight type and thermoplastic insulated throat. With a trade size of 2 inches, it is constructed from zinc electroplated chromate coated steel and features a bright dipped copper lug. It is suitable for hazardous locations, as well as indoor and outdoor applications.

• Liquidtight Flexible Metallic Conduit Ground Connector
• Thermoplastic Insulated Throat
• Suitable for Hazardous Locations

Product Highlights

This connector is designed for use with liquidtight flexible metallic conduit in demanding wet and corrosive environments.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 5337GR

Technical Specifications

• Type: Straight
• Throat Type: Thermoplastic Insulated
• Trade Size: 2 Inch
• Material: Zinc Electroplated Chromate Coated Steel Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring
• Approval: UL 514-B, CSA C22.2
• Used On: Liquidtight Flexible Metallic Conduit
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1, NFPA 70
• Application: Hazardous Location, Indoor, Outdoor
• Finish: Electro Zinc Plated/Chromate Coating
• Brand Name: T&B Liquidtight Fittings
• Standard: UL E3060, CSA
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• Model: Straight
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Thread connection size: Other
• One-piece: N
• Material housing: Steel
• Surface protection: Other
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y
• Angle: Straight
• Includes: Copper Lug for Awg #4 to 2/0 Ground Wire
• Suitable For Use With: Flexible Raceway
• Series: 53
• Cable Openings: 4 - 2/0 AWG
