T&B 5241 3/8 45D L/T Flex Conn

Product Description

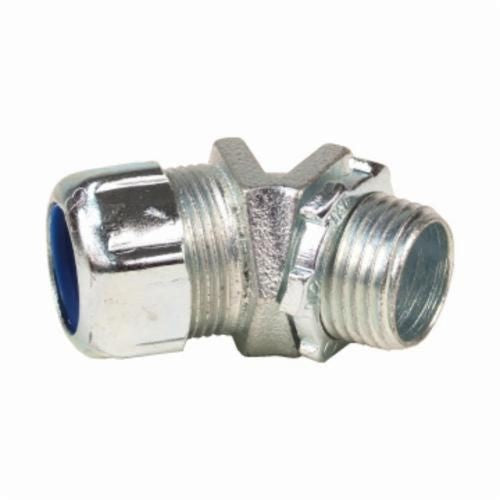

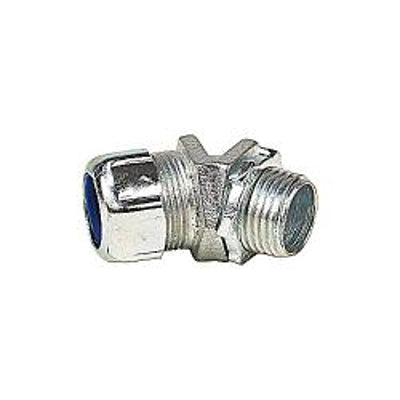

The T&B 5241 is a liquidtight flexible metallic conduit connector with a 45-degree angle. This connector features a non-insulated throat and is designed for use with liquidtight flexible metallic conduits. Constructed with a zinc electroplated chromate coated malleable iron body, gland, ground cone, and locknut, it also includes a bright dipped copper lug, santoprene/stainless steel sealing gasket, steel strap, and thermoplastic sealing ring.

• Liquidtight
• Flexible
• Metallic Conduit Connector

Product Highlights

Designed for environments exposed to continuous or intermittent moisture, this connector ensures a secure and reliable connection.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 5241

Technical Specifications

• Type: 45 Deg
• Throat Type: Non-Insulated
• Trade Size: 3/8 Inch
• Material: Zinc Electroplated Chromate Coated Malleable Iron Body/Gland/Ground Cone/Locknut, Bright Dipped Copper Lug, Santoprene/Stainless Steel Sealing Gasket, Steel Strap, Thermoplastic Sealing Ring
• Used On: Liquidtight Flexible Metallic Conduit
• Category: Liquid tight connectors
• Application: Used where flexible metal raceway is installed in outdoor or indoor locations where exposed to continuous or intermittent moisture
• Finish: Electro Zinc Plated/Chromate Coating
• Brand Name: T&B Liquidtight Fittings
• Standard: UL E23018, CSA
• Size: 3/8 Inch
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001180 Screw connection for protective metallic hose
• Nominal size in inch: 3/8 inch
• Model: 45°-elbow
• Revolving thread: N
• Construction type: External thread
• Connection type screw connection to housing: Thread
• Thread type: NPT
• Thread connection size: Other
• One-piece: N
• Material housing: Other
• Approved in combination with protective conduit CSA: Y
• Approved in combination with protective conduit UL: Y
• Series: 52
• Angle: 45 deg
• Thread Size: 1/2" NPT
