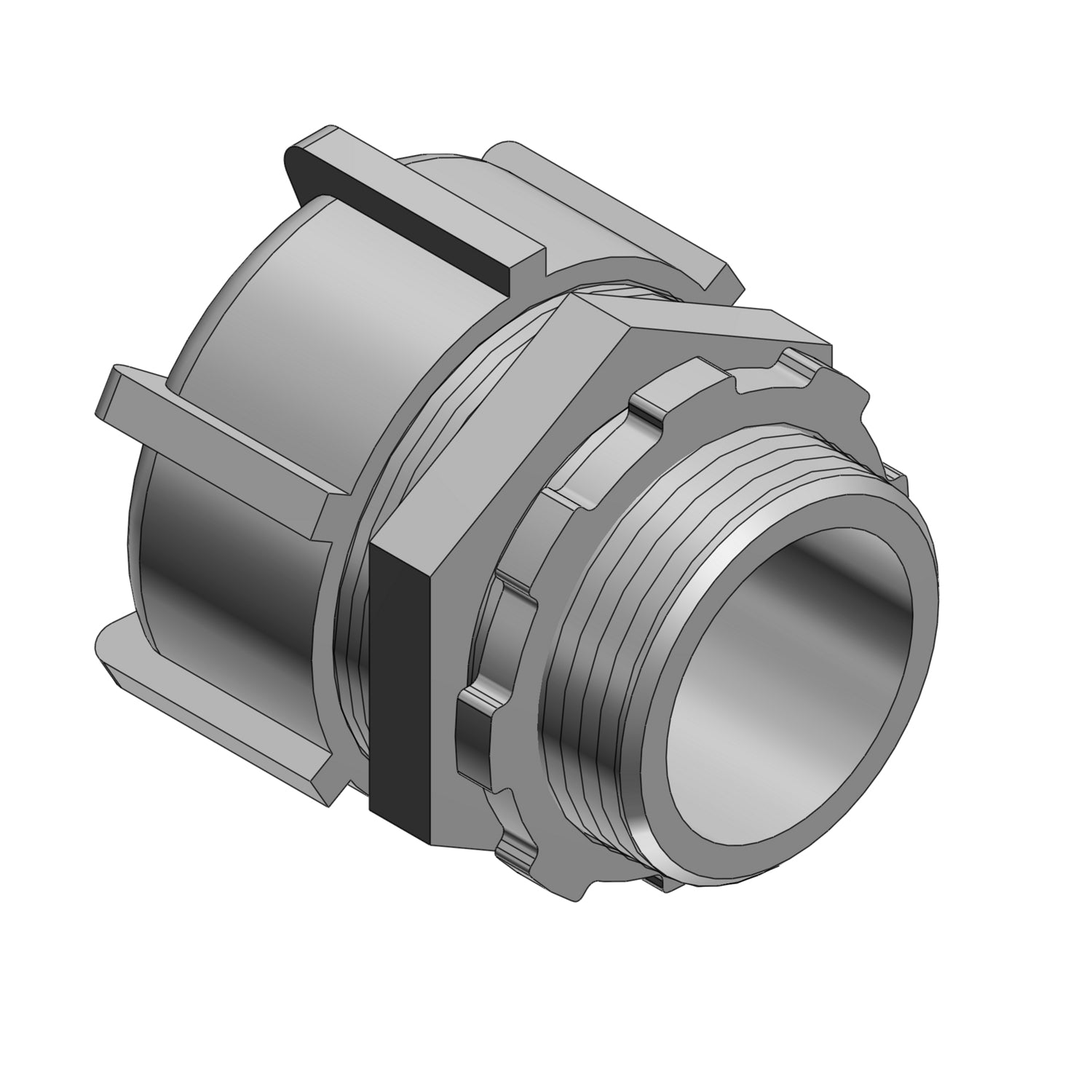

T&B 5239AL 3-In Alum Str L/T Conn

Product Description

The T&B 5239AL is a liquidtight flexible metallic conduit ground connector with a straight design. Constructed from zinc electroplated chromate coated aluminum, this connector is suitable for hazardous locations, as well as indoor and outdoor applications. It conforms to UL 514-B and CSA C22.2 standards.

• Liquidtight Flexible Metallic Conduit Ground Connector
• Suitable for Hazardous Locations
• Suitable for Indoor Applications
• Watertight

Product Highlights

This aluminum liquidtight connector provides a corrosion-resistant, liquidtight termination for flexible aluminum conduit.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 5239AL

Technical Specifications

• Type: Straight
• Throat Type: Non-Insulated
• Trade Size: 3 Inch
• Material: Zinc Electroplated Chromate Coated Aluminum (Body, Gland, Ground Cone, Locknut)
• Used On: Liquidtight Flexible Metallic Conduit
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1, NFPA 70
• Application: Hazardous Location, Indoor, Outdoor
• Environmental Conditions: Watertight
• Finish: Zinc Plating/Clear Chromate
• Brand Name: T&B Liquidtight Fittings
• Size: 3 Inch
• Manufacturer: Thomas & Betts
• Part Number: 5239AL
• Insulation: Non-Insulated
• Series: 52/53 Series
• For: LTA Flexible Aluminum Conduit
• Thread Type: NPT
• Construction Type: External Thread
• Housing Material: Other
• Product UPC: 78621083829
• Thread Length: 25.4 mm
