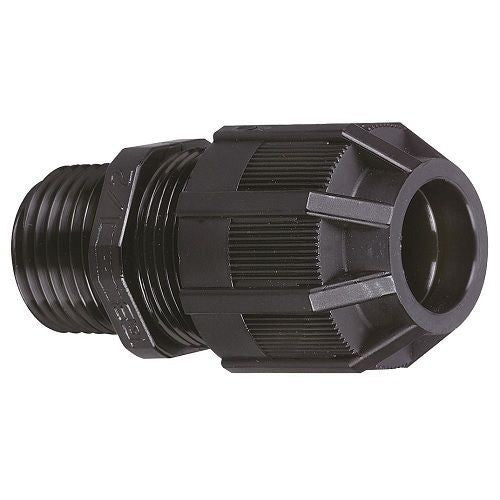

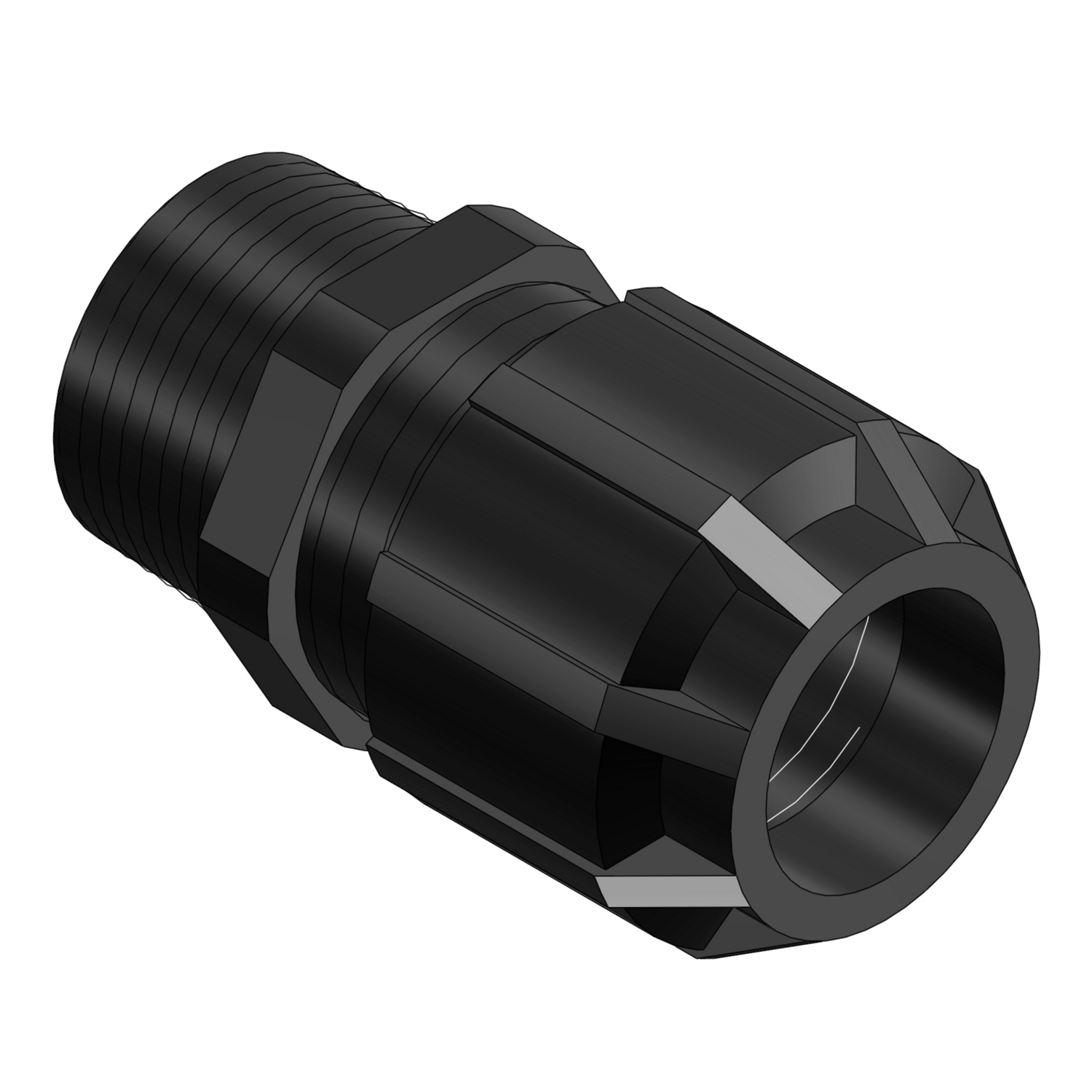

T&B 2930NM 3/4 .125-.375 Cord Conn

Product Description

The T&B 2930NM is a flexible cord connector with a straight type and 3/4 inch thread size. Constructed with a nylon body and rubber bushing, it accommodates cord sizes from 0.125 to 0.375 inches. Suitable for dry or wet locations, it offers corrosion resistance, liquidtight performance and strain relief.

• Flexible Cord Connector
• Nylon Body with Rubber Bushing
• UL and CSA Approval
• Corrosion Resistant, Liquidtight, and Strain Relief

Product Highlights

This straight type flexible cord connector is ideal for providing strain relief and liquidtight seal in dry or wet environments.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2930NM

Technical Specifications

• Type: Straight
• Thread Size: 3/4 Inch
• Material: Nylon Body, Rubber Bushing
• Cord Size: 0.125 to 0.375 Inch
• Size: 1-13/32 Inch Dia
• Approval: UL, CSA
• Application: Dry/Wet Location
• Construction Features: Corrosion Resistant, Liquidtight, Strain Relief
• Operating Temperature: -34 to 105 Deg C
• Standard: UL E13938, CSA 52391
• Environmental Conditions: Ordinary, Wet, or Dry Locations
• Temperature Rating: -34 to 105 deg C
• Cable Openings: 1/8 - 3/8 in
• Cable Type: S/SO
• Connection Type: NPT
• Series: Ranger®
• Trade Size: 3/4 in
• Standard & Approvals: UL E13938 Listed, CSA Certified, RoHs Compliant
