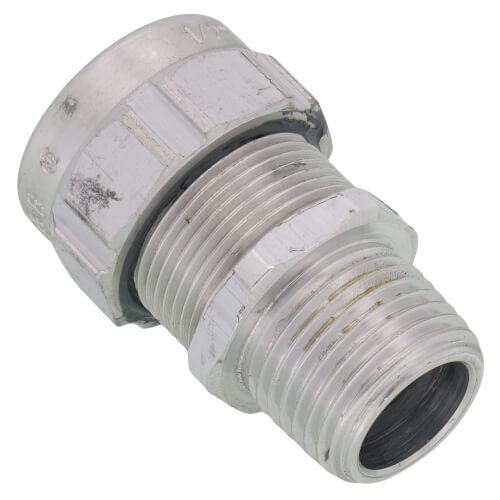

T&B 2920AL 1/2 .125-.375 Cord Conn

Product Description

The T&B 2920AL is a straight strain relief connector with a 1/2 inch thread size. Constructed with an aluminum body, gland nut, and grip, it also features a rubber bushing. It accommodates cord sizes ranging from 0.125 to 0.375 inches and is suitable for dry, hazardous, and wet locations, providing liquidtight and strain relief applications.

• Strain Relief Connector
• Thread Size: 1/2 Inch
• Cord Size: 0.125 to 0.375 Inch

Product Highlights

This straight type strain relief connector is made of aluminum and features a rubber bushing. UL and CSA approved.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2920AL

Technical Specifications

• Type: Straight
• Thread Size: 1/2 Inch
• Material: Aluminum Body/Gland Nut/Grip, Rubber Bushing
• Cord Size: 0.125 to 0.375 Inch
• Size: 1-1/8 Inch Dia x 1-3/4 Inch L
• Approval: UL, CSA
• Application: Dry/Hazardous/Wet Location, Liquidtight, Strain Relief
• Product Type: Cord Connectors-Straight
• Special Functions: Extended Range with Superior Strain Relief
• Standards: UL E13938, CSA 52391
