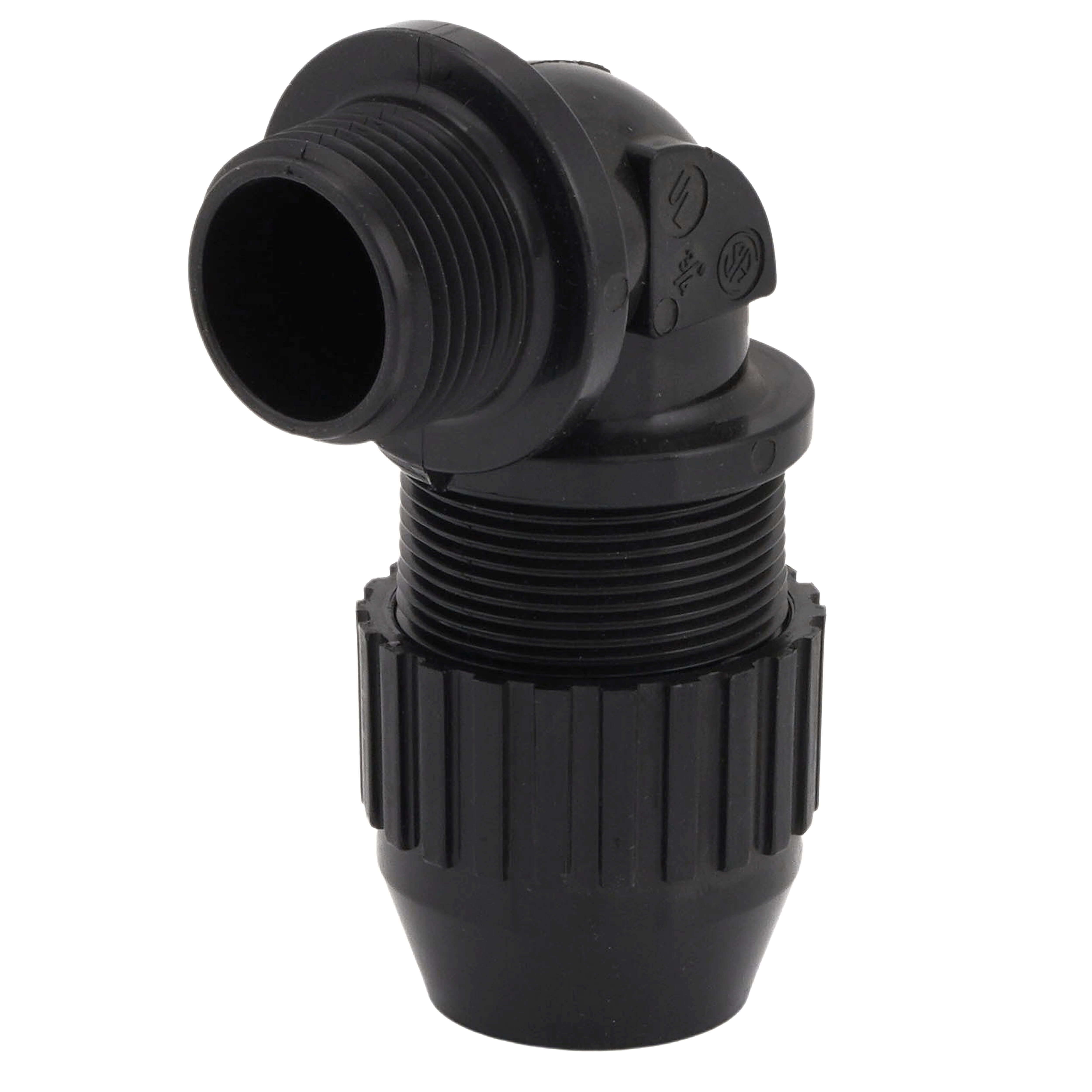

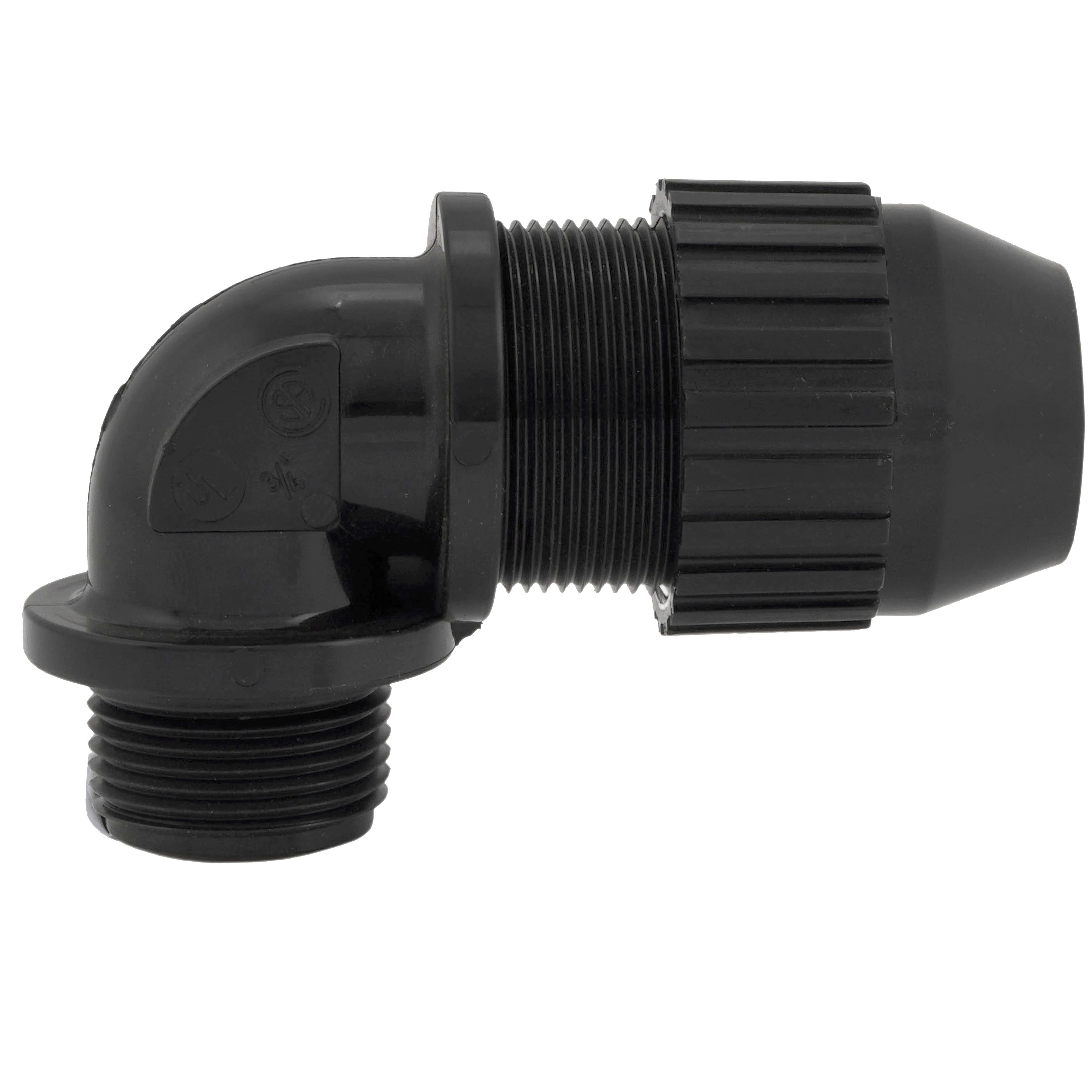

T&B 2684 3/4 .660-.780 Cord Conn

Product Description

The T&B 2684 is a flexible cord/cable connector with a 90-degree angle. Constructed with a molded black nylon body, thermoplastic gland and segmented chuck, and a neoprene bushing. Suitable for hazardous locations, this connector provides a liquidtight, strain relief, and corrosion-resistant connection.

• Flexible Cord/Cable Connector
• Liquidtight and Strain Relief
• Corrosion Resistant

Product Highlights

This 3/4 inch connector is designed for cords sized 0.66 to 0.78 inches and is compliant with UL and CSA standards. Operating temperature ranges from -34 to 105 Deg C.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2684

Technical Specifications

• Type: 90 Deg
• Thread Size: 3/4 Inch
• Material: Molded Black Nylon Body, Molded Thermoplastic Gland and Segmented Chuck, Molded Neoprene Bushing
• Cord Size: 0.66 to 0.78 Inch
• Approval: UL, CSA
• Application: Hazardous Location
• Construction Feature: Liquidtight, Strain Relief, Corrosion Resistant
• Applicable Standard: Federal Specification A-A-50552, A-A-50553, WC-586
• Operating Temperature: -34 to 105 Deg C
• Color: Black
• Product Type: Cord Connectors-90 Degree
• Special Functions: Hand Tightens, No Tools Needed for Assembly
• Standards: UL E13938, CSA
• Temperature Range: -34 to +105 °C
• UPC: 78621002684
• Brand: ABB
• Description: 3/4IN 90D LT CORD CONN .66-.78 NYL
• UNSPSC: 39121420
• Manufacturer Catalog Number: 2684
