T&B 2586 2-1/2 Cord Conn

Product Description

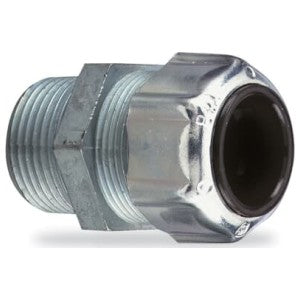

The T&B 2586 flexible cord/cable connector is a straight type with a 2-1/2 inch thread size. Constructed with a malleable iron body, steel gland nut, and neoprene bushing, it accommodates a cord size of 2.156 to 2.36 inches. This connector is suitable for dry, hazardous, and wet locations, offering liquidtight, watertight, and strain relief features. It has an operating temperature of 105 Deg C.

• Flexible Cord/Cable Connector
• Liquidtight, Watertight, Strain Relief Construction Feature
• Suitable for Dry/Hazardous/Wet Locations

Product Highlights

This straight cord connector provides a secure, liquidtight seal and strain relief for flexible cords and cables in various environments.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2586
• Country of Origin: Canada

Technical Specifications

• Type: Straight
• Thread Size: 2-1/2 Inch
• Material: Malleable Iron Body, Steel Gland Nut, Neoprene Bushing
• Cord Size: 2.156 to 2.36 Inch
• Size: 3-15/16 Inch Dia x 4-1/4 Inch L
• Approval: UL, CSA
• Application: Dry/Hazardous/Wet Location
• Construction Feature: Liquidtight, Watertight, Strain Relief
• Operating Temperature: 105 Deg C
• Standard: UL E13938, CSA
• Temp. Rating: 105°C
