T&B 2250 Cord Conn 1/2 inch (.500-.625)

Product Description

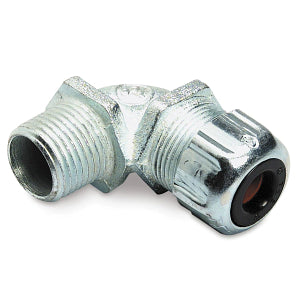

The T&B 2250 is a flexible cord/cable connector with a 90-degree angle. Constructed with a malleable iron body, steel gland nut, and neoprene bushing, it accommodates cord sizes from 0.5 to 0.625 inches. This watertight connector is UL and CSA approved and suitable for dry, hazardous, and wet locations. It has an operating temperature of 105 degrees C.

• Flexible Cord/Cable Connector
• 90 Degree Type
• Watertight Construction
• UL and CSA Approved
• Suitable for Dry/Hazardous/Wet Locations

Product Highlights

This T&B cord connector ensures a secure, liquidtight connection for various cable types in diverse environments.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 2250

Technical Specifications

• Type: 90 deg
• Thread Size: 1/2 Inch
• Material: Malleable Iron
• Cord Size: 0.5 to 0.625 Inch
• Size: 1-3/8 Inch Dia
• Approval: UL, CSA
• Application: Dry/Hazardous/Wet Location
• Construction Feature: Watertight
• Operating Temperature: 105 deg C
• Angle: 90 deg
• Cable Openings: 1/2 to 5/8 in
• Cable Type: S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD
• Connection Type: Thread
• Finish: Zinc Plated
• Trade Size: 1/2 in
• Dia throat: 39/64 in
• L thread: 9/16 in
