T&B 1245 1/2X3/4 Mall Enlarger

Product Description

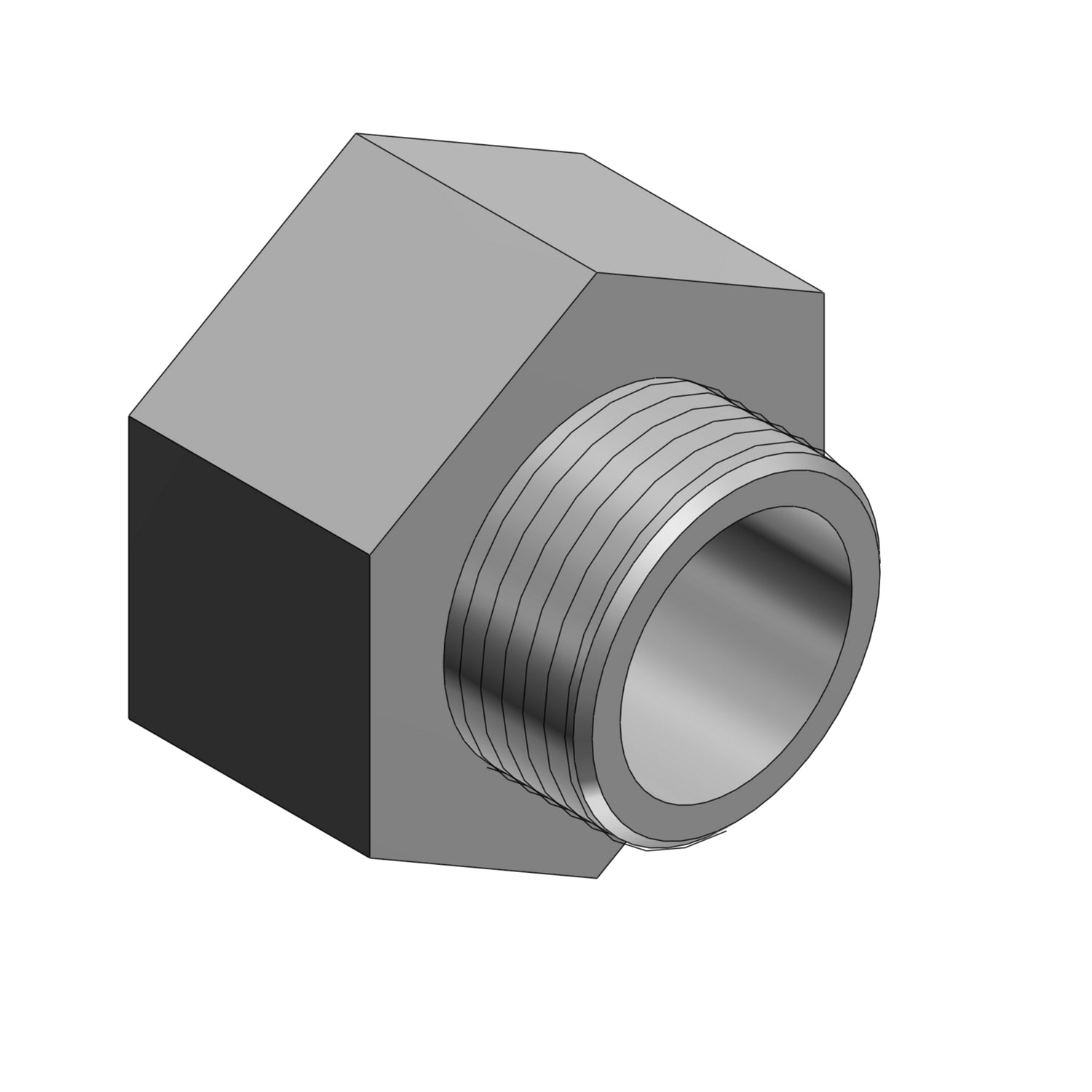

The T&B 1245 is an IMC/Rigid Conduit Male Enlarger. It features a threaded type and is constructed from dura plated malleable iron. This enlarger is UL and CSA approved and used on IMC/Rigid Conduit. It adheres to NEC standards 501-4(B), 502-4(A), 502-4(B), 503-3(A), and 503-3(B).

• IMC/Rigid Conduit Male Enlarger
• Threaded Type
• Dura Plated Malleable Iron Material
• UL, CSA Approval

Product Highlights

The T&B 1245 is a durable and reliable solution for enlarging conduit connections in various applications.

Product Information

Standard Information

• Brand: T&B
• Manufacturer Part Number: 1245
• Country of Origin: DE - Germany

Technical Specifications

• Type: Threaded
• Large End Trade Size: 3/4 Inch
• Small End Trade Size: 1/2 Inch
• Size: 1-13/32 Inch Dia
• Material: Dura Plated Malleable Iron
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Applicable Standard: NEC 501-4(B), NEC 502-4(A), NEC 502-4(B), NEC 503-3(A), NEC 503-3(B)
• Category: Electrical conduit fitting body
• Special Features: Adapt an Outlet Hole to The Next Larger Size of Conduit. Rough Ends of Conduit Carefully Covered by Built-In Bushing.
• Application: Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by The NEC, Class I, Div. 2, Class II, Div. 1 & 2, NEC 501-4(B), 502-4(A)(B), 503-3(A)(B).
• Brand Name: T&B Rigid Fittings
• Standard: UL E23018, CSA
• Hub Size: 1/2 to 3/4 in
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC000938 Enlargement/reducing ring
• Thread type inner thread: NPT
• Thread size inner thread (inch): 3/4 inch
• Thread type outer thread: NPT
• Thread size outer thread (inch): 1/2 inch
• Suitable For Use With: Rigid/IMC Conduits
• Finish: DuraPlate®
• ECCN: EAR99
