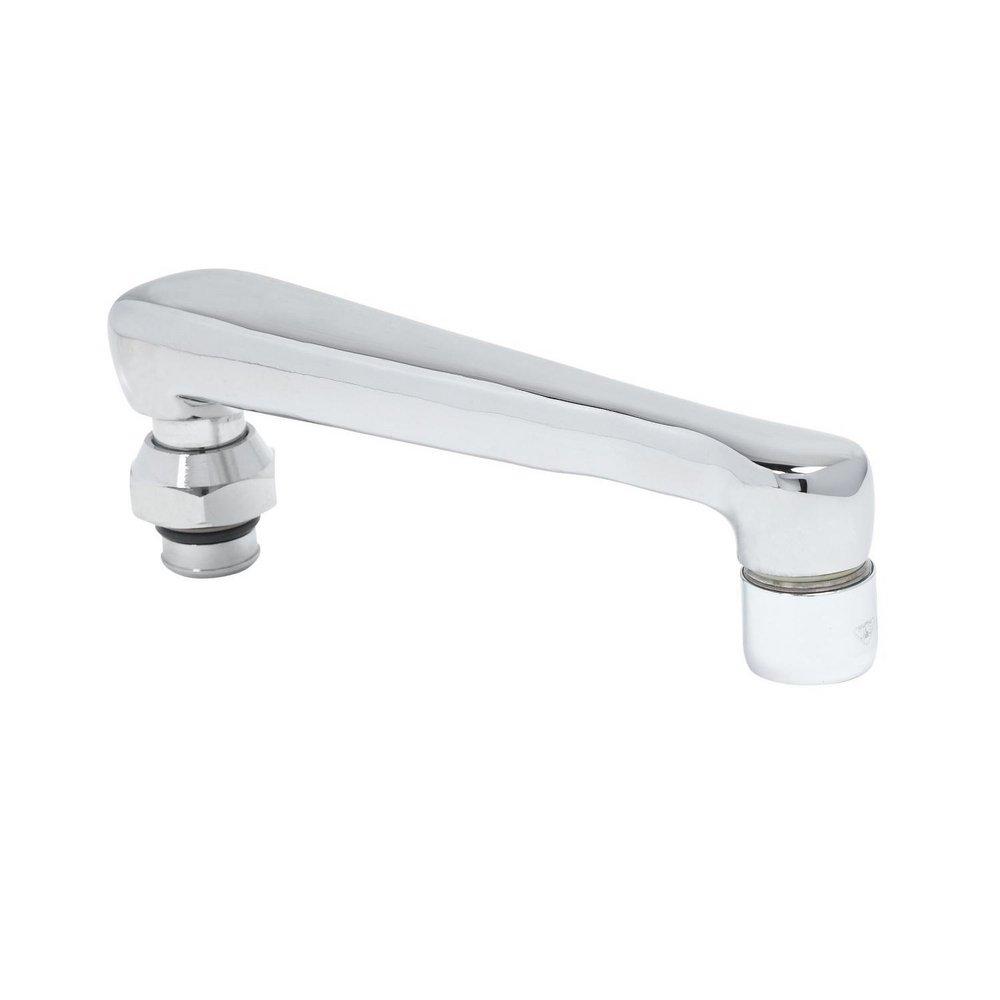

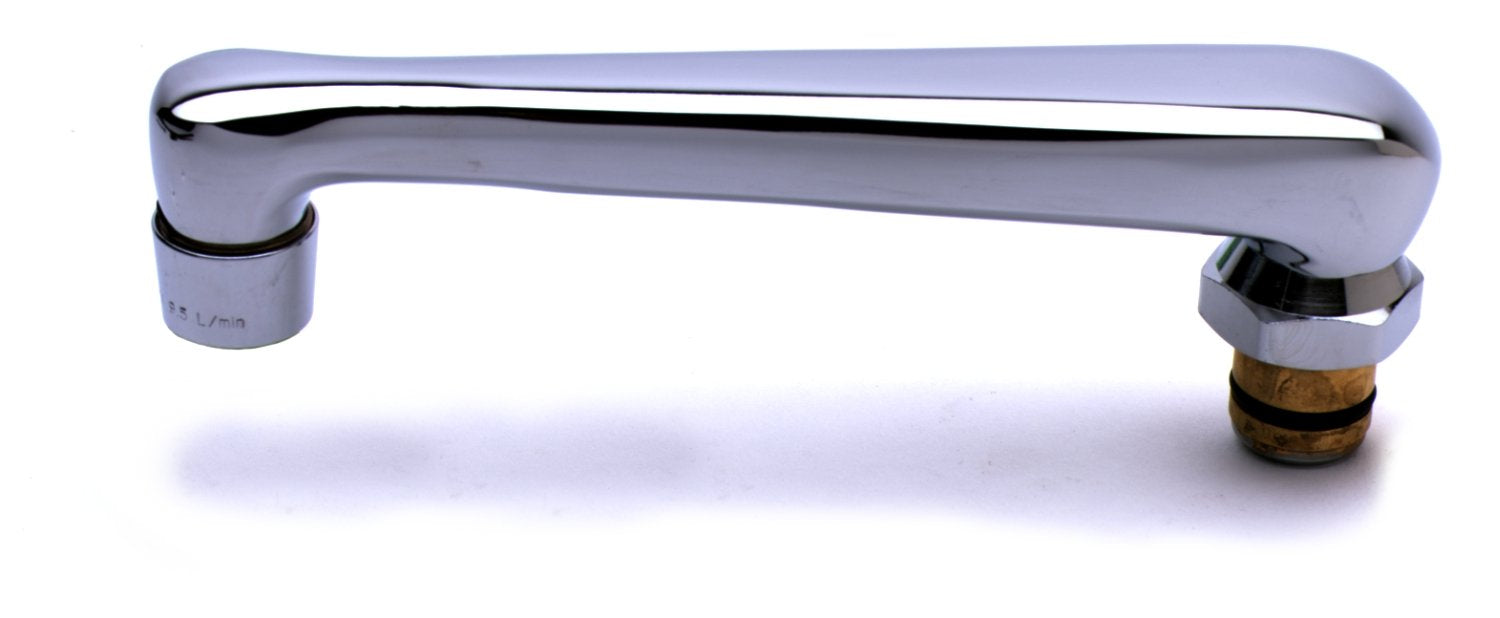

T and S Brass 0CS6 6-Inch Swivel Cast Spout Assembly (6 in)

Product Description

T and S Brass model 0CS6 is a 6-inch swivel cast spout assembly with an integrated aerator intended for commercial faucet applications. The spout features a 2.2 GPM aerator, a polished chrome plated cast nozzle, and fits all T and S swivel outlets. It is specified for typical institutional and utility faucet use and is certified to common plumbing standards for potable water.

• 6-inch swivel cast spout with integrated 2.2 GPM (8.33 L/min) aerator (Series 2, B-0199-02).
• Polished chrome plated cast nozzle construction; fits all T and S swivel outlets.
• Certifications and limits: ASME A112.18.1/CSA B125.1; NSF/ANSI 372; NSF/ANSI/CAN 61; pressure 20 to 125 psi; temperature 40 F to 140 F.

Product Highlights

6-inch swivel cast spout with 2.2 GPM aerator, polished chrome plated cast construction, fits all T and S swivel outlets

Product Information

Standard Information

• Brand: T&S BRASS
• Manufacturer Part Number: 0CS6

Technical Specifications

• Brand: T and S Brass
• MPN: 0CS6
• Model: 0CS6
• Description: 6-Inch swivel cast spout assembly with integrated aerator
• Length: 6 in (152.4 mm)
• Flow Rate: 2.2 GPM (8.33 L/min)
• Aerator Series: Series 2 (B-0199-02)
• Material: Polished chrome plated cast
• Fits: Fits all T and S swivel outlets
• Pressure Range: 20 to 125 psi (1.38 to 8.62 bar)
• Temperature Range: 40 F to 140 F (4.44 C to 60 C)
• Certifications: ASME A112.18.1 / CSA B125.1; NSF/ANSI 372; NSF/ANSI/CAN 61 (Q<=1)
• Recommended Use: Commercial
• Finish: Chrome
