Product Description

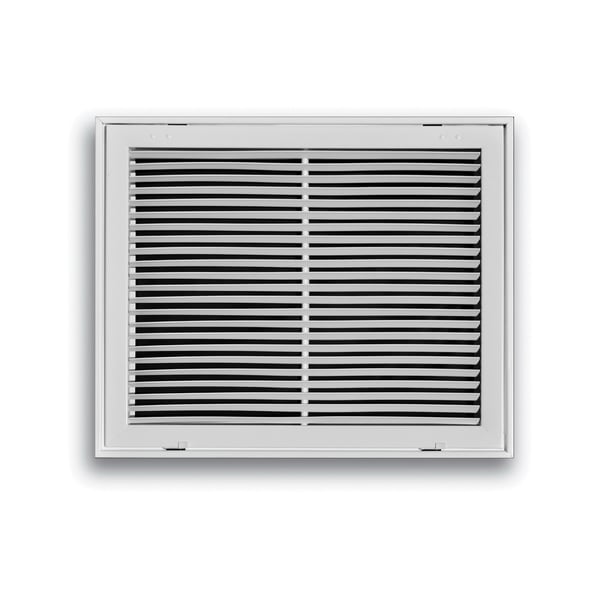

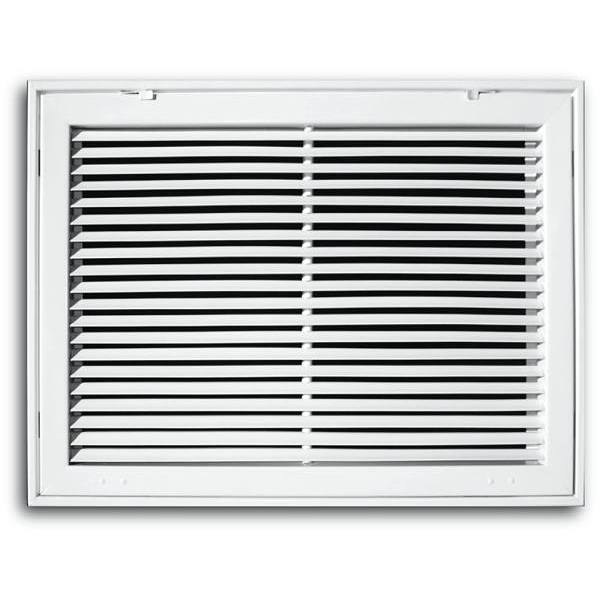

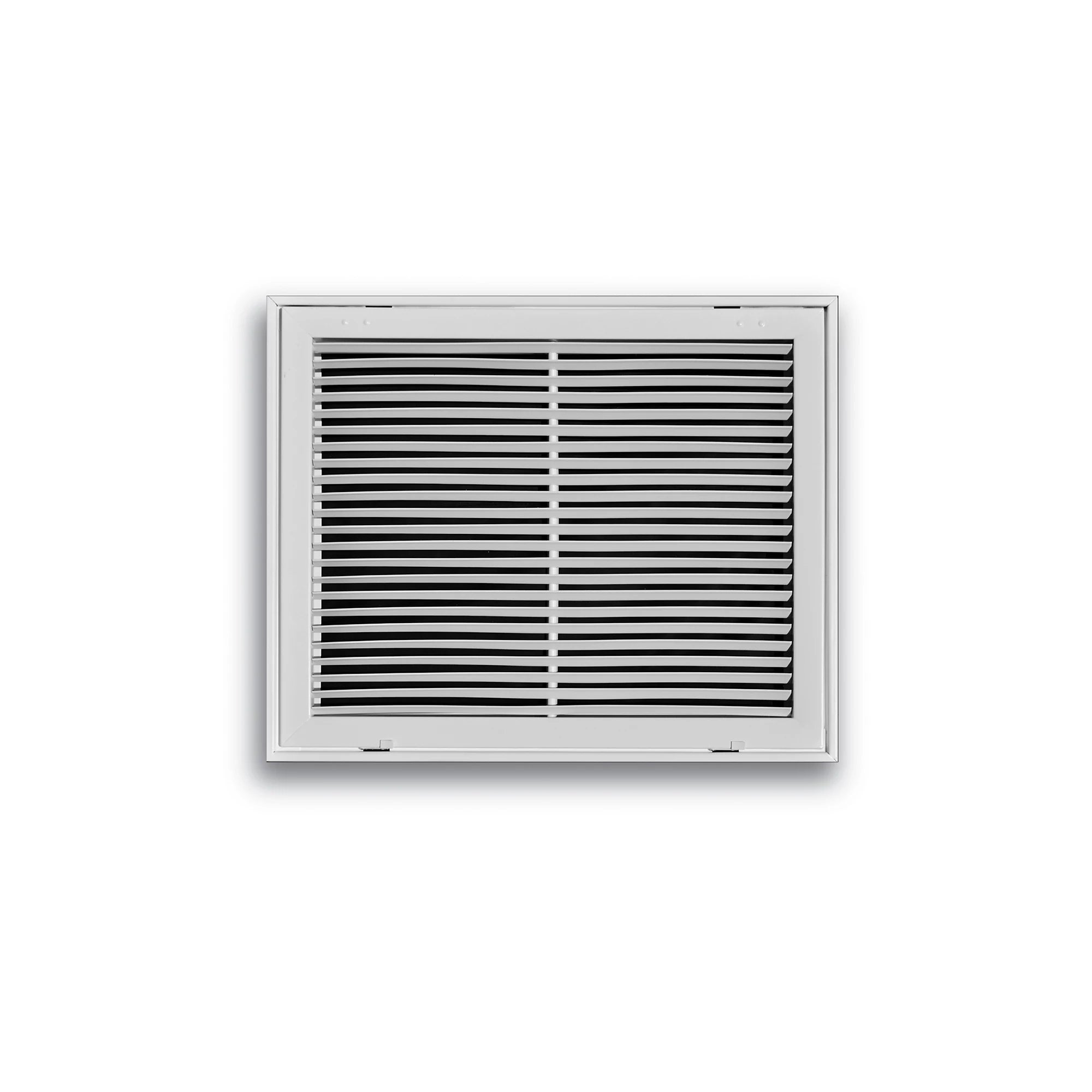

The TRUAIRE 29030X20 is a 290 series 30" x 20" fixed bar return air filter grille. This grille features heavy gauge bars individually set at a 45-degree angle and spaced 3/4" apart. The steel construction ensures a rock-solid build. It allows air to flow freely between your ventilation system and a room.
- Pristine white powder-coat finish
- Individually shrink-wrapped
- Fixed hinge door
Product Highlights
This TRUAIRE return air filter grille provides ruggedness and enhanced appearance. The removable face allows easy access to replace the air filter.
Product Information
Standard Information
-
Brand: TRUAIRE
-
Manufacturer Part Number: 29030X20
-
Country of Origin: Import
Technical Specifications
-
EAN: 0803492291983
-
UPC: 803492291983
-
Size: 30 x 20 in
-
Brand: TRUaire
-
Shape: Rectangle
-
Finish: Pristine White Powder Coated
-
Length: 1-7/8 in
-
Prop 65: No
-
Composition: Steel
-
Filter Size: 1"
-
Fin Spacing: 3/4 in
-
Curved Blade: No
-
Type: Fixed Bar Return Air Filter Grille
-
Material: Steel
-
Bar Spacing: 3/4"
-
Bar Angle: 45 degrees
-
Mounting: Counter-sunk screw holes
-
Series: 290
-
CFM Rating: 3500 cfm
-
Area: 3.89 sq-ft Core, 4.17 sq-ft Duct
-
Overall Depth: 1-7/8 in
-
CFM: 3500 cfm
-
Blade Spacing: 3/4 in
-
Maximum Duct Height: 30 in.
-
Maximum Duct Width: 20 in.
-
Package Quantity: 1
-
Product Type: Return Grille
