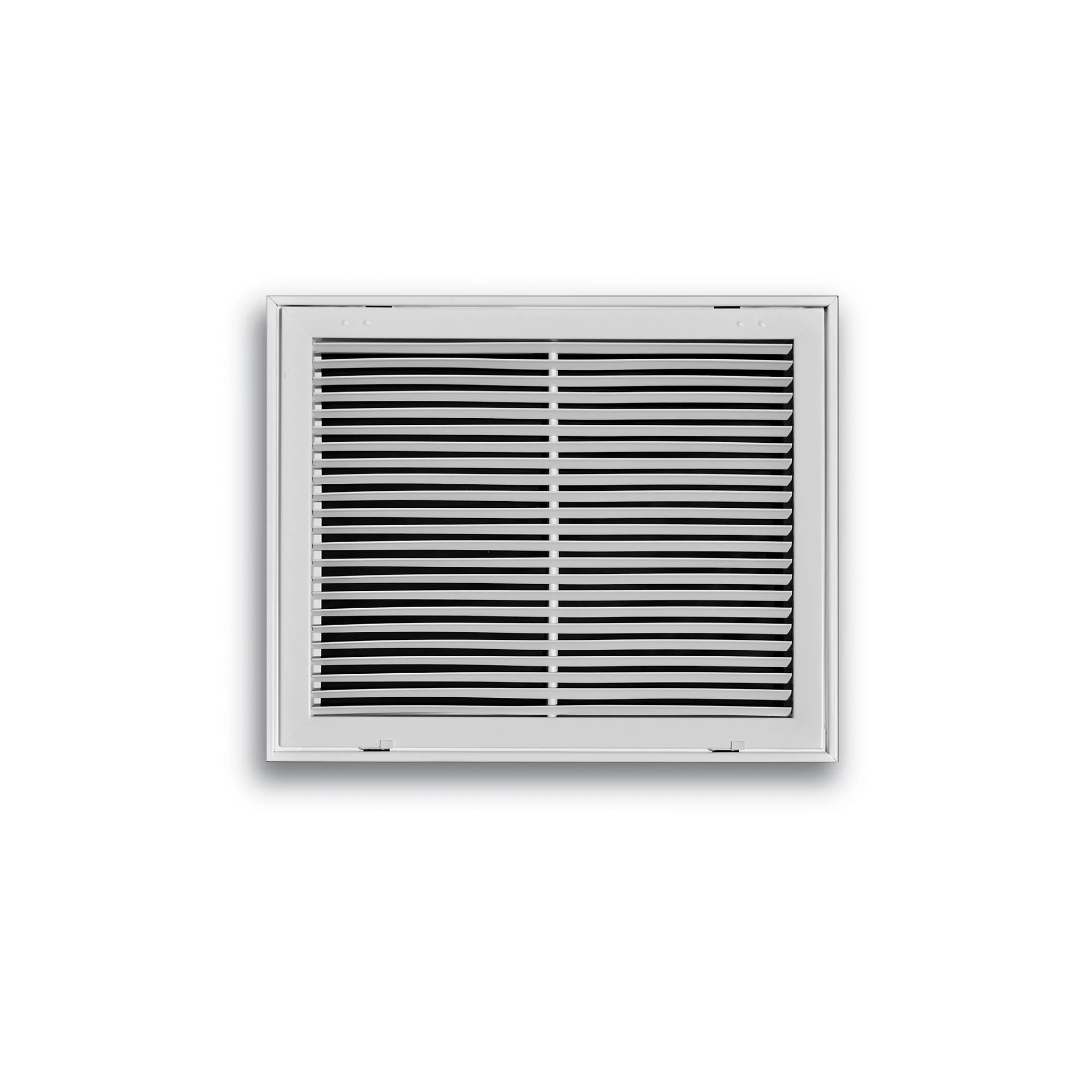

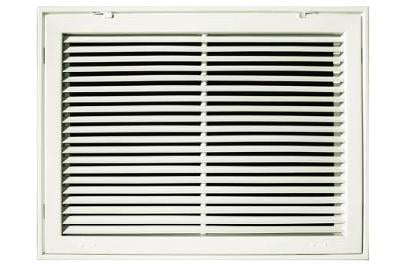

Truaire 29030X14 Fixed Bar Return Air Filter Grille 30 inches x 14 inches

Product Description

The TRUAIRE 29030X14 is a fixed bar return air filter grille, an economical choice for both filter grille and straight return air applications. The heavy gauge bars are individually set at a 45-degree angle and spaced 3/4" apart, providing ruggedness and enhanced appearance. This grille is individually welded for a rock-solid construction.

• Features a pristine white powder-coat finish.
• Individually shrink-wrapped for protection.
• Equipped with a fixed hinge door.

Product Highlights

This fixed bar return air filter grille is constructed from steel with a white powder-coat finish, designed for durability and optimal airflow in ceiling or sidewall applications.

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: 29030X14
• Country of Origin: VN

Technical Specifications

• EAN: 0803492291952
• UPC: 803492291952
• Size: 30" x 14"
• Brand: TRUaire
• Shape: Rectangle
• Finish: Powder Coated
• Length: 2.25
• Prop 65: No
• Deflection: Return
• Composition: Steel
• Filter Size: 1"
• Fin Spacing: 3/4"
• Curved Blade: No
• Application: Ceiling/Sidewall
• Market Type: Residential/Commercial
• Insulated: NO
• Screw Holes: 0
• Industry Type: Commercial, Residential
• GRD Material: Steel
• Face Style: Blades, - Roll Formed Steel
• GRD Location: Ceiling, - Sheet Rock/Hard Lid, Sidewall
• Product Type: Grilles
• Airflow: Return
• Series: 290
• Overall Depth: 1-7/8 in
• Overall Width: 32-7/8 in
• Flow Rate: 2406 cfm
• Domestic/Import: Import
• Alternate Part Number 1: 290 30X14
• UNSPSC: 40101600
• Angle: 45 degree angle
