Product Description

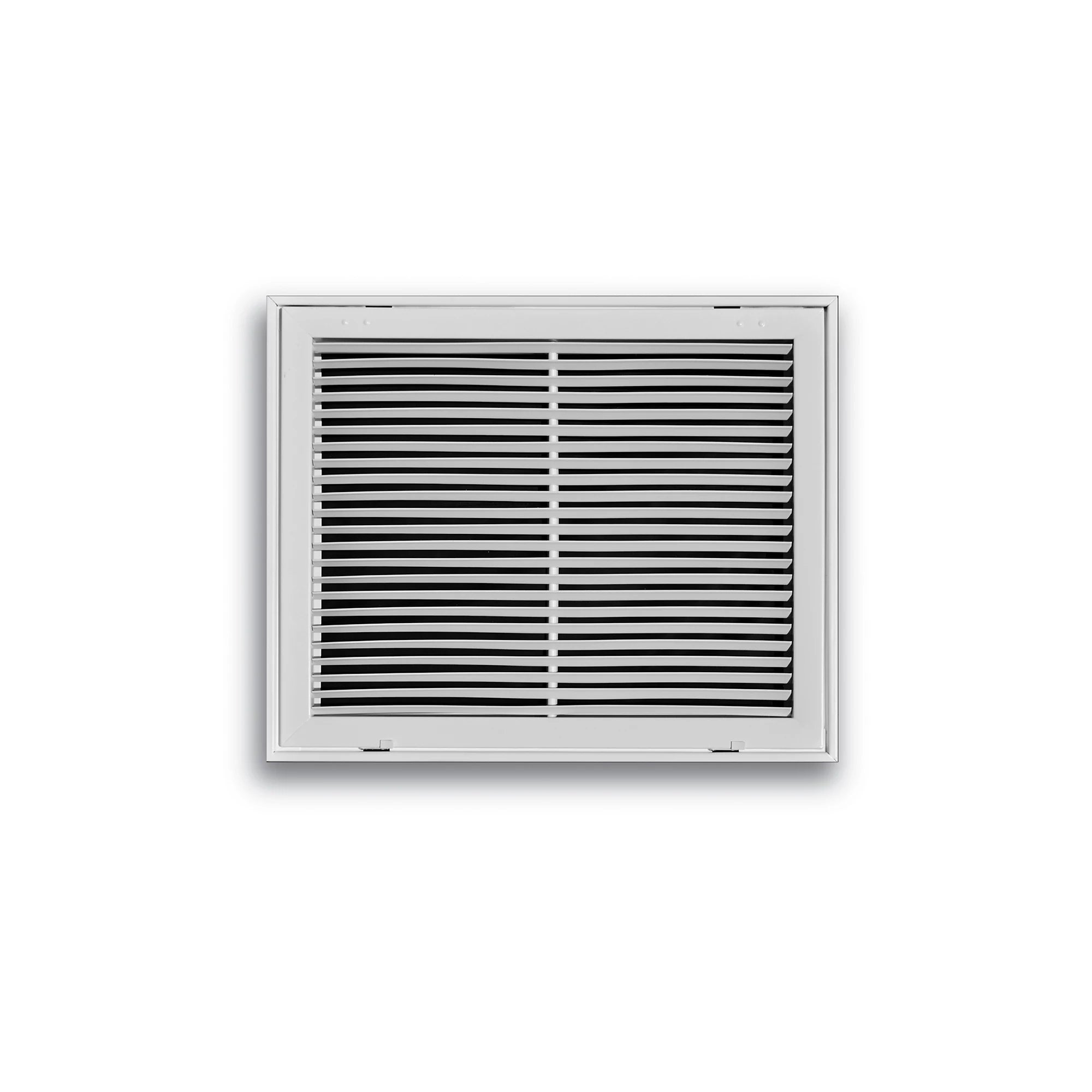

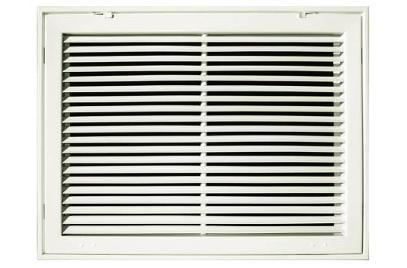

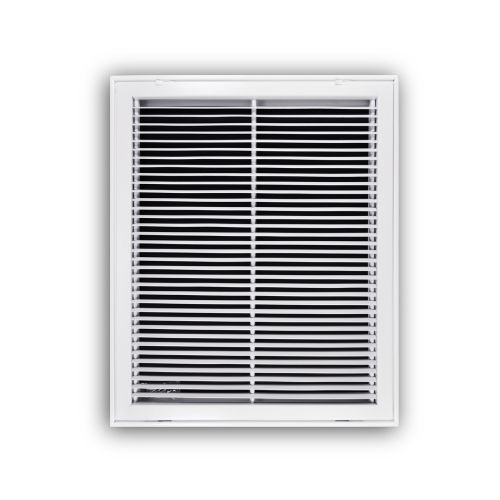

The TRUAIRE 29020X25 is a 20" x 25" white steel fixed bar return air filter grille. The fixed bar models provide ruggedness and enhanced appearance. Each heavy gauge bar is individually set at a 45-degree angle and spaced 3/4" apart, providing a rock-solid and welded construction.
- Pristine white powder-coat finish
- Individually shrink-wrapped
- Counter-sunk screw holes
- Fixed hinge door
Product Highlights
This TRUAIRE grille features a fixed hinge door and a pristine white powder-coat finish. Its robust steel construction ensures durability and an enhanced aesthetic.
Product Information
Standard Information
-
Brand: TRUAIRE
-
Manufacturer Part Number: 29020X25
-
Country of Origin: VIET NAM
Technical Specifications
-
EAN: 0803492291686
-
UPC: 803492291686
-
Size: 20" x 25"
-
Brand: TRUaire
-
Shape: Rectangle
-
Finish: Powder Coated
-
Length: 2.25
-
Prop 65: No
-
Deflection: Return
-
Fin Degree: 15°
-
Composition: Steel
-
Filter Size: 1"
-
Fin Spacing: 3/4"
-
Curved Blade: No
-
Filter Thickness: 1"
-
Series: 290 Series
-
Area: 3.22 sq-ft Core, 3.47 sq-ft Duct
-
Material: Steel
-
Application: Ceiling/Sidewall
-
Airflow: Return
