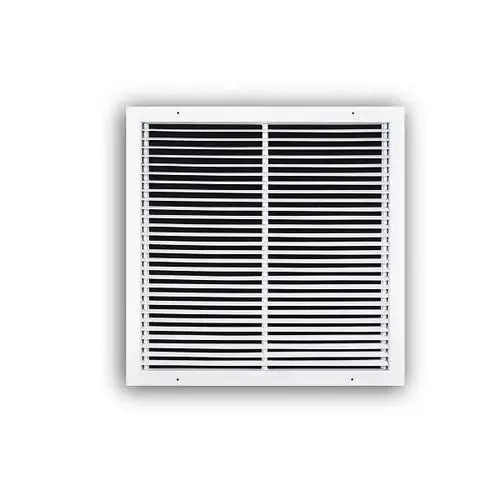

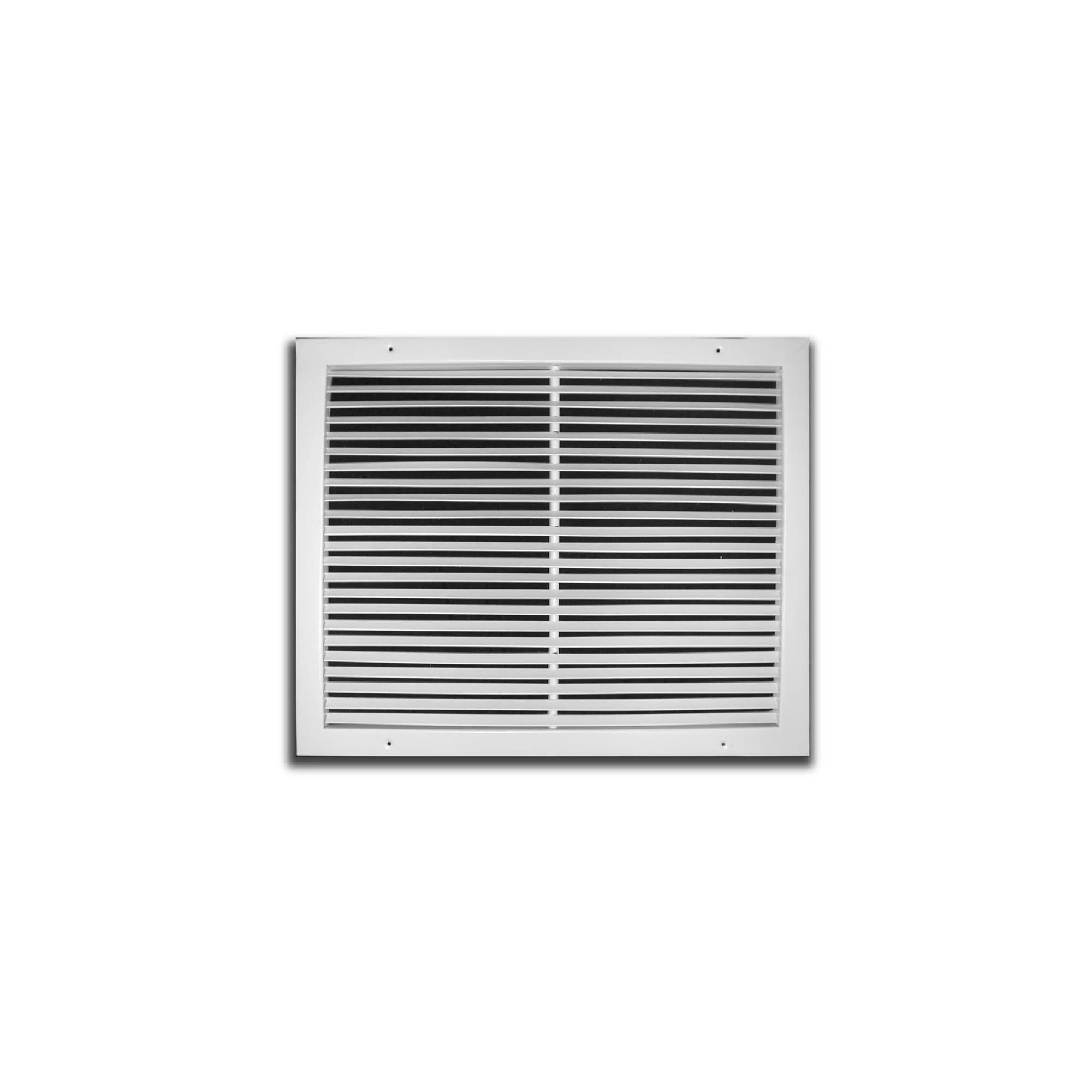

Truaire 27020X20 20 inches x 20 inches Fixed Bar Return Air Grille

Product Description

The TRUAIRE 27020X20 is a 20" x 20" fixed bar return air grille. These fixed bar models provide ruggedness and enhanced appearance. Each heavy gauge steel bar is individually set at a 45-degree angle and spaced 3/4" apart. This grille features a pristine white powder-coat finish and countersunk screw holes.

• Pristine white Powder-coat finish
• Individually shrink-wrapped
• Counter-sunk screw holes (Model 270)
• Fixed hinge door (Model 290)

Product Highlights

Durable steel construction with fixed bars set at 45 degrees, ideal for sidewall or ceiling openings.

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: 27020X20
• Country of Origin: VN

Technical Specifications

• EAN: 0803492271671
• UOM: EA
• UPC: 803492271671
• Size: 20" x 20"
• Brand: TRUaire
• Shape: Square
• Width: 21.75
• Finish: Powder Coated
• Height: 21.75
• Length: 0.8125
• Prop 65: No
• Adjustable: No
• Deflection: 1-Way
• Composition: Steel
• Fin Spacing: 3/4"
• Grille Type: Return Air
• Curved Blade: No
• Package Width: 21.75
• Package Height: 21.75
• Package Length: 1
• Package Weight: 5.85
• Application: Ceiling/Sidewall
• Market Type: Residential/Commercial
• Insulated: NO
• Industry Type: Commercial, Residential
• Face Style: Blades, - Bar Type, Fixed
• Airflow: Return
• Type: Sidewall/Ceiling Return Grilles
• Material: Steel
• Blade Spacing: 3/4 in
• Deflection Angle: 45 deg
• Domestic/Import: Import
• Overall Depth: 13/16 in
• Series: 270
• Manufacturer: RectorSeal
• Manufacturer Part Number: 27020X20
• Package Quantity: 1
• UL Listed: No
• Mounting Location: Ceiling, Wall
• ADA Compliant: No
• Bar Spacing: 3/4 in.
• Maximum Duct Height: 20
• Product Type: Return Grille
• MADE IN THE USA: No
• Assembled Product Depth: .81
• Assembled Product Height: 21.75
• Assembled Product Width: 21.75
• GSA Approved: No
• AbilityOne: No
• Maximum Duct Width: 20
• TAA/BAA Compliant: Yes
