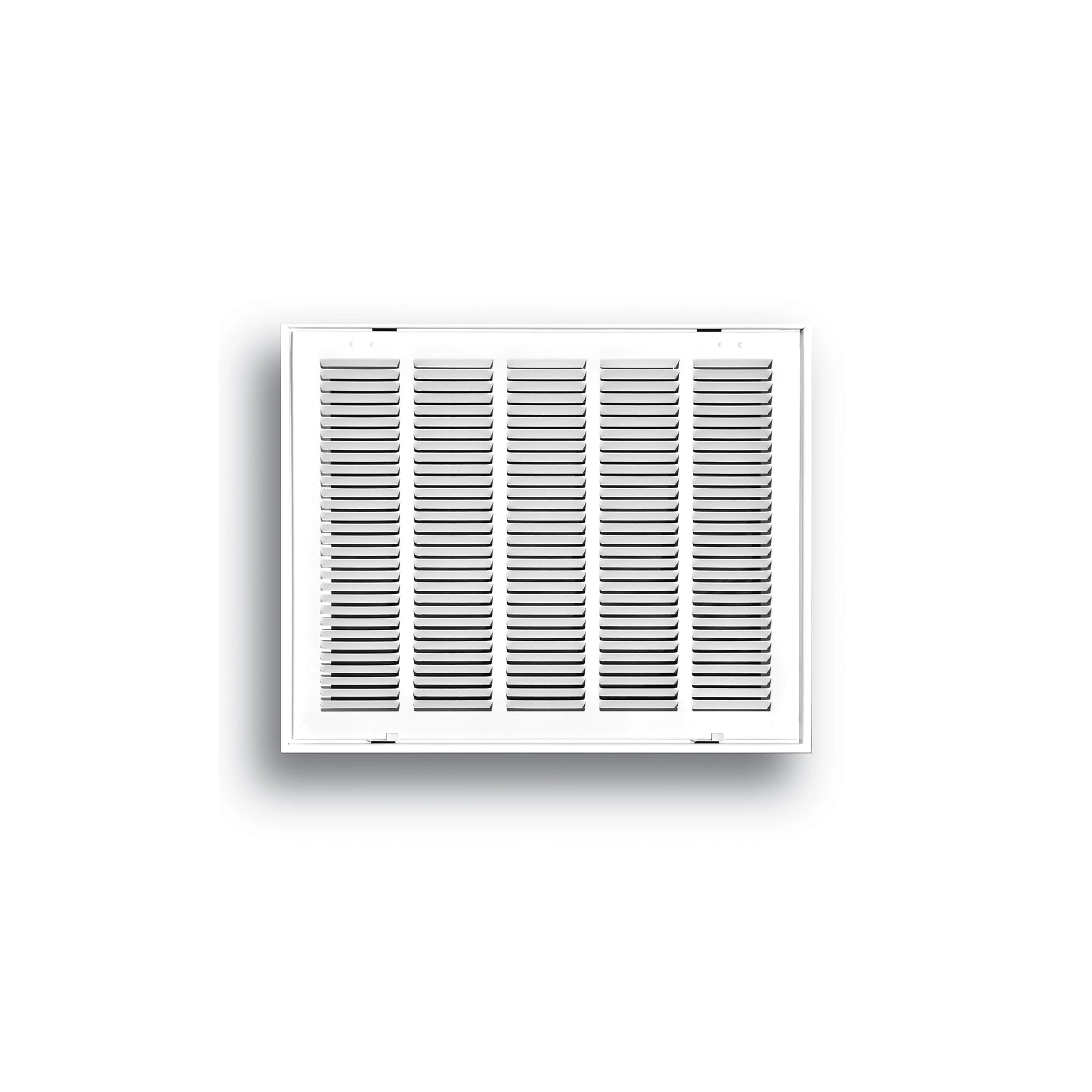

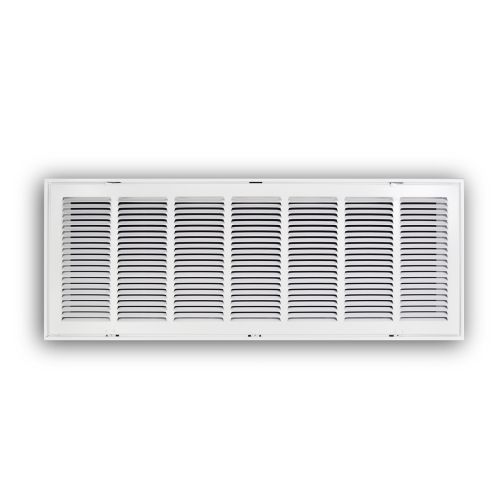

Truaire 190RF36X12 Return Air Filter Grille 36 inches x 12 inches

Product Description

The TRUAIRE 190RF36X12 is a return air filter grille designed for sidewall or ceiling openings. Constructed to ensure maximum airflow, this grille features a removable face and is suitable for residential applications. It has a pristine white powder-coat finish and is made of steel. Designed to accept 1" filters, this grille improves home circulation.

• Features a removable face or fixed hinge design.
• Available for 1", 2", and 4" filters.
• Pristine white powder-coat finish.

Product Highlights

This steel return air filter grille ensures maximum airflow and complements home decor. It features a removable face for easy filter access.

Product Information

Standard Information

• Brand: TRUAIRE
• Manufacturer Part Number: 190RF36X12
• Country of Origin: VN

Technical Specifications

• UOM: EA
• UPC: 803492209483
• Size: 36" x 12"
• Brand: TRUaire
• Shape: Rectangle
• Width: 38.875
• Finish: Powder Coated
• Height: 14.875
• Length: 1.875
• Prop 65: No
• Deflection: Return
• Composition: Steel
• Filter Size: 1"
• Fin Spacing: 1/2"
• Curved Blade: No
• Package Width: 39
• Package Height: 15
• Package Length: 1.75
• Filter Thickness: 1"
• Cubic Measurement: 0.6275
• Dimensional Weight: 8
• Application: Ceiling/Sidewall
• Market Type: Residential
• Insulated: NO
• Screw Holes: 0
• Industry Type: Residential
• GRD Material: Steel
• Features: Rectangular
• Face Style: Louvered, - Formed
• Airflow: Return
• Type: Sidewall/Ceiling Return Grilles
• Blade Spacing: 1/2 in
• Domestic/Import: Import
• Overall Depth: 1-3/4 in
• Overall Width: 38-7/8 in
• Series: 190RF
• Alternate Part Number 1: 190RF 36X12
• Manufacturer: RectorSeal
• Origin: Import
• Main function: Grille
• Product series / family name: HVAC > Grilles / Registers / Diffusers (GRD) > Air return
• Sub-range name: 190RF series
• Functions: Filter grille
• Design: removable face, stamped face, 1-way blades, bottom-side hinged, air return function, powder coat finish, for ceiling / sidewall applications, for D1" filter, for residential applications
• Material: Steel frame / blades
• Order code / Manufacturer SKU: 190RF36X12
• Manufacturer product status: Commercialized
