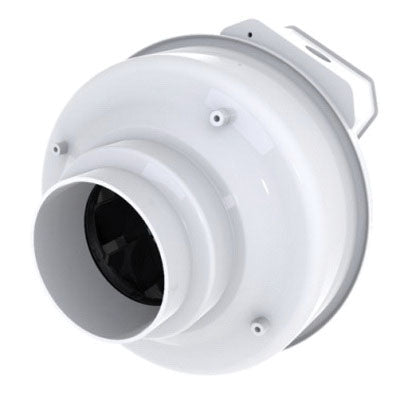

SYSTEMAIR 411331A Centrifugal In-Line Fan 120V 80W

Product Description

The SYSTEMAIR 411331A is a centrifugal in-line fan suitable for duct mounting. It runs on 120 V at 60 Hz with an energy consumption of 80 W and a current draw of 0.72 A. This fan has a Class B motor equipped with thermal overload protection and features ball bearings for smooth operation.

• Airflow capacity of 167 cfm at 2900 rpm
• Housing made from UV-resistant, flame-retardant thermoplastic
• Pre-wired with a mounting bracket for easy installation

Product Highlights

The fan is designed for consistent airflow and durability in various installations.

Product Information

Standard Information

• Brand: SYSTEMAIR
• MPN: 411331A

Technical Specifications

• Amperage Rating: 0.72 A
• Input Voltage: 120 V
• Frequency Rating: 60 Hz
• Power Rating: 80 W
• Speed Rating: 2900 rpm
• Flow Rate: 167 cfm
• Duct Size: 4 in
• Housing Diameter: 9.5 in
• Inlet Size: 4 in
• Outlet Size: 4 in Dia
• Motor Type: Class B
• Bearing Type: Ball
• Temperature Rating: 140 deg F
• Material: Plastic
• Dimensions: 9.625 in L x 9.625 in H
