SYSTEMAIR 40413 FG 12XL Inline Centrifugal Duct Fan 120 VAC 12 Replacement MPN

Product Description

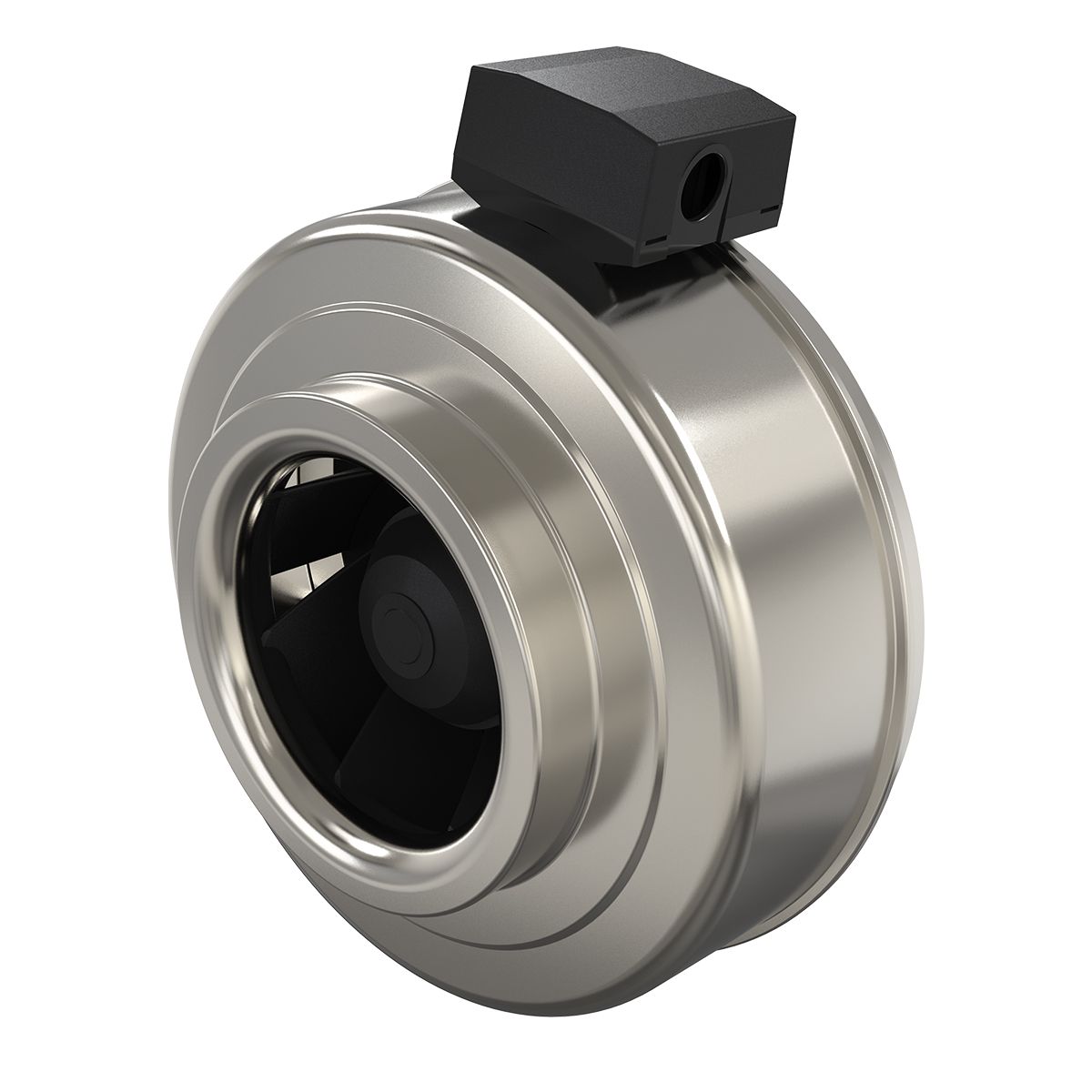

The Systemair FG 12XL (MPN: 40413) is a reliable inline centrifugal duct fan suitable for both residential and commercial needs. This fan has a sturdy galvanized steel housing that supports efficient airflow. Its prewired terminal box simplifies electrical connections. The fan features a backward curved impeller powered by an Ebm-Papst motor, designed for speed control.

• Airtight galvanized steel housing ensuring durability.
• Prewired setup for easy installation.
• Permanently lubricated bearings for reduced maintenance.

Product Highlights

This duct fan is well-suited for various duct applications and is capable of high performance.

Product Information

Standard Information

• Brand: SYSTEMAIR
• MPN: 40413

Technical Specifications

• CFM: 940
• Input Voltage: 120 VAC
• Electrical Connection: Prewired Terminal Box
• Full Load Amps: 3.01
• Phase: Single
• Frequency: 60 Hz
• Maximum Amps: 3.01
• Housing Dimensions: 16 inches x 16 inches x 10.5 inches
• Housing Material: Galvanized Steel
• Bearing Type: Sealed
• Duct Diameter: 12 inches
• Maximum Ambient Temperature: 140°F (60°C)
• Power Consumption: 301 W
• Agency Compliance: Energy Star, HVI, AMCA, UL
• Residential Application: Yes
• Commercial Application: Yes
