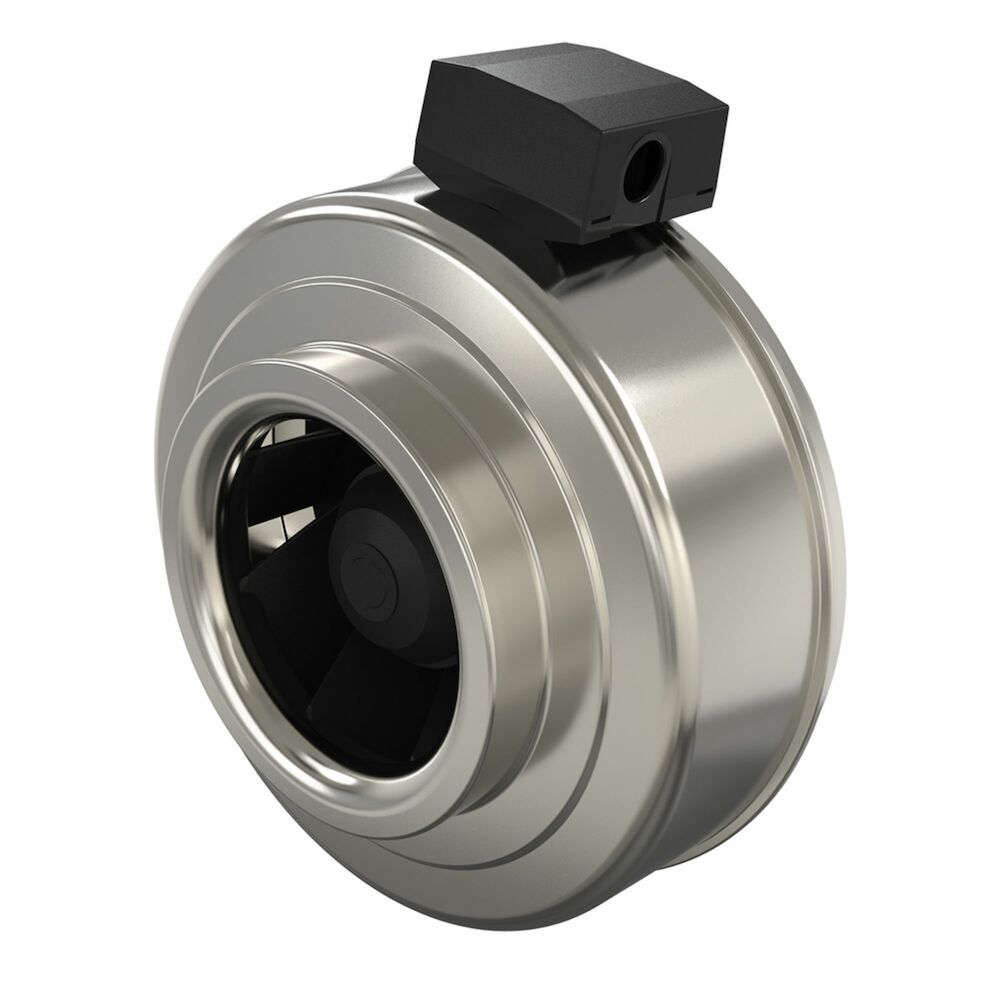

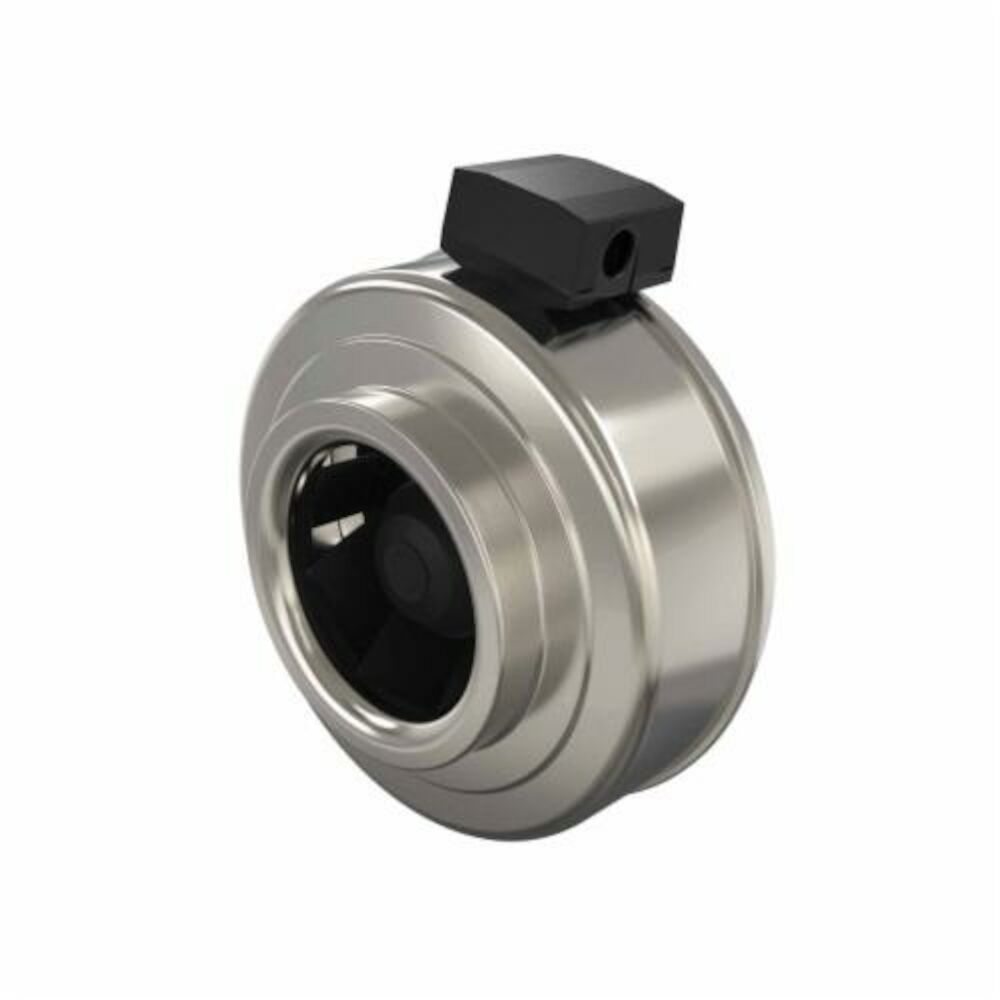

Systemair 40408 FG 8 Centrifugal Inline Fan

Product Description

The Systemair FG 8 Centrifugal Inline Fan, identified by MPN 40408, is engineered for duct installation in both indoor and outdoor environments. This fan features a robust two-piece galvanized housing designed with a folded seam closure to ensure an airtight seal. It utilizes backward-curved impeller blades paired with an external rotor motor to effectively manage heat dissipation, enhancing the unit's longevity. The motor is equipped with impedance protection, which safeguards against overheating and allows for operation with a solid-state speed controller.

• Speed-controllable for versatile airflow management.
• Built-in thermal overload protection with automatic reset for enhanced safety.
• Installable in any orientation, suitable for outdoor applications.

Product Highlights

Product Information

Standard Information

• Brand: Systemair
• MPN: 40408

Technical Specifications

• Voltage: 120 V
• Frequency: 60 Hz
• Phase: 1
• Input Power (P1): 116 W
• Current: 0.99 A
• Max. Airflow: 462 cfm
• Fan Impeller Speed: 2618 r.p.m.
• Max. Temperature of Transported Air: 140 °F
• Insulation Class: B
• Enclosure Class, Motor: IP44
• Working Air Flow: 231 cfm
• Working Static Pressure: 0.842 in.wg.
