Systemair 40403A In-Line Exhaust Fan

Product Description

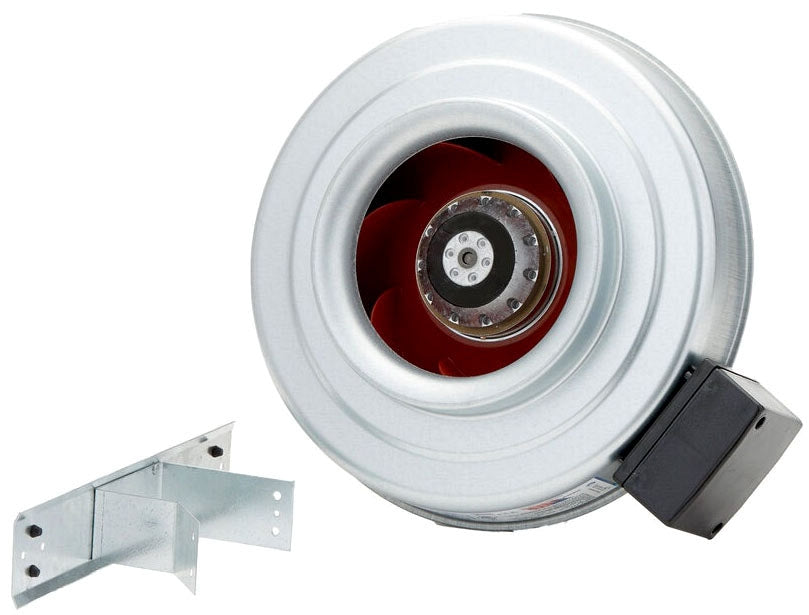

The Systemair FG4XL 40403 is an in-line exhaust fan that is designed for easy duct mounting. It features a motor that can be controlled for speed and includes built-in thermal overload protection with automatic reset. This fan can be installed in any position, including outdoors, and is designed to be maintenance-free. It comes with a mounting bracket and all necessary hardware for a straightforward installation. Constructed with a two-piece stamped galvanized housing, it offers an airtight seal, making it suitable for outdoor and wet room applications.

• Speed-controllable motor
• Thermal overload protection with automatic reset
• Versatile installation options, including outdoors

Product Highlights

This fan is ideal for applications requiring efficient airflow management, providing reliable performance in both residential and commercial settings.

Product Information

Standard Information

• Brand: Systemair
• MPN: 40403A

Technical Specifications

• Voltage: 120 V
• Frequency: 60 Hz
• Phase: 1 ~
• Power: 71.9 W
• Max. airflow: 173 cfm
• Fan impeller speed: 2559 r.p.m.
• Max. temperature of transported air: 140 °F
• Insulation class, motor: B
• Enclosure class, motor: 44 IP
